Door openings
Frequent access increases warm air and moisture entering the freezer room.
Frozen Food Refrigeration Solutions
Cold Room Manufacturer for Frozen Food
Uniref designs and installs cold rooms, freezer rooms, blast freezers and cold storage systems for frozen food manufacturers, processors, distributors and cold chain operators across India. As a cold room manufacturer for frozen food, we engineer each system around the product, storage condition, loading pattern and operating environment.
Room temperature
+32°C
The visual shows the room moving toward a typical frozen holding condition, while the final setpoint is confirmed from the product requirement.
The Frozen Storage Challenge
Frozen Food Needs More Than Just a Cold Room
Frozen food storage must maintain stable low temperature conditions through long operating hours, changing pallet loads and repeated door openings. Receiving, storage and dispatch also introduce warm air, moisture, frost and airflow challenges that the refrigeration system must manage.
01
Warm air entering
Every door opening allows warmer external air to enter the room. The refrigeration system must handle this additional heat load without compromising the required storage condition.
02
Temperature rise
Product movement, loading activity and warm air infiltration can raise room temperature. Equipment selection must consider these operating conditions rather than only the empty room volume.
03
Moisture and frost risk
Warm humid air can release moisture when it enters a freezer room. This moisture may form frost on coils, doors, floors and other cold surfaces.
04
Cooling system compensating
The refrigeration system responds to changing loads by removing heat from the room. Correct evaporator, condensing unit, compressor and defrost selection helps the system operate under actual frozen food handling conditions.
Pallet face
Closely packed products can restrict cold air from reaching every pallet surface.
Coil frost
Frost on the evaporator can reduce airflow and cooling performance when defrost is not properly planned.
Floor ice
Moisture near entrances and drains can freeze in low temperature areas and requires suitable floor and drainage design.
Rooms for Frozen Food Operations
Choose the Right Refrigeration System for Each Duty
Frozen food facilities can require different rooms for holding, freezing, staging and distribution. Uniref configures each room according to its actual refrigeration duty instead of treating every application as the same cold space.

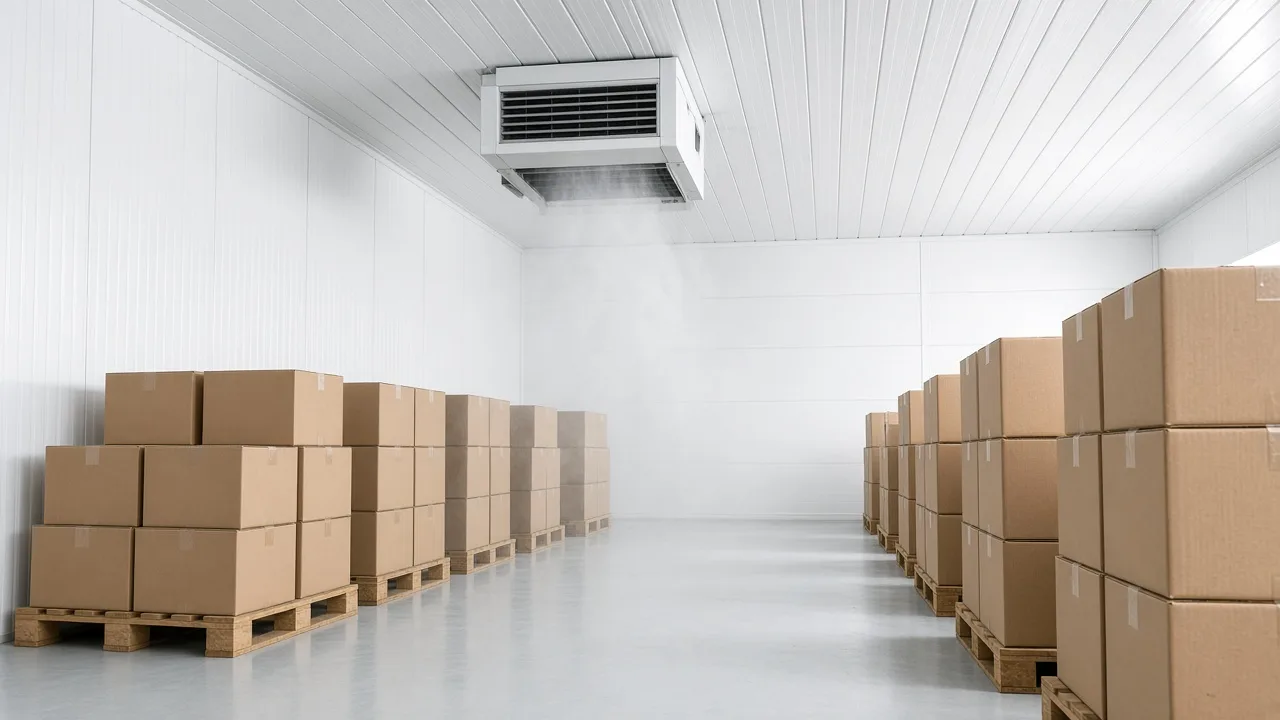

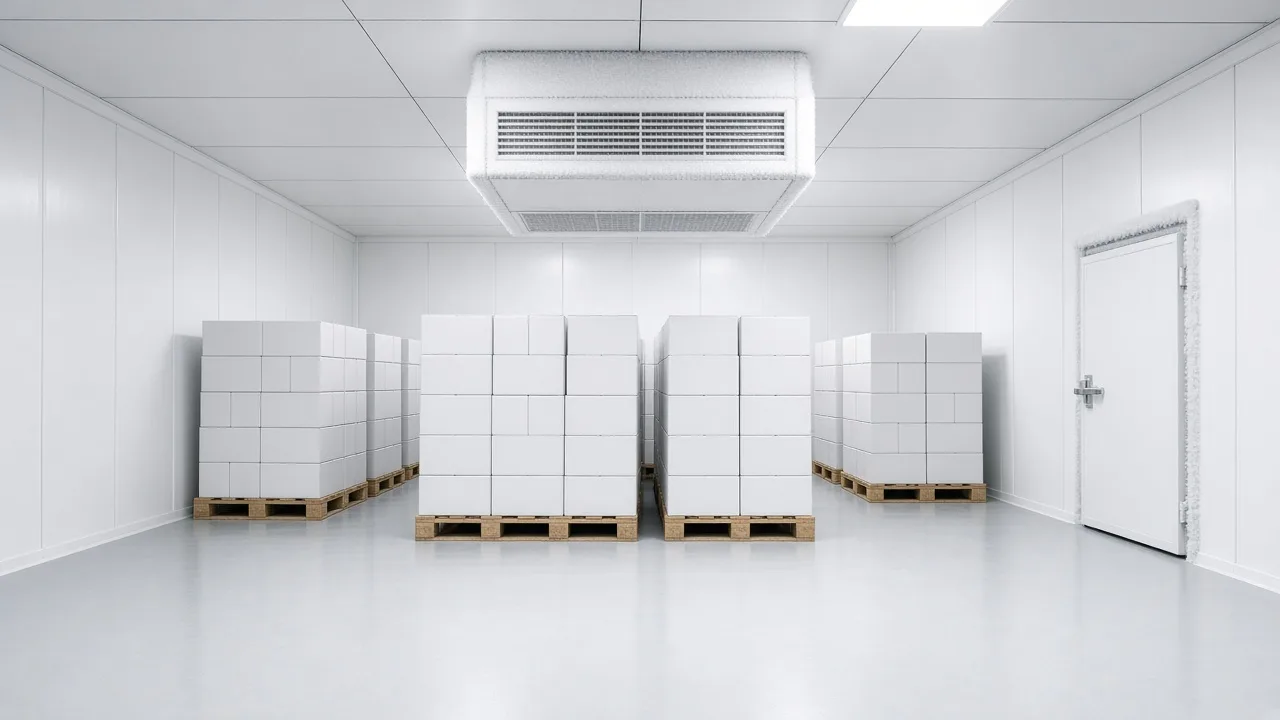

Freezer Rooms
- Typical use
- Long term holding of products that are already frozen and need stable low temperature storage.
- Temperature
- Frozen food holding is commonly near minus 18°C or lower. Many freezer rooms operate within a typical design band of minus 18°C to minus 25°C, subject to the product specification.
- Suitable operation
- Suitable for manufacturers, processors, distributors, warehouses and exporters storing frozen products.

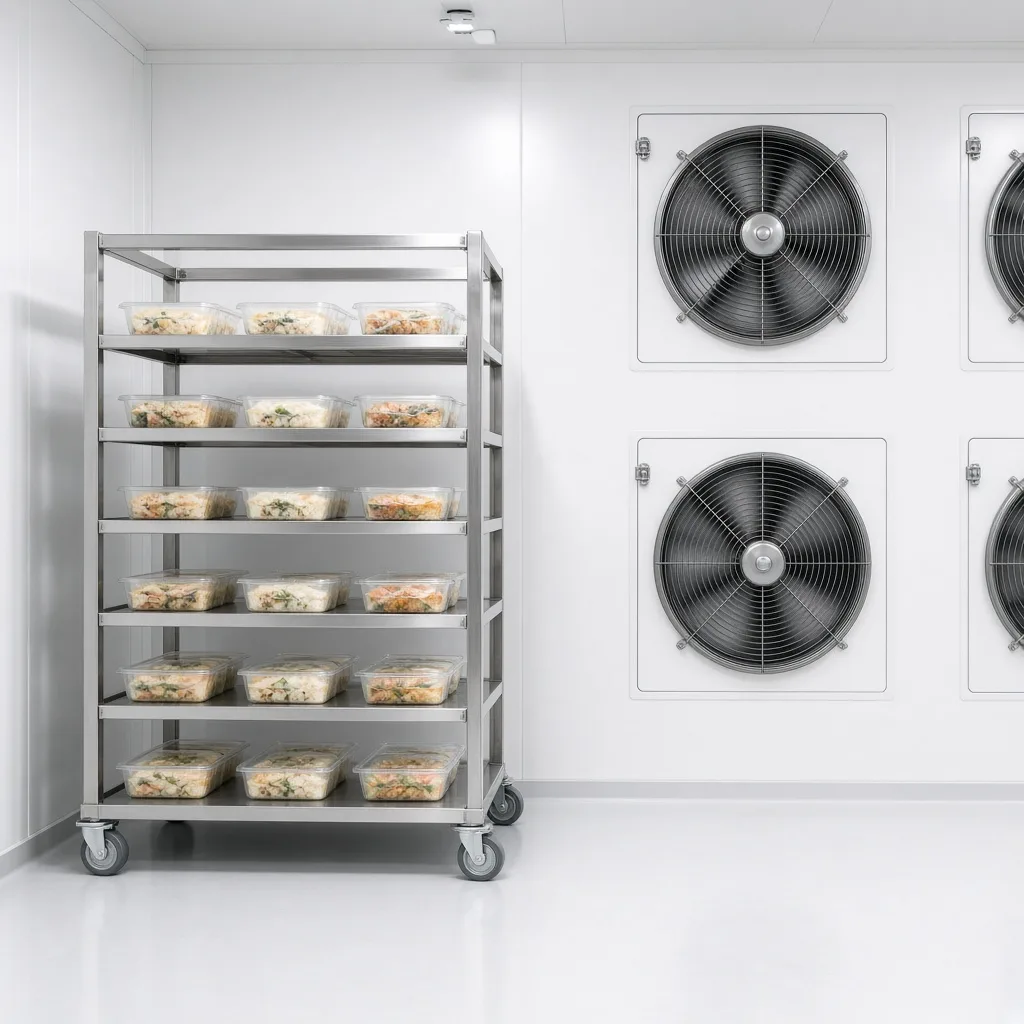

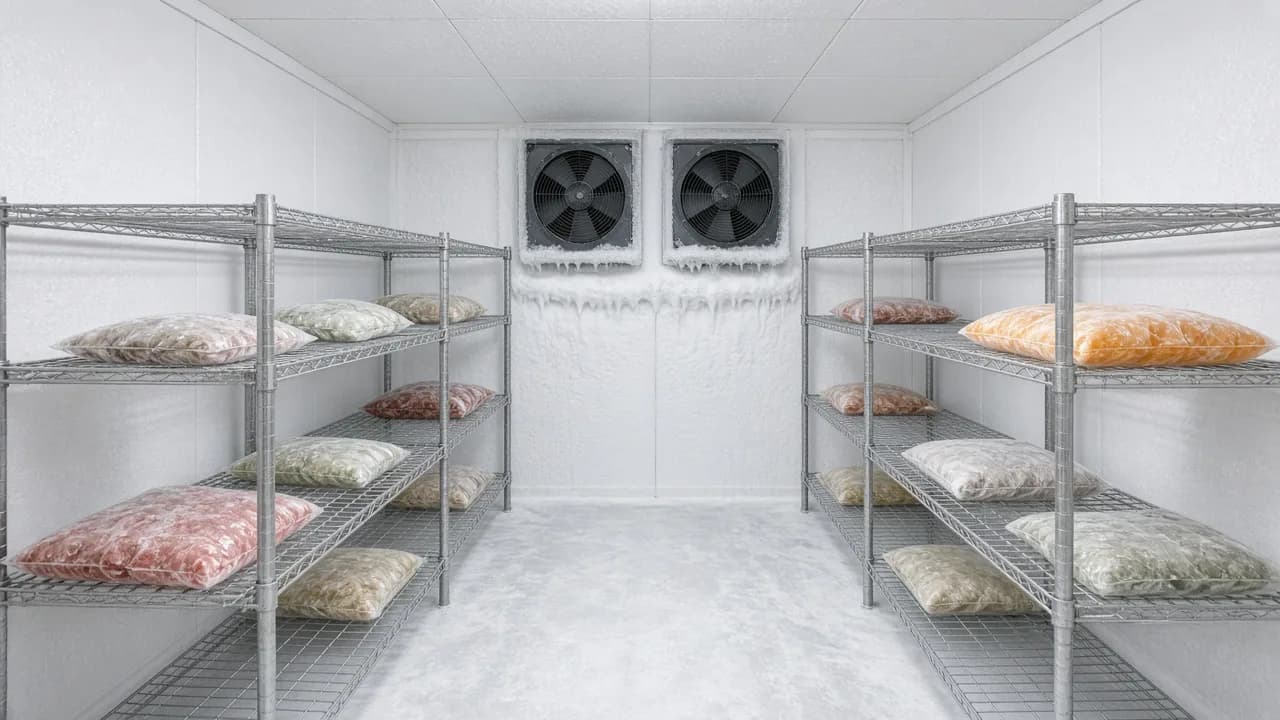

Blast Freezers
- Typical use
- Rapid removal of product heat before frozen storage.
- Temperature
- Blast freezing conditions depend on the product, thickness, packaging and batch. The blast duty must be calculated separately from the later holding condition.
- Suitable operation
- Suitable for facilities that freeze prepared food, vegetables, meat, seafood, snacks or other products before storage.

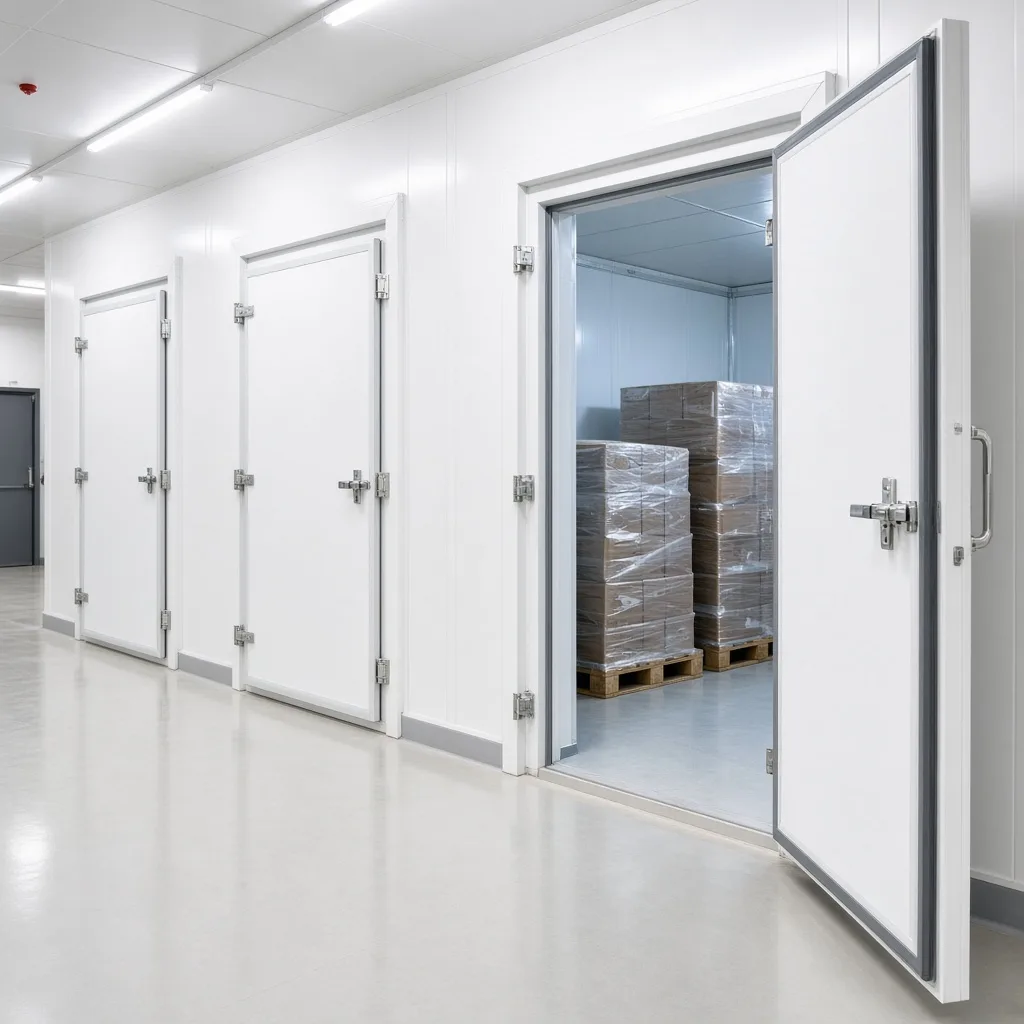

Multi Temperature Cold Rooms
- Typical use
- Facilities that handle products requiring separate chilled and frozen zones within one operation.
- Temperature
- Each chamber receives its own design condition according to the product stored inside it. A chiller specification is not reused for a freezer chamber.
- Suitable operation
- Suitable for food processors, distribution centres and businesses handling several product categories.

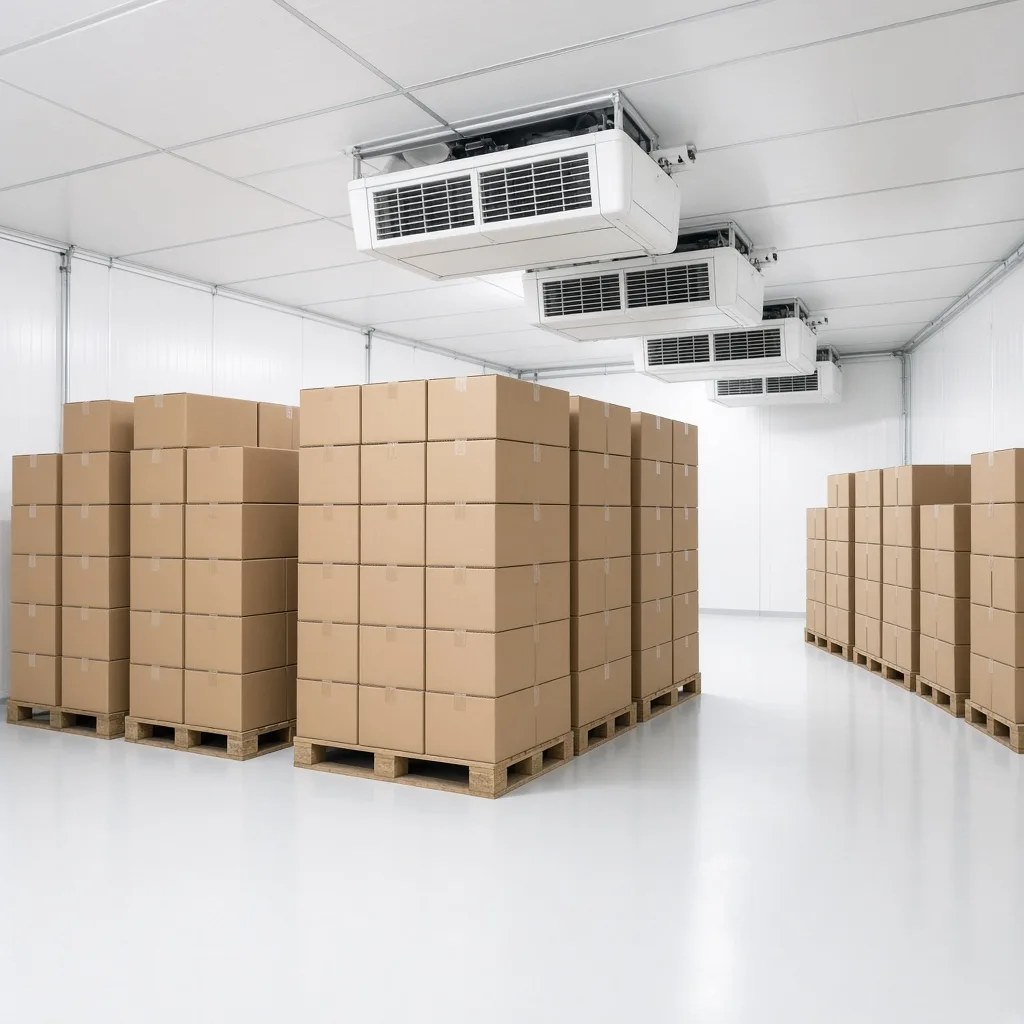

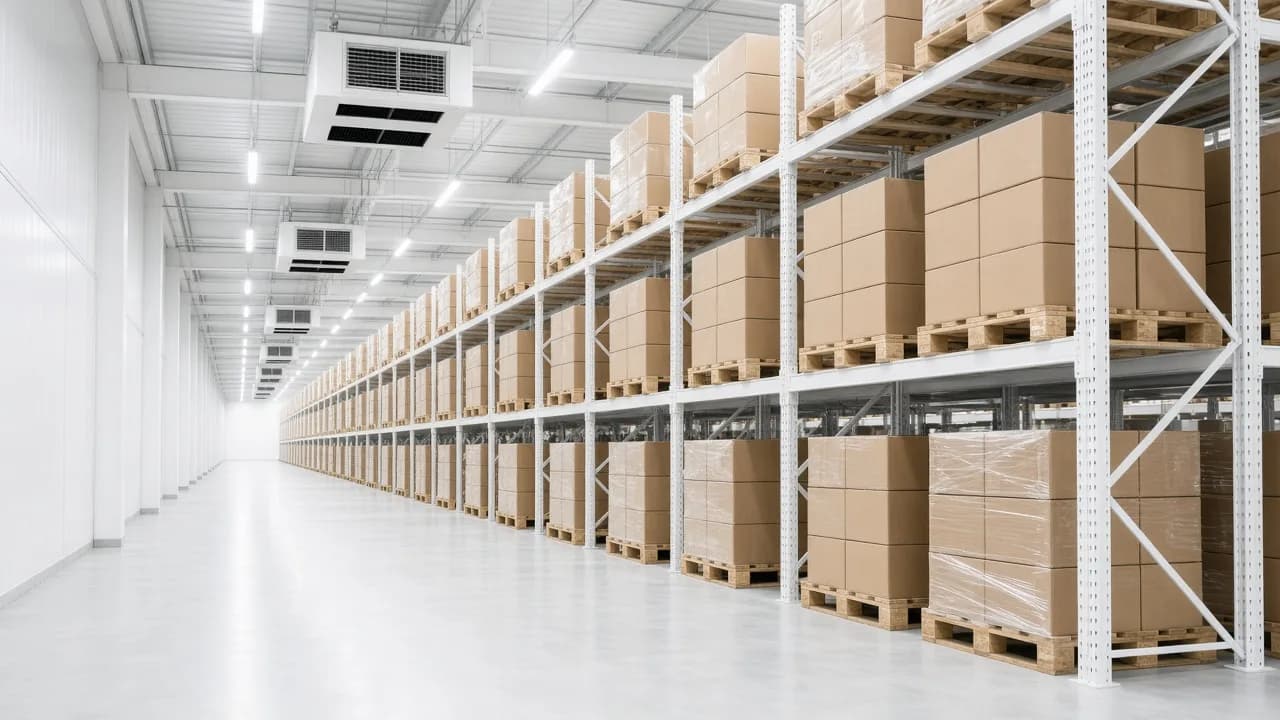

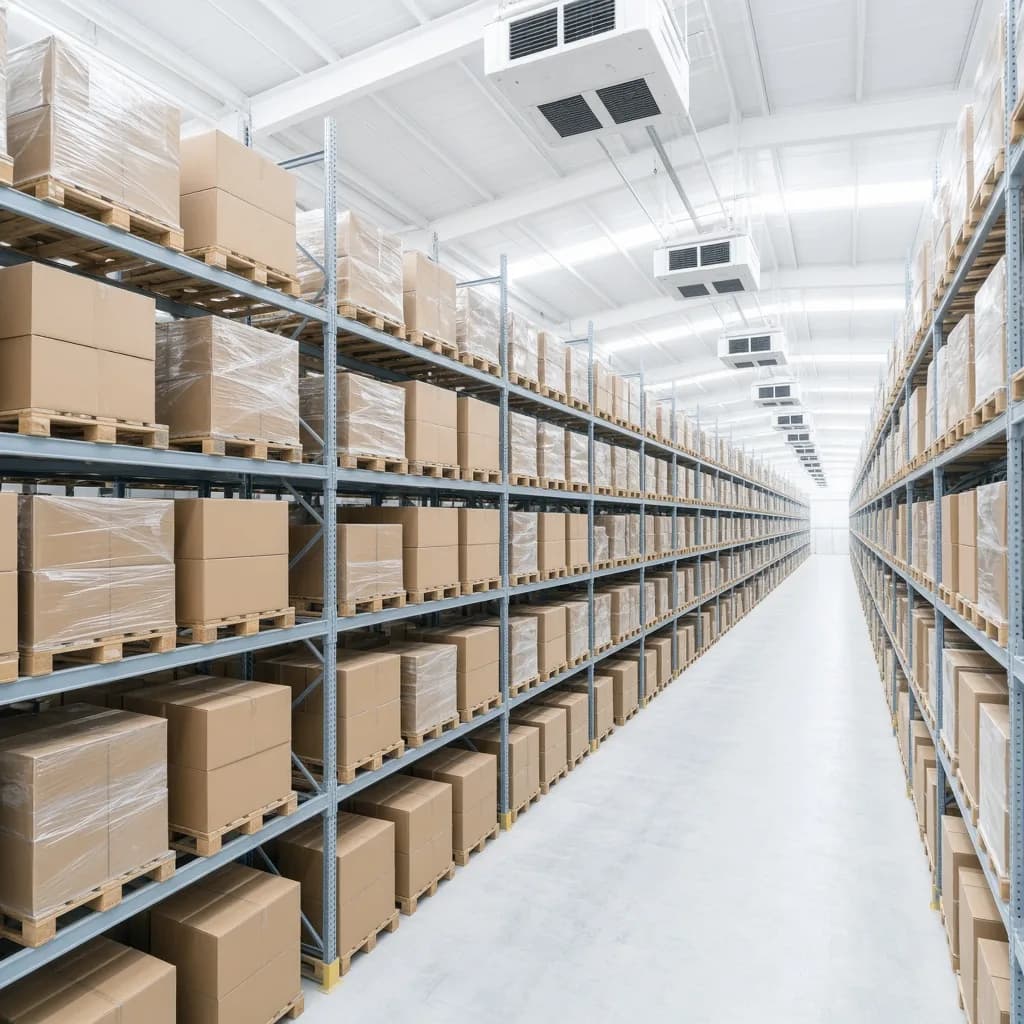

Large Cold Storage Warehouses
- Typical use
- High volume frozen food storage with pallet racking, regular material movement and frequent dispatch activity.
- Temperature
- The storage condition is selected from the product requirement and operational load. Airflow planning becomes particularly important where large pallet volumes are involved.
- Suitable operation
- Suitable for frozen food distributors, exporters, logistics operators and large processing facilities.

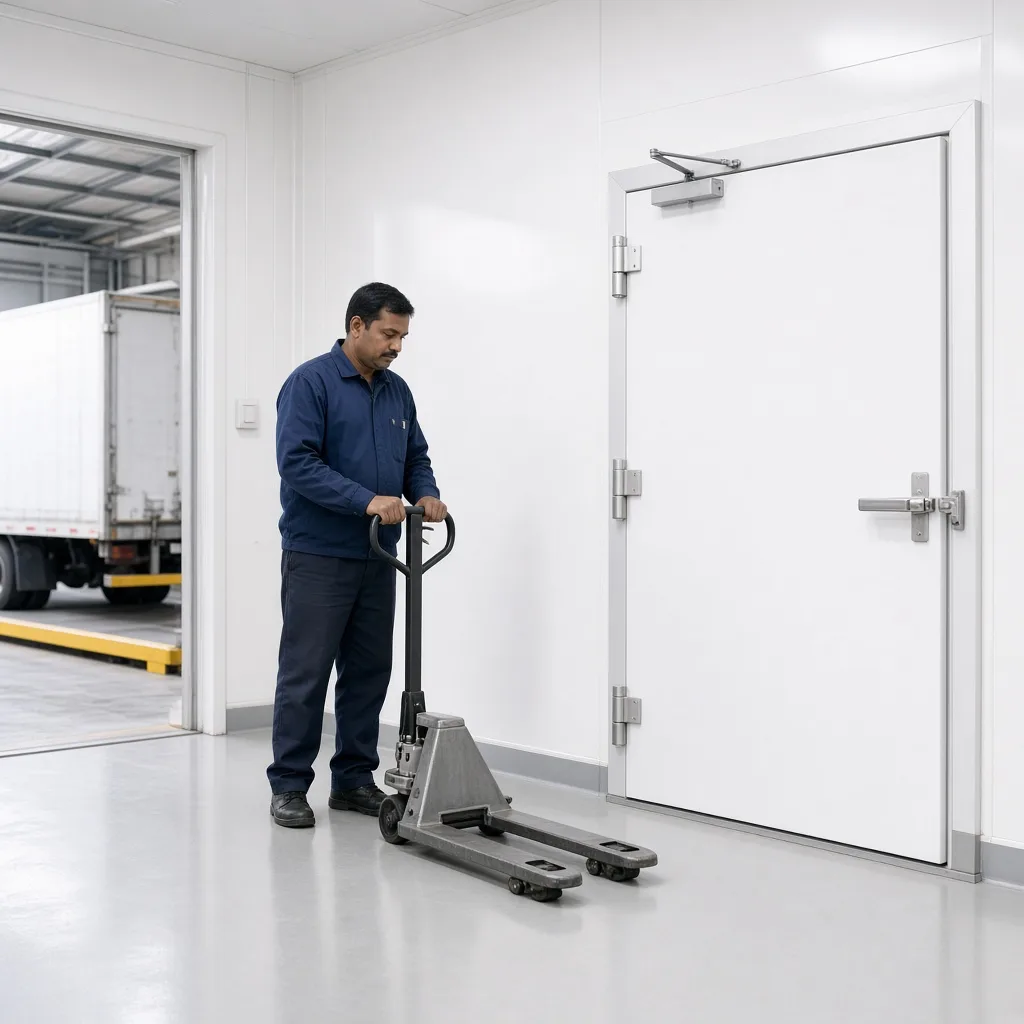

Ante Rooms
- Typical use
- A controlled buffer area between a loading dock, working area and freezer room.
- Temperature
- An ante room is not a second frozen storage temperature. Its purpose is to reduce direct exposure between the freezer and warmer surrounding spaces.
- Suitable operation
- Suitable for facilities with regular receiving, picking and dispatch activity.
From Processing to Dispatch
Cooling at Every Stage of the Frozen Food Journey
Frozen food quality depends on maintaining the required conditions across several connected stages. Refrigeration planning should therefore consider processing, freezing, storage, picking and dispatch as one cold chain rather than isolated rooms.

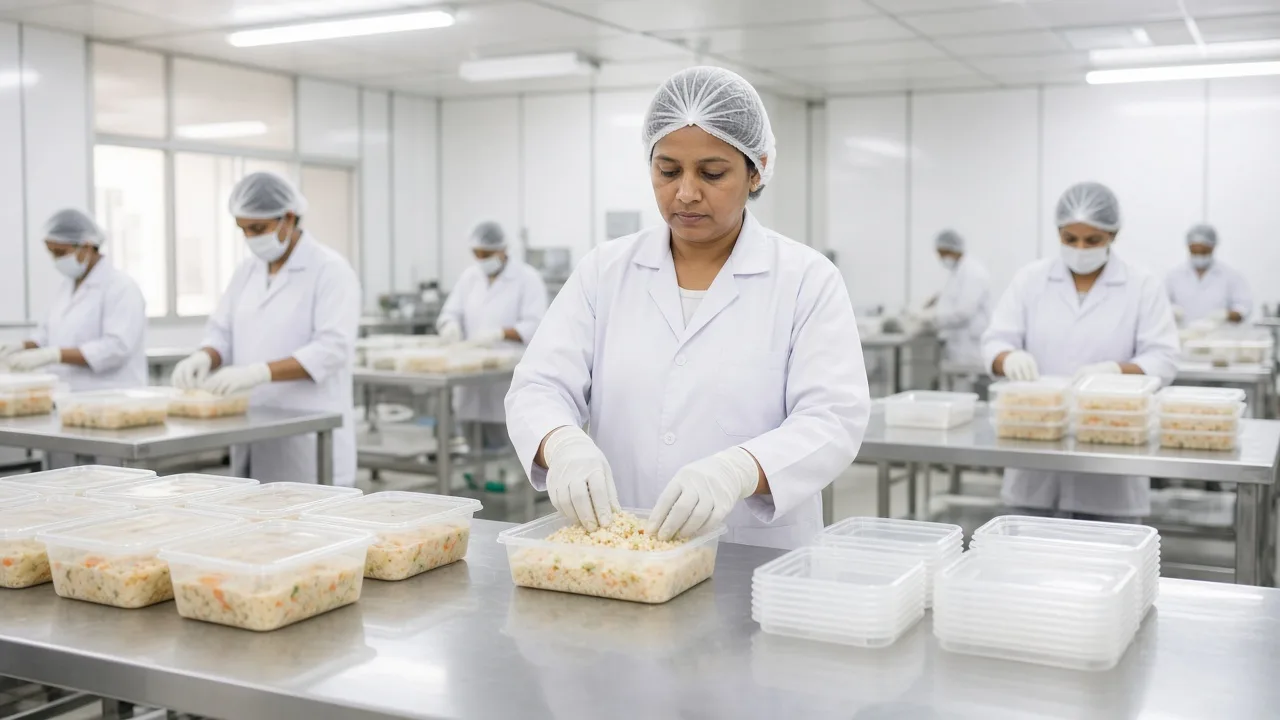

Processing
Processing
Processing areas may need controlled conditions before the product enters freezing or storage. The refrigeration requirement depends on the food process, incoming product condition and time spent in the area.

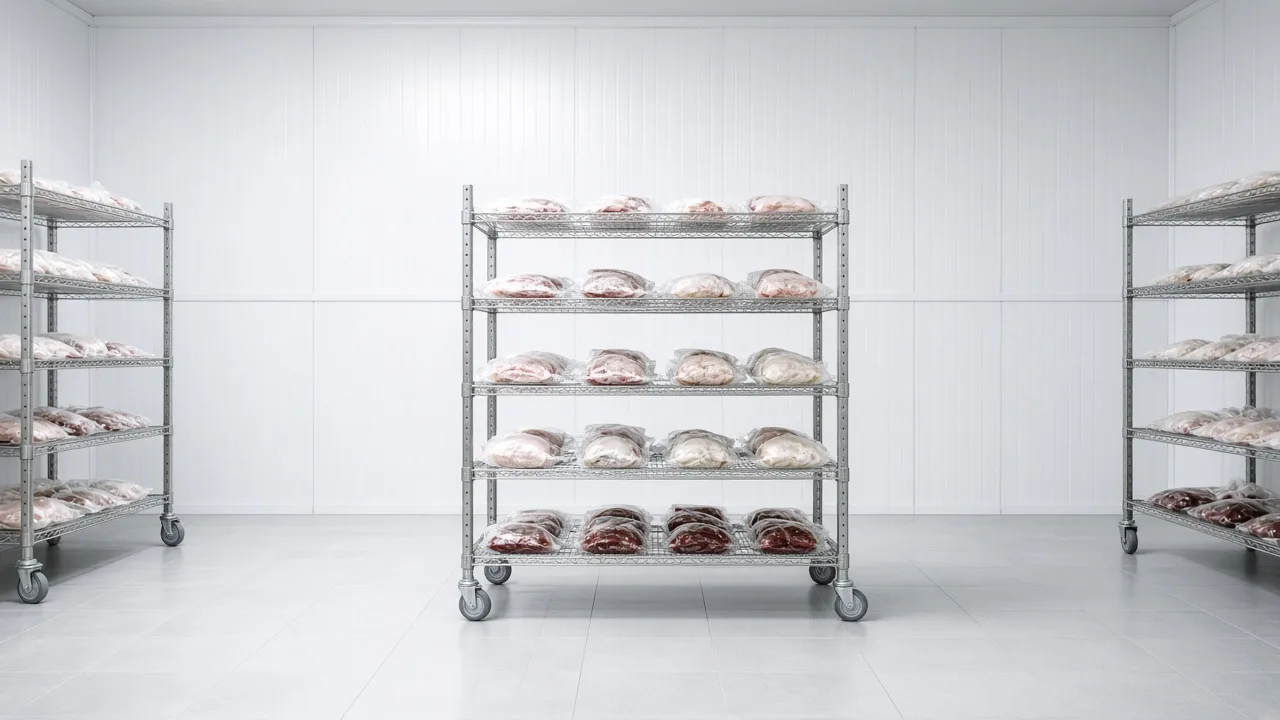

Pre cooling and chilling
Some products require heat removal before the main freezing stage. Pre cooling or chilling should be designed according to the product process and must not be confused with final frozen holding.
Blast freezing
A blast freezer removes product heat quickly before the food moves into frozen storage. Air temperature, airflow and freezing duration depend on the product, thickness, packaging and batch.
Frozen storage
Once the product has reached its required frozen condition, the freezer room maintains it during storage. This duty commonly operates near minus 18°C or lower, depending on the product specification.

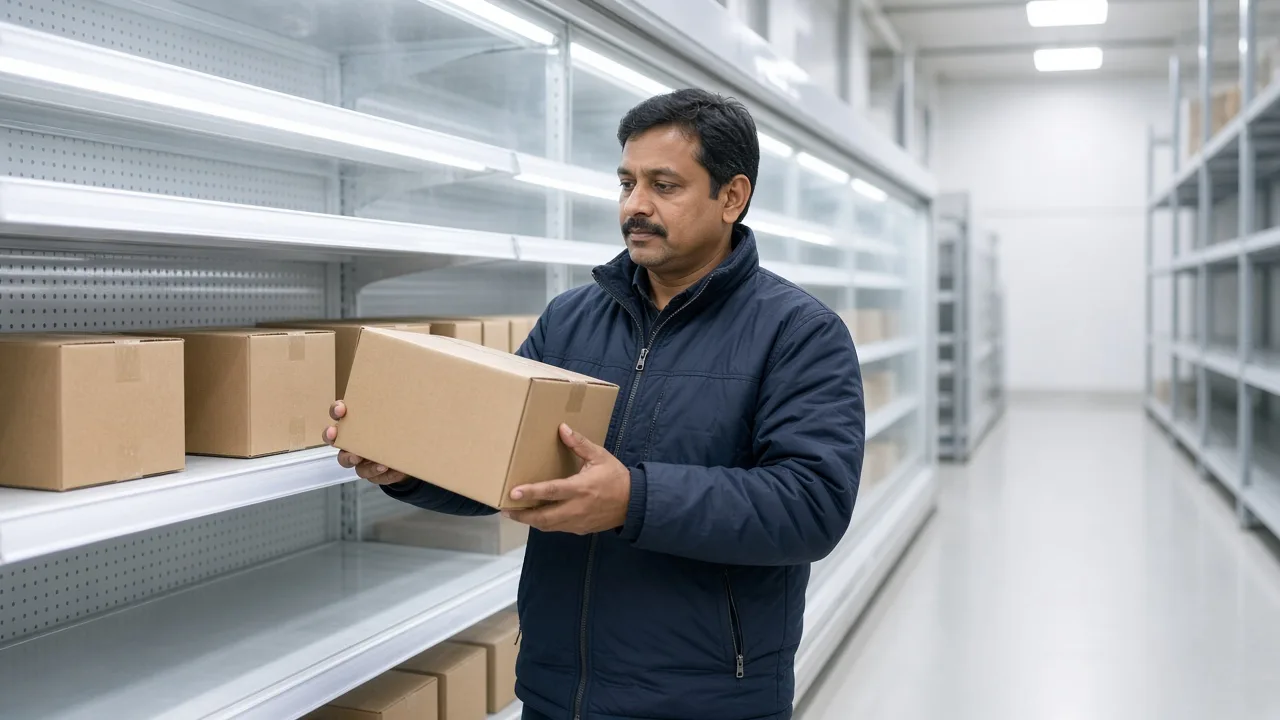

Order picking
Picking activity introduces people, movement and repeated door access into the cold chain. Layout and operating practices should reduce unnecessary exposure of frozen products to warmer areas.

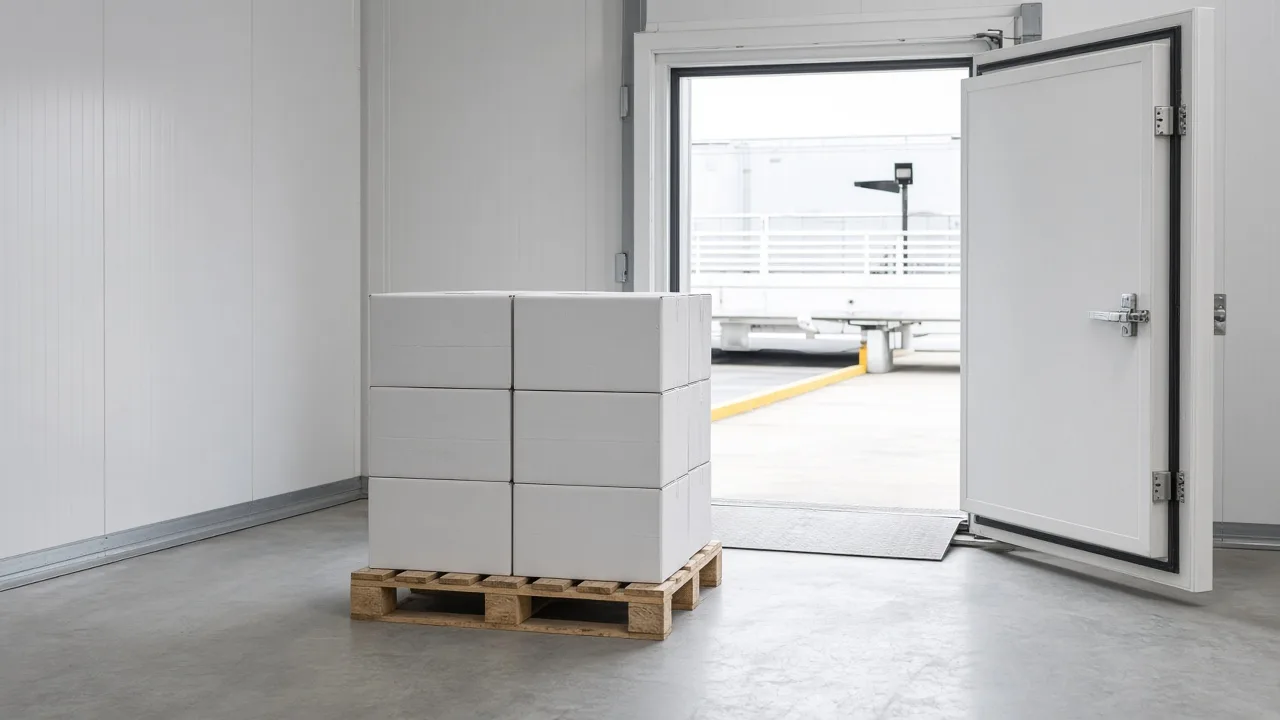

Dispatch
Frozen products often move through staging and loading zones before entering refrigerated transport. Door planning, ante rooms and workflow design can help limit direct heat and moisture entry into the main freezer.

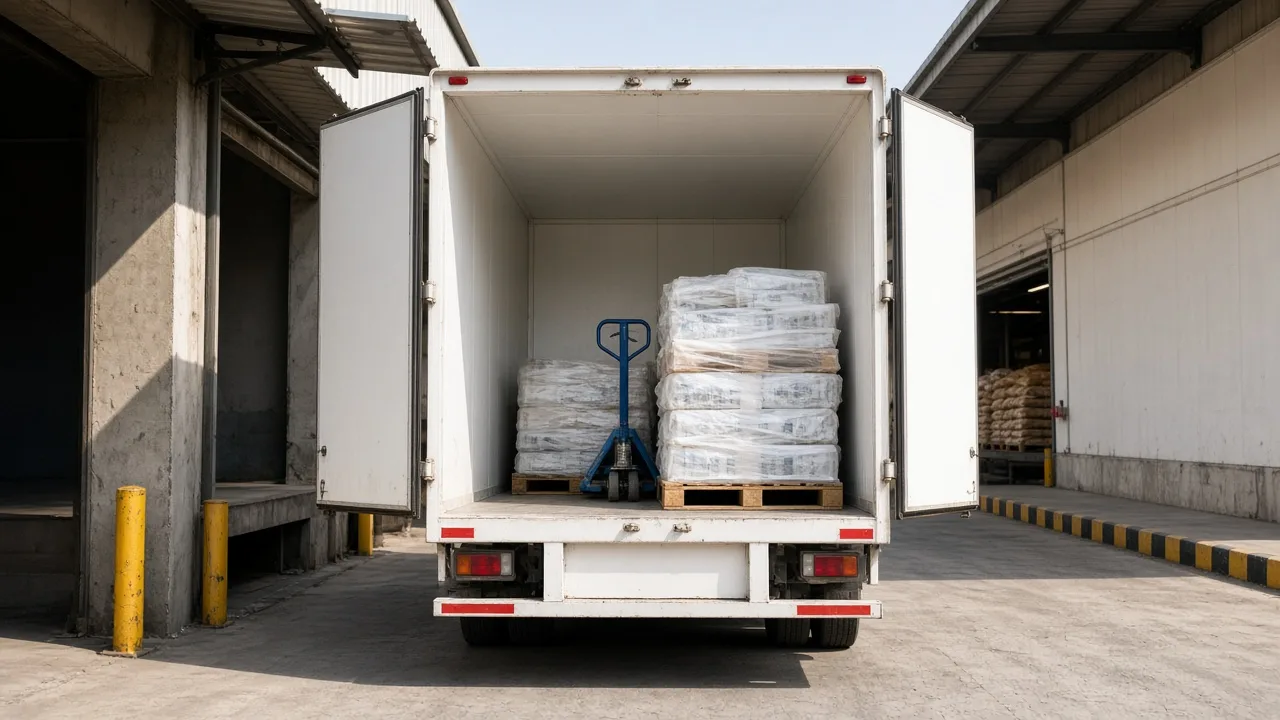

Refrigerated transport
Transport continues the required temperature control after products leave the facility. The cold room and dispatch process should support a smooth transfer into suitable refrigerated vehicles.
Swipe to move the product along the cold chain.
Storage by Product Requirement
Frozen Storage Designed Around Your Product
Frozen foods do not all have identical storage or freezing requirements. Product composition, packaging, loading method and processing stage influence how the frozen food cold storage system should be designed.
Ready to eat food
- Typical storage condition
- Frozen ready to eat products commonly require low temperature holding after freezing. The exact setpoint should come from the product specification and production process.
- Freezer type
- A freezer room is normally used for holding products that are already frozen. A separate blast freezer may be required when the product must be frozen rapidly after preparation.
- Airflow
- Cold air should circulate around stored cartons or pallets without being blocked by tightly packed loads.
- Product loading
- Loading patterns should consider carton dimensions, pallet arrangement, aisle space and daily stock movement.
- Suggested configuration
- A dedicated freezer room with suitable insulation, low temperature refrigeration equipment, controlled doors and planned pallet airflow.
Product thickness, packaging, incoming temperature and the product specification still determine the final room and refrigeration requirement.
Inside the Freezer System
Engineering Behind Reliable Frozen Storage
A freezer is not simply a chiller operating at a lower setpoint. Low temperature duty changes the requirements for insulation, doors, floors, refrigeration equipment, defrost and drainage.
01 / 10
Insulated PUF and PIR panels
01
Insulated PUF and PIR panels
PUF panels and PIR panels create the insulated enclosure that separates the frozen space from warmer surroundings. Panel selection and thickness should match the room temperature, size and operating conditions.
02

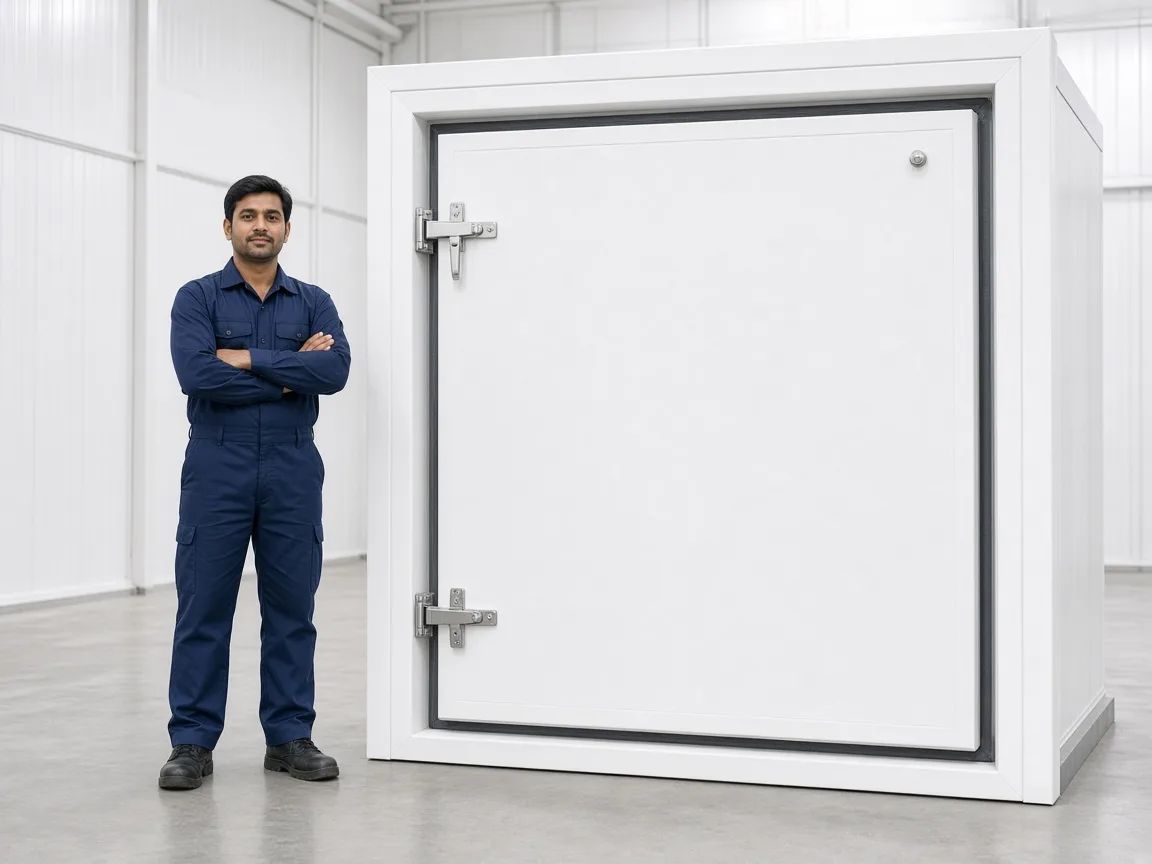

Freezer grade cold room door
The door must be suitable for repeated operation in a low temperature environment. Its dimensions, insulation and sealing arrangement should match the movement of people, pallets and material handling equipment.
03

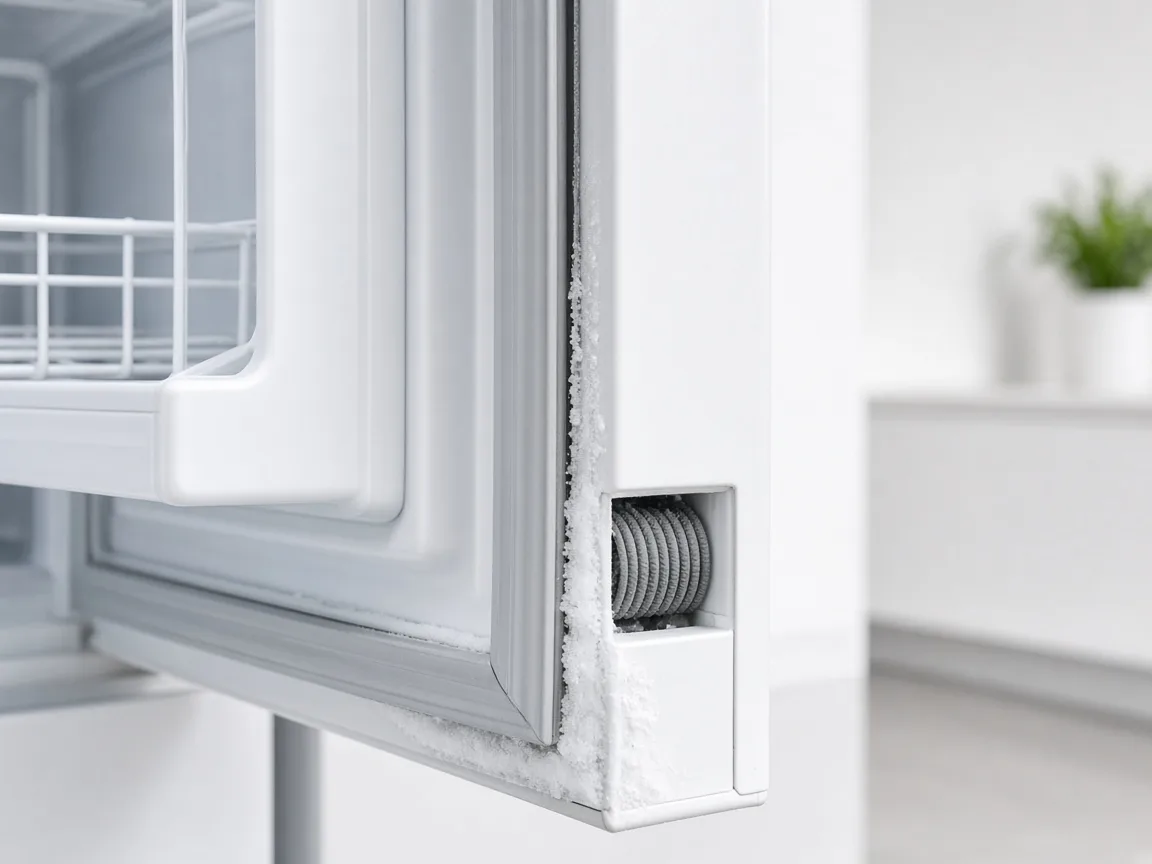

Door frame heating where required
Low temperature doors can require frame heating where operating conditions create a risk of freezing around the opening. This requirement is selected during engineering rather than applied automatically to every doorway.
04

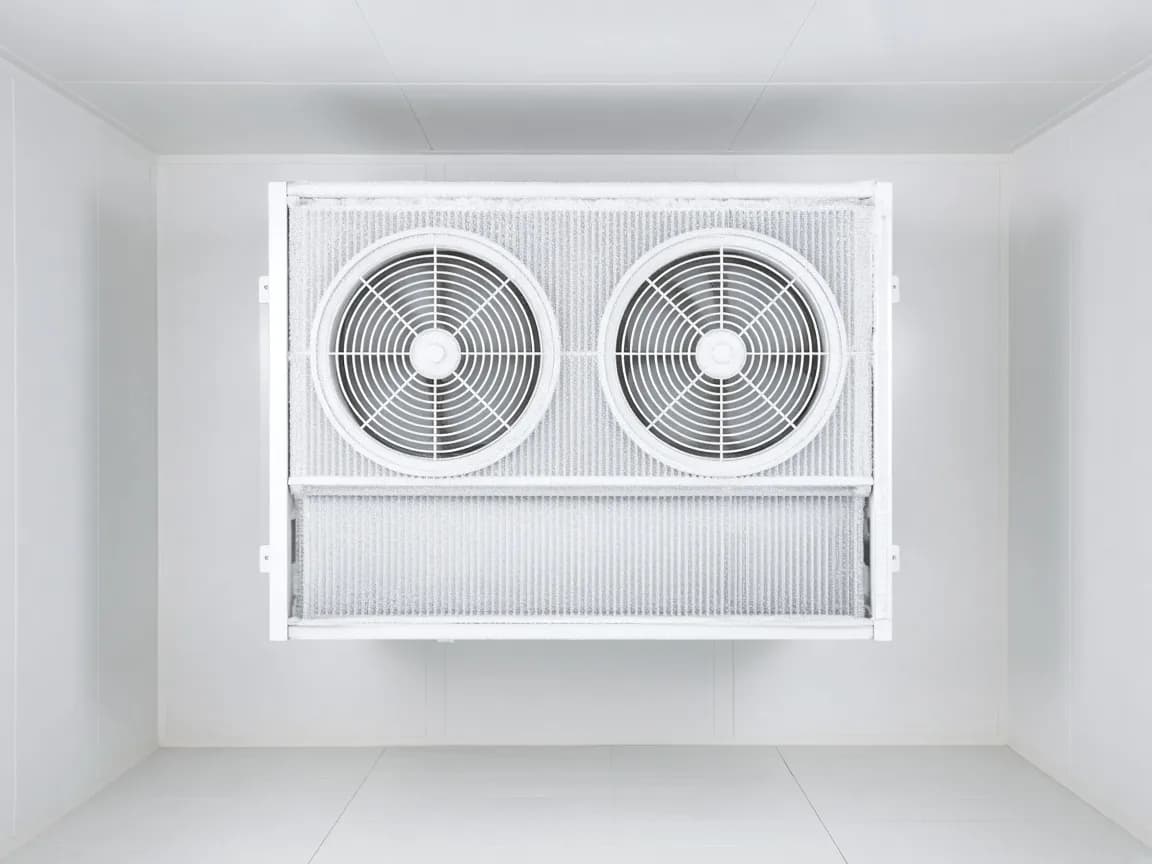

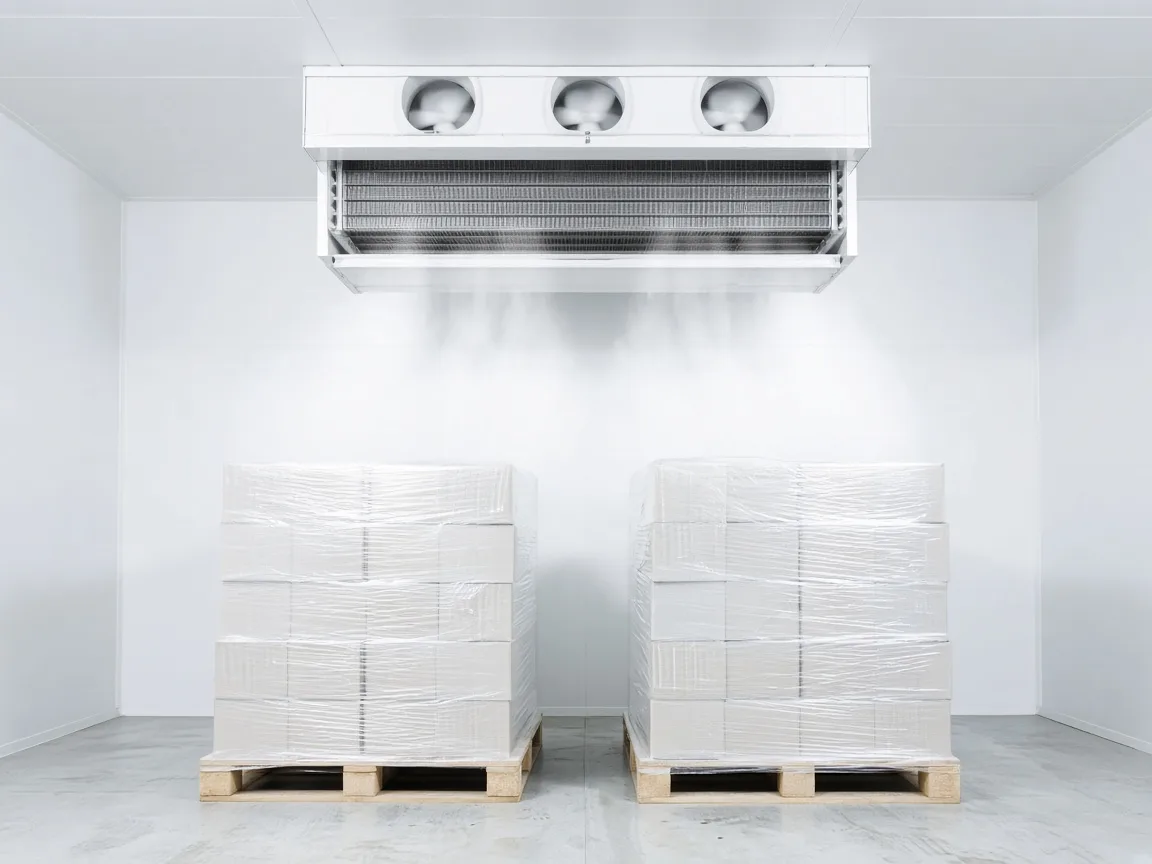

Evaporator
The evaporator removes heat from the room and circulates cold air through the storage space. Its capacity, coil configuration, fan arrangement and placement should suit the low temperature load and room geometry.
05

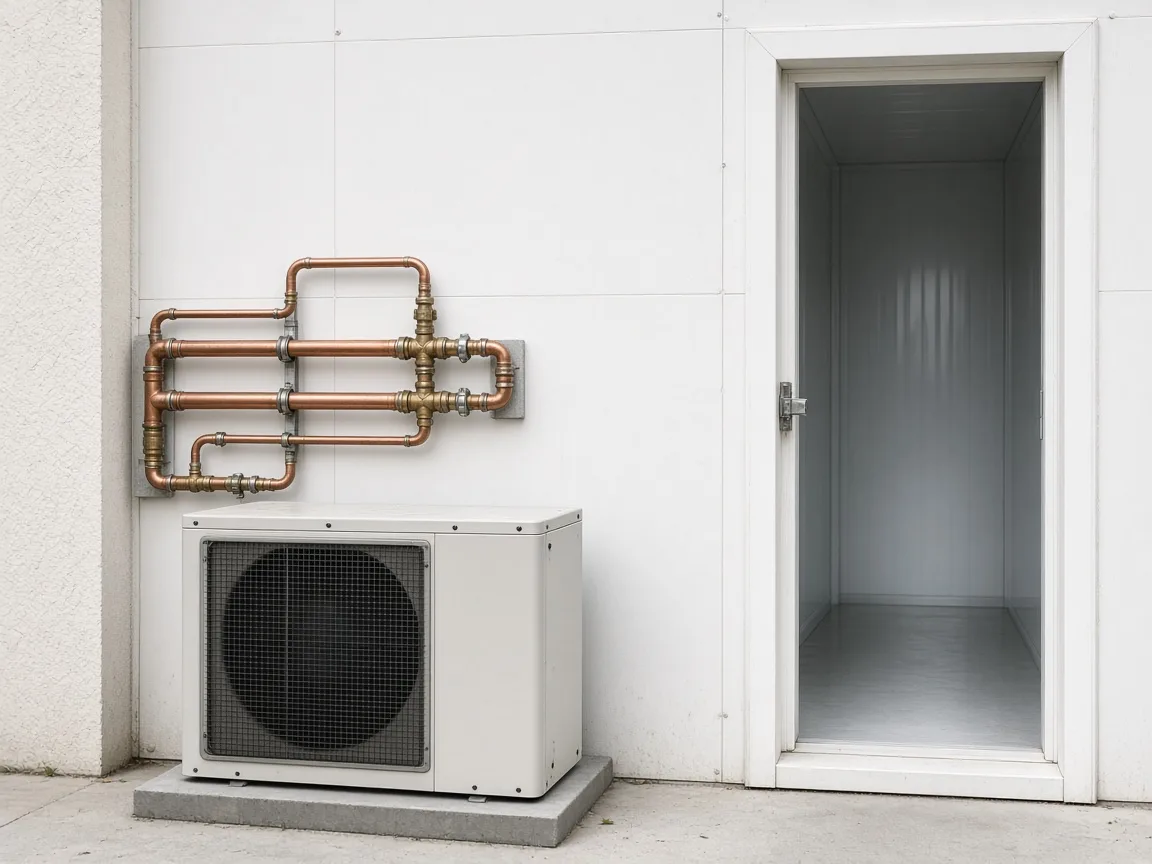

Condensing unit and compressor
The condensing unit and compressor must be selected for the required refrigeration duty and operating condition. A freezer application places different demands on this equipment compared with a normal chiller.
06
Refrigeration piping
Correct piping supports refrigerant circulation between major components. Pipe sizing, routing and insulation should follow the refrigeration system design and site conditions.
07
Defrost system
Moisture entering a freezer can freeze on the evaporator coil. A suitable defrost strategy helps restore airflow and heat transfer when frost accumulates.
08

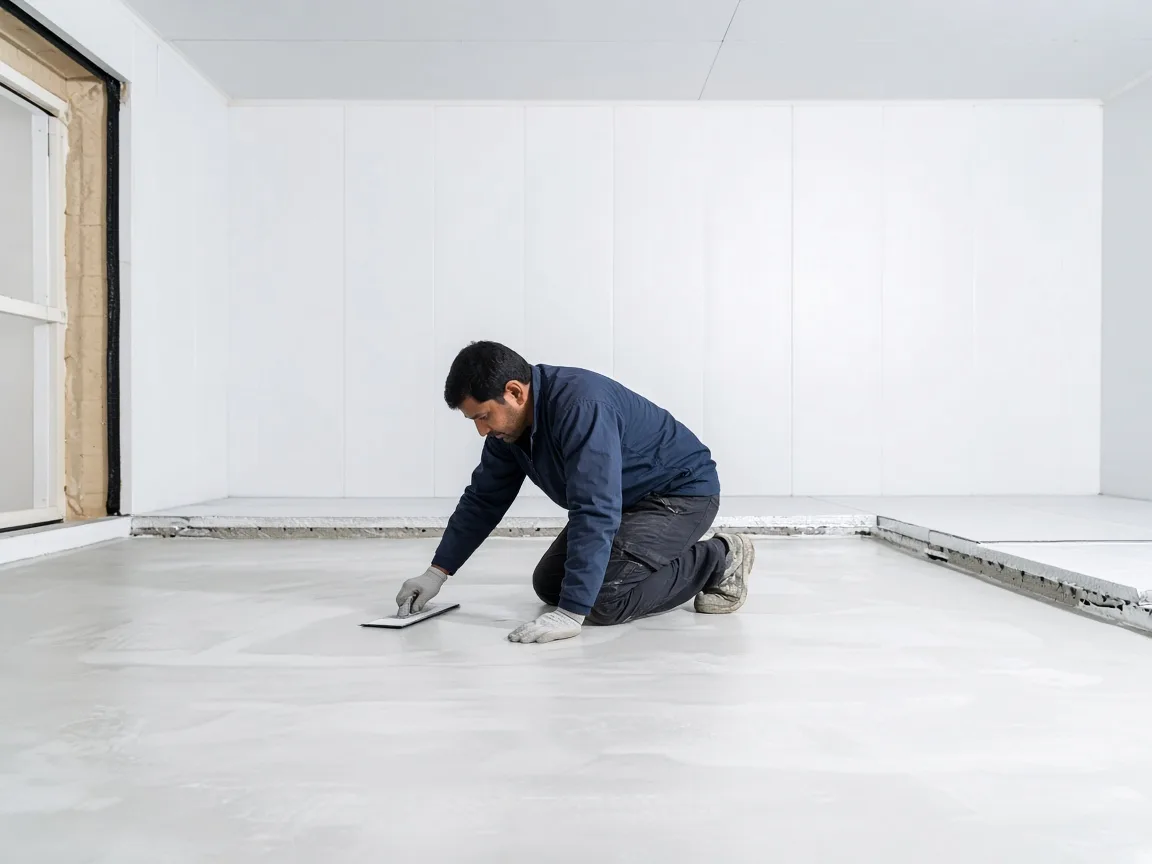

Floor insulation
Freezer floors need insulation suited to low temperature operation. The floor system must be considered during civil and refrigeration planning rather than after the room is already built.
09

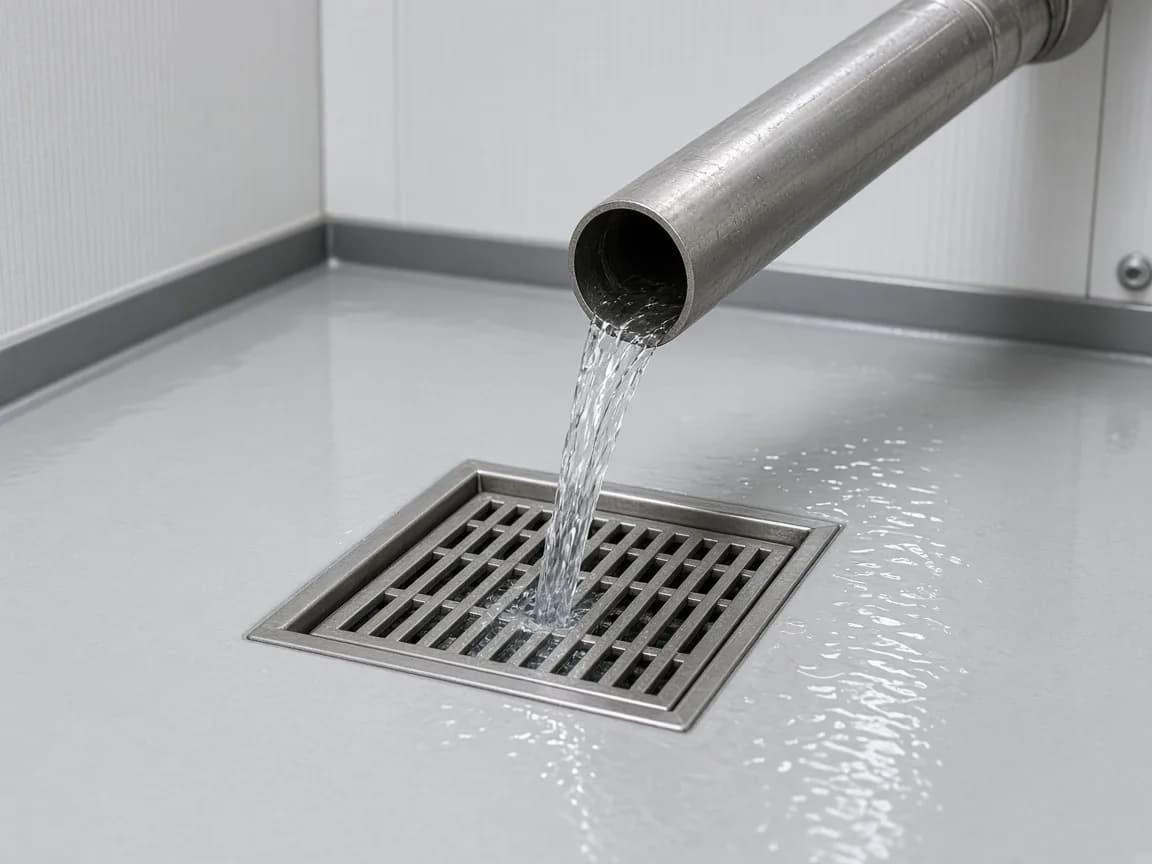

Drain management
Water produced during defrost must leave the refrigeration area without creating freezing problems. Heated drains may be required where the operating temperature and design conditions call for them.
10

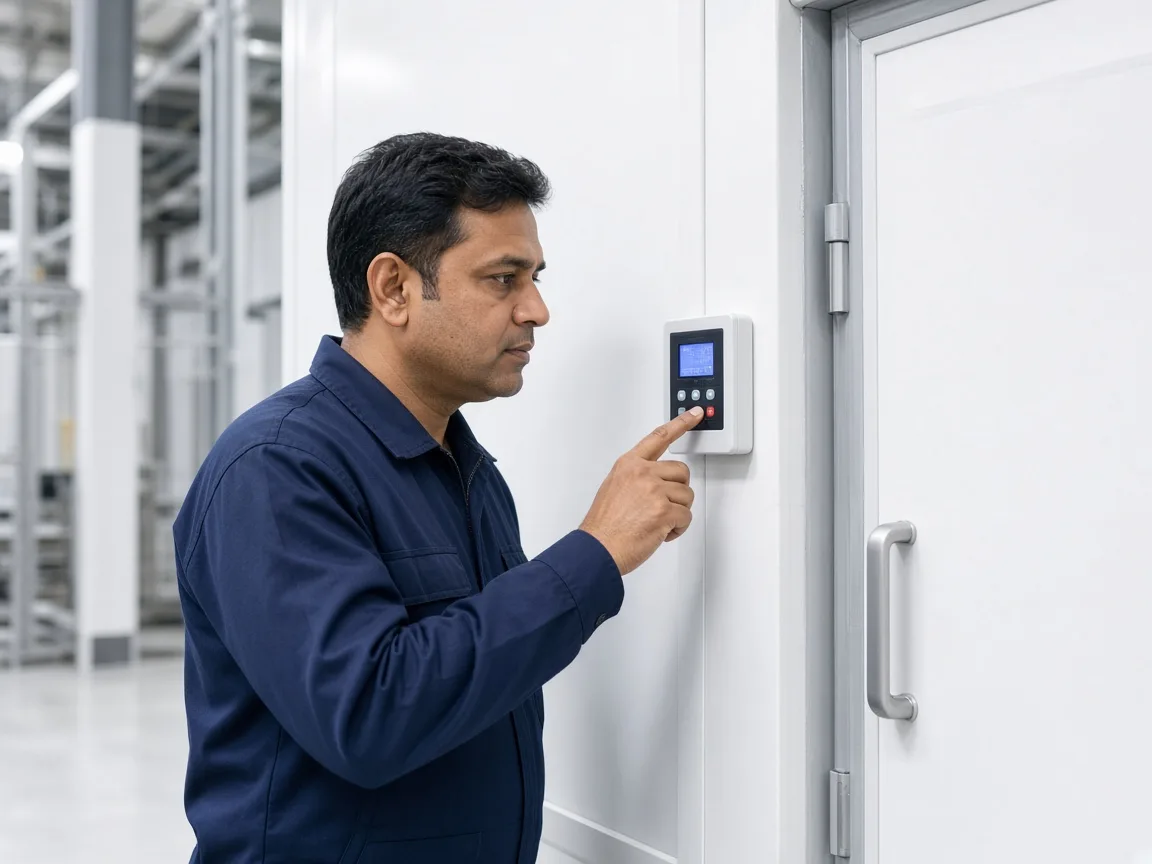

Temperature controls, sensors and alarms
Controls help the refrigeration equipment maintain the selected operating condition. Sensors and alarms also give operators visibility when room conditions move outside the configured limits.

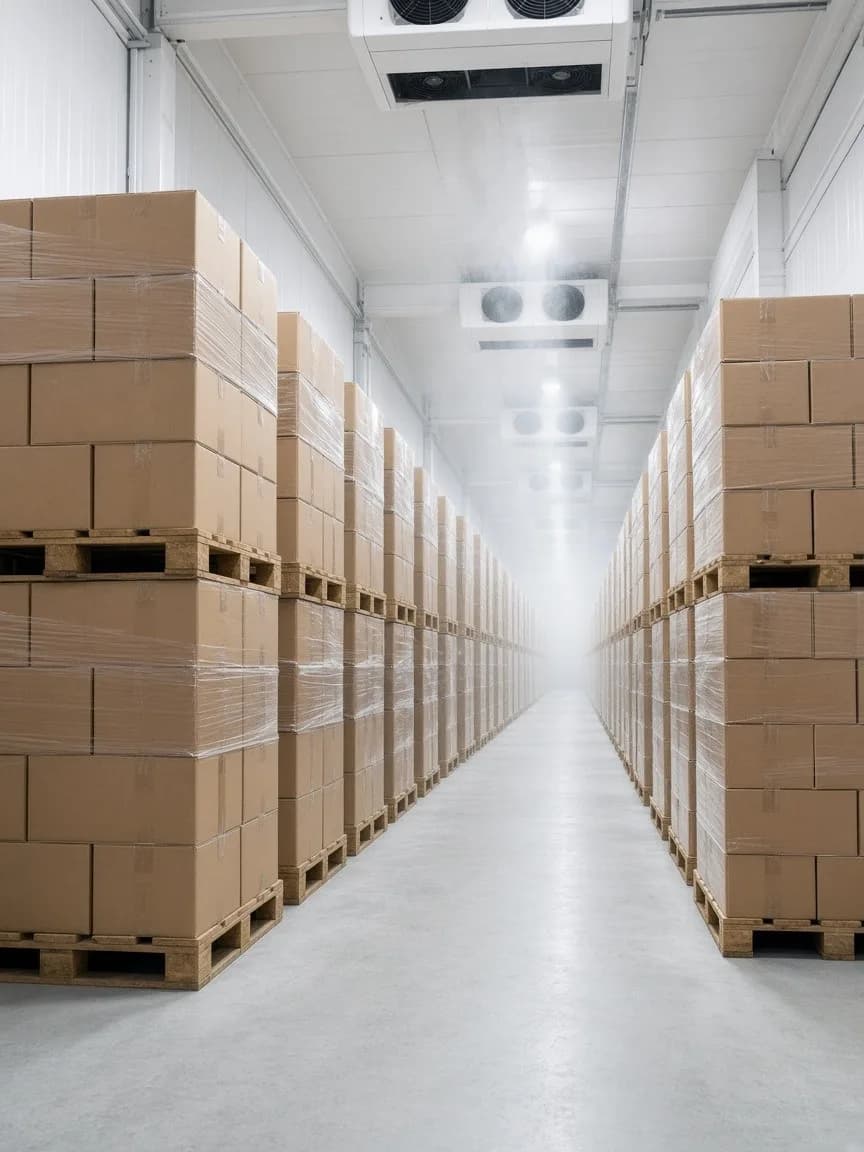

Airflow Through the Load
Cooling Every Pallet, Not Just the Room
A room sensor can indicate the required setpoint while a pallet with restricted airflow remains warmer than the surrounding air. Cold room design therefore needs to consider how air actually moves through the stored load.
Pallet spacing
Spacing gives cold air a path around stored products. Pallets pushed tightly together or directly against walls can restrict circulation.
Evaporator placement
The evaporator should be positioned with the room shape, racking and product load in mind. Poor placement can leave areas with limited air movement.
Air throw and return
Cold air needs a clear route from the evaporator into the room and back to the return side. Both directions matter when planning rack and pallet positions.
Blocked airflow
Tall stacks, oversized cartons or poorly positioned pallets can interrupt circulation. Layout planning should identify these risks before regular operations begin.
Loading pattern
The way products enter, leave and occupy the room changes the airflow path. Consistent loading practices can help the refrigeration system serve the occupied storage space more effectively.
Hot spots
Areas with restricted circulation, high door exposure or concentrated load can behave differently from the rest of the room. Sensor placement and airflow planning should account for these locations.
Door movement
Door openings affect the air balance near loading and picking zones. The room layout should reduce unnecessary open time and direct warm air entry wherever practical.
Built for Local Operating Reality
Designed for Indian Operating Conditions
A freezer room in India must operate in conditions that can include high outdoor temperatures, frequent material movement and demanding warehouse schedules. Refrigeration design should account for the site environment as well as the required room condition.

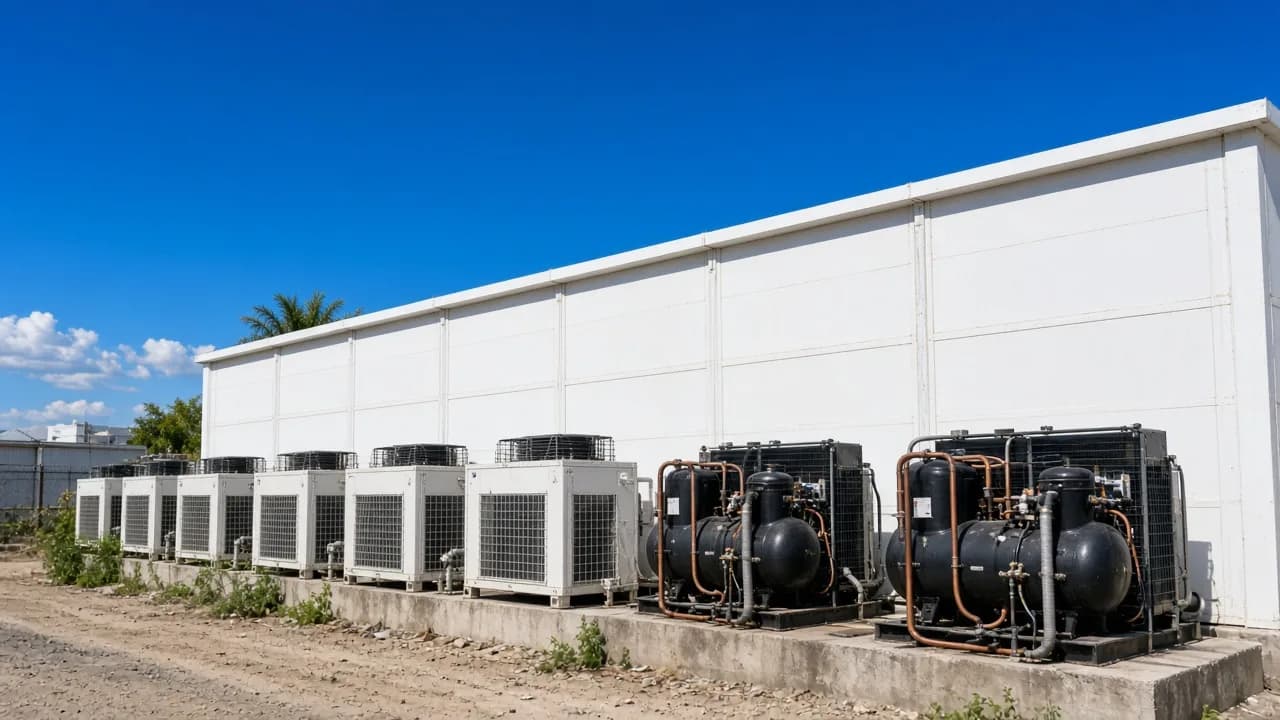

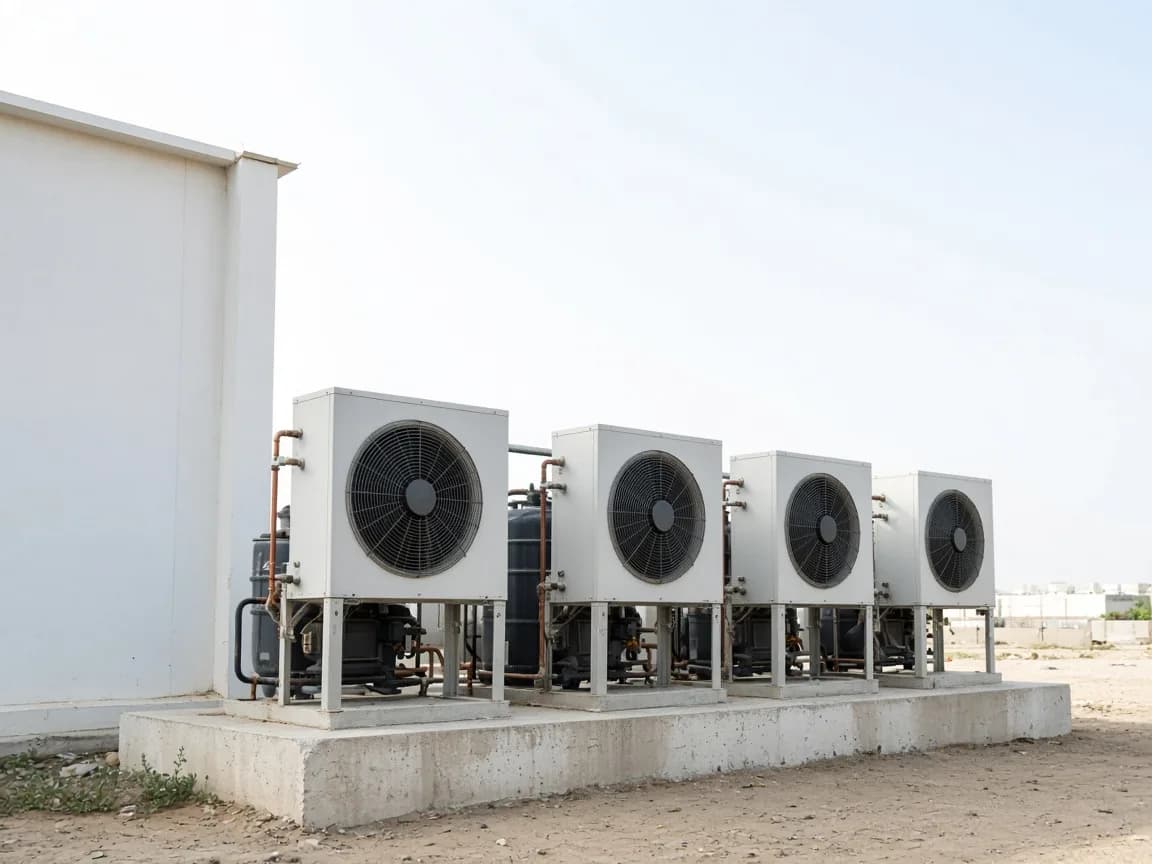

Outdoor and plant side conditions
The refrigeration system must reject heat into the surrounding environment while handling the calculated room and product load.

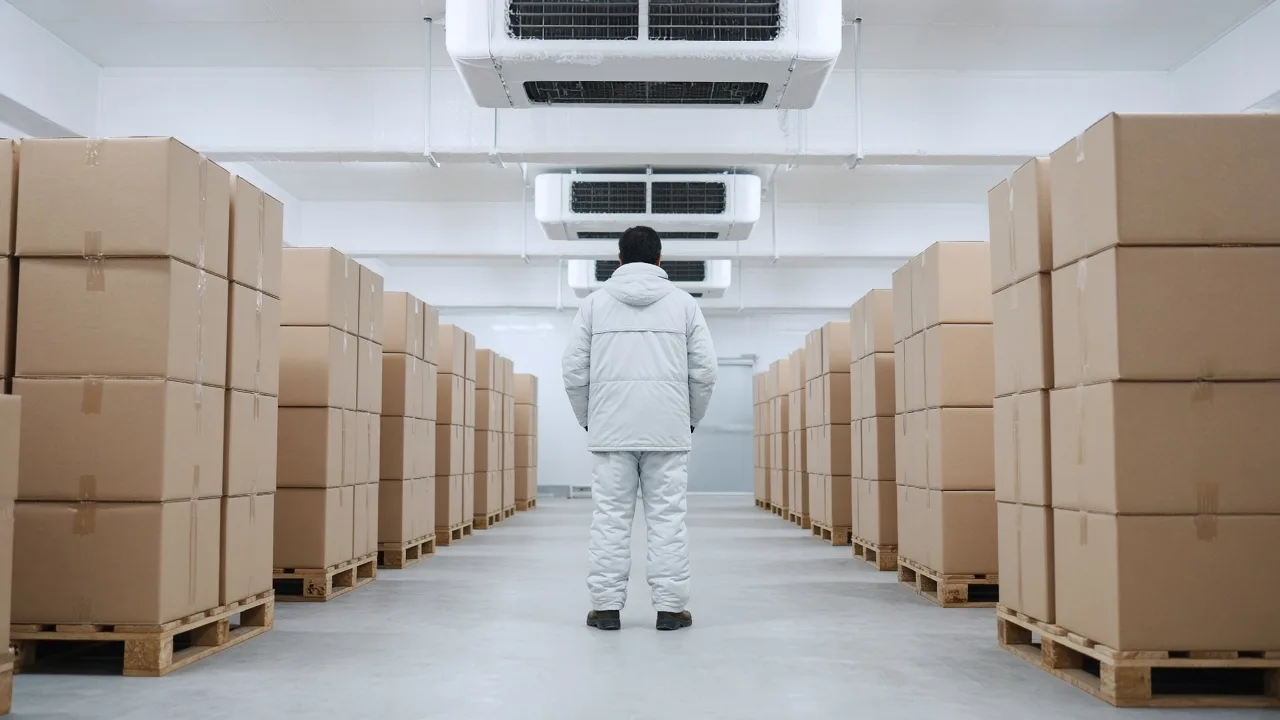

Frozen storage conditions
Inside the room, insulation, airflow and refrigeration equipment work together to maintain the product specific low temperature condition.
The door animation is only a visual representation of room operation and does not show a measured recovery time.
High outdoor ambient
High outdoor temperatures can increase the duty placed on refrigeration equipment. Equipment selection should therefore consider the ambient conditions expected at the project site.
Frequent loading and unloading
Busy food facilities may open freezer doors repeatedly during receiving, picking and dispatch. Door size, traffic flow and room arrangement should reflect this operating pattern.
Long compressor hours
Frozen storage facilities can operate for extended periods each day. Components must be selected for the calculated low temperature duty rather than adapted from a standard chiller design.
Indian warehouse layout
Existing columns, loading bays, ceiling height, racking and movement paths can affect room design. Engineering should fit the refrigeration system into the actual warehouse operation.
Seasonal heat
Ambient conditions can change significantly across seasons. Refrigeration planning should consider the design conditions applicable to the project location.
Distribution traffic
Distribution centres can experience concentrated periods of picking and loading. Ante rooms, door planning and practical movement routes can help limit direct exposure of the freezer to surrounding air.
Dust and industrial conditions
Equipment installed in industrial environments needs suitable placement and maintenance access. Site conditions should be reviewed before finalising the refrigeration arrangement.
Plan Your Requirement
What Does Your Frozen Food Facility Need?
The planner helps identify the type of refrigeration space that may suit your frozen food operation. It suggests a room category based on your requirement but does not calculate a project price.
01 / 07
Why Work With Uniref
Cold Room Expertise Built Around Your Operation
Uniref designs, manufactures, supplies, installs and commissions custom cold rooms and refrigeration systems. Panel manufacturing is carried out in Bengaluru and Mumbai, engineering coordination is from Jaipur, and installation is available across India.
Product specific design
The room starts with the product requirement rather than a standard equipment package. Storage condition, product load, packaging, access and operational workflow are considered during planning.
Low temperature engineering
Freezer applications require different engineering from normal chilled rooms. Uniref considers insulation, freezer doors, evaporators, defrost, floors, drainage and other low temperature requirements as part of the system.
Complete system integration
A cold room includes more than insulated panels. Uniref coordinates the enclosure, refrigeration equipment, piping, controls and installation so the system is planned as one complete solution.
Indian operating experience
The design process considers local ambient conditions, warehouse layouts and the way Indian food facilities receive, store and dispatch products. This helps align the room specification with actual site operation.
After sales support
Refrigeration systems require inspection, maintenance and timely technical attention throughout their operating life. Uniref supports customers after commissioning with service assistance based on the installed system and requirement.
Frozen Food Cold Room FAQs
A freezer room is generally suitable for products that have already been frozen and need low temperature holding. Frozen food holding is commonly near minus 18°C or lower. The final room specification should still be selected from the product requirement, storage volume, loading pattern and daily operation.
