Door openings
Frequent loading and picking can increase warm air and moisture entering refrigerated chambers.
Cold Chain and Logistics Refrigeration Solutions
Cold Room Manufacturer for Cold Chain & Logistics
Uniref designs and installs chilled rooms, freezer rooms, multi temperature cold rooms and large cold storage systems for logistics companies, distribution centres, refrigerated warehouses, food businesses and cold chain operators across India. As a cold room manufacturer for cold chain & logistics, we engineer each system around the product mix, required temperatures, pallet volume, loading pattern, dispatch activity and warehouse environment.
Room temperature
+32°C
The visual represents a logistics cold room moving toward its required operating condition, while the final setpoint is confirmed from the products stored inside each chamber.
The Cold Chain Storage Challenge
Cold Chain Logistics Needs More Than Just a Cold Room
Cold chain facilities can handle chilled, frozen and temperature sensitive products under one roof while operating through continuous receiving, picking and dispatch activity. High pallet movement, repeated door openings and changing stock levels can create significant refrigeration and airflow challenges.
01
Warm air entering
Every opening between the refrigerated room and surrounding warehouse allows warmer air to enter. The refrigeration system must handle this additional heat while continuing to maintain the required internal condition.
02
Changing product load
Pallet quantities can vary throughout the day as products arrive, move through storage and leave for dispatch. Refrigeration equipment should be selected around actual warehouse operation rather than an empty room.
03
Moisture and frost risk
Warm humid air entering low temperature rooms can create condensation or frost. Freezer operations therefore require suitable door planning, defrost, drainage and low temperature engineering.
04
Cooling system compensating
The refrigeration system continuously responds to changing heat loads from products, people, doors and the room envelope. Correct equipment selection and airflow planning help the room operate under real logistics conditions.
Pallet face
Dense pallet storage can restrict conditioned air from reaching products deeper within the load.
Dock activity
Regular truck movement and loading operations can expose storage areas to changing ambient conditions.
Traffic flow
Forklifts, pallet trucks and personnel movement influence door use, aisle planning and room layout.
Rooms for Cold Chain Operations
Choose the Right Refrigeration System for Each Logistics Duty
Cold chain and logistics businesses may require separate refrigerated spaces for chilled goods, frozen stock, multi product storage, staging and high volume distribution. Uniref configures each room around the actual storage and movement requirement.
Chilled Cold Rooms
- Typical use
- Storage of food, beverages, dairy products, fresh produce and other goods requiring controlled refrigerated holding without frozen storage.
- Temperature
- The final operating condition depends on the product specification. One generic chilled setpoint should not be applied across unrelated product categories.
- Suitable operation
- Suitable for refrigerated warehouses, distribution centres, food logistics companies and regional fulfilment hubs.

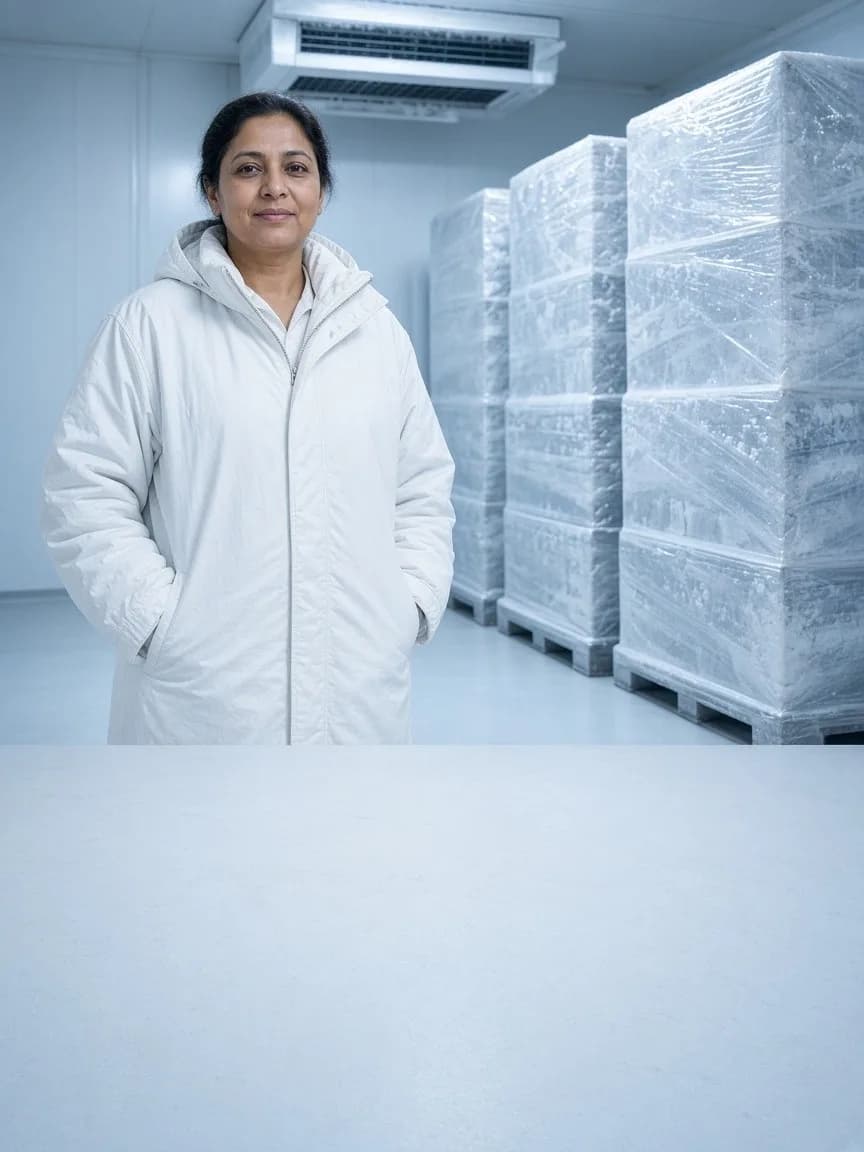

Freezer Rooms
- Typical use
- Holding products that have already reached their required frozen condition.
- Temperature
- Frozen food holding is commonly near minus 18°C or lower. Freezer rooms for this duty are often designed around minus 18°C to minus 25°C, subject to the products stored.
- Suitable operation
- Suitable for frozen food warehouses, exporters, distributors and cold chain businesses handling frozen inventory.
Multi Temperature Cold Rooms
- Typical use
- Warehouses handling several product groups requiring separate refrigerated and frozen environments.
- Temperature
- Each chamber is designed around the products stored inside it. Different temperature requirements should be separated rather than forced into one common room condition.
- Suitable operation
- Suitable for third party logistics providers, large distributors and multi category cold storage operations.

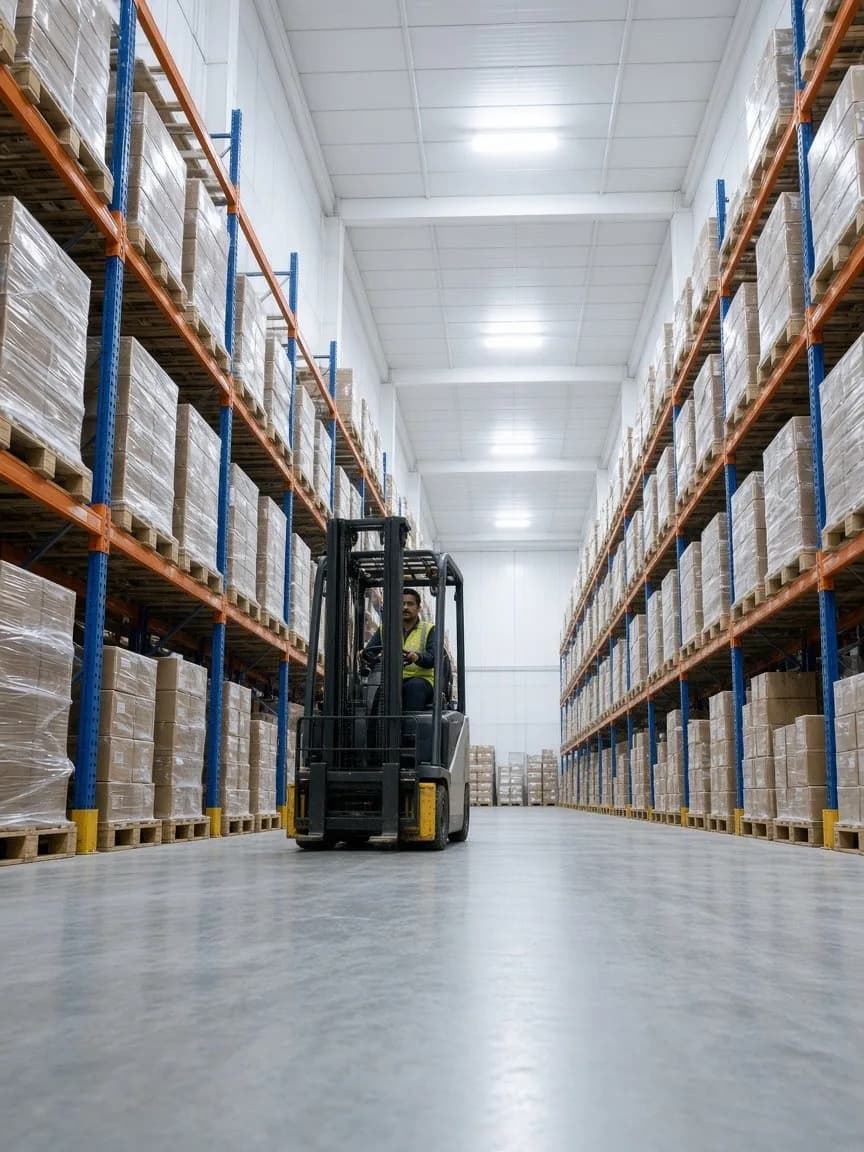

Large Cold Storage Warehouses
- Typical use
- High volume pallet storage with racking, forklifts, regular receiving and continuous dispatch activity.
- Temperature
- The room condition is selected from product requirements, while refrigeration capacity also considers loading patterns, storage density and warehouse activity.
- Suitable operation
- Suitable for regional distribution hubs, food warehouses, exporters and large cold chain facilities.

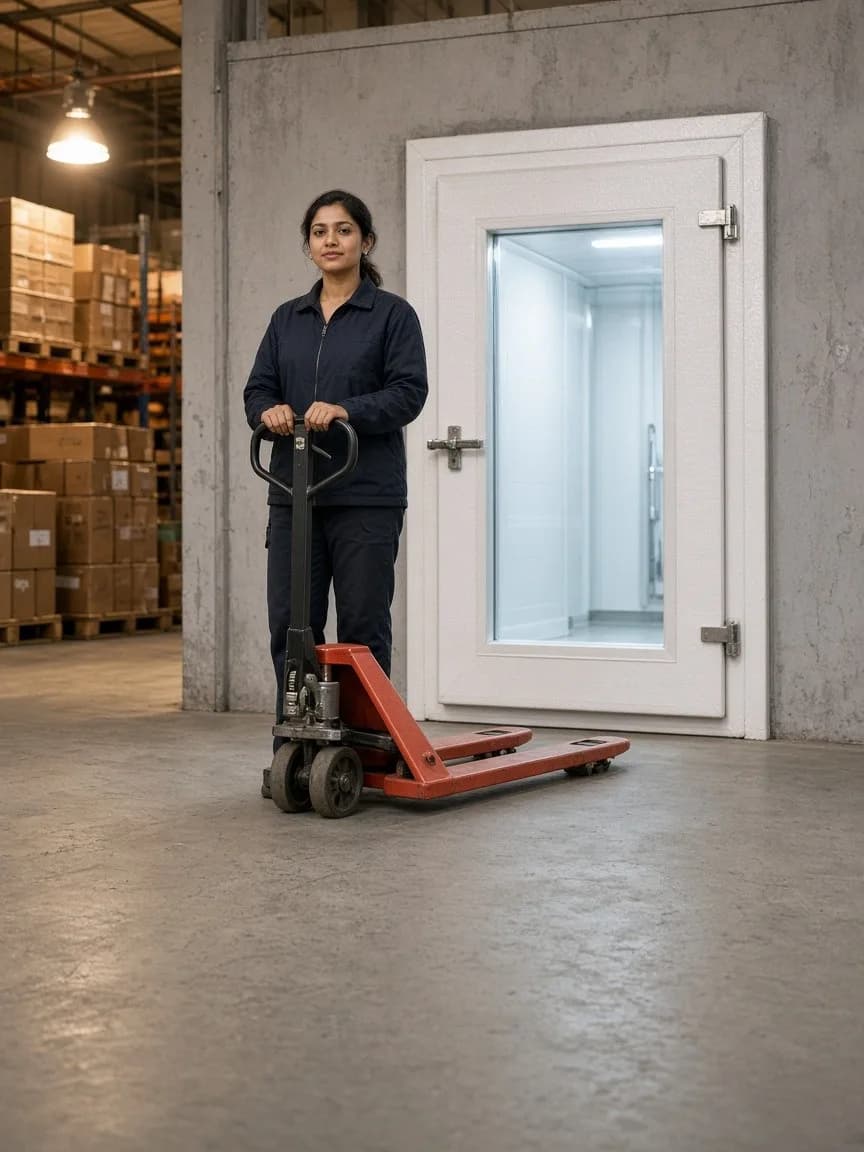

Ante Rooms
- Typical use
- Controlled transition areas between loading docks, ambient warehouse spaces and refrigerated chambers.
- Temperature
- An ante room acts as a buffer between spaces. It is not automatically another product storage chamber.
- Suitable operation
- Suitable for high traffic facilities with frequent pallet movement and door activity.
From Receiving to Final Dispatch
Temperature Control Across the Logistics Journey
Cold chain logistics depends on maintaining the required product condition while goods move through receiving, storage, picking, staging and dispatch. Refrigeration planning should therefore consider the complete warehouse journey rather than only the main storage room.

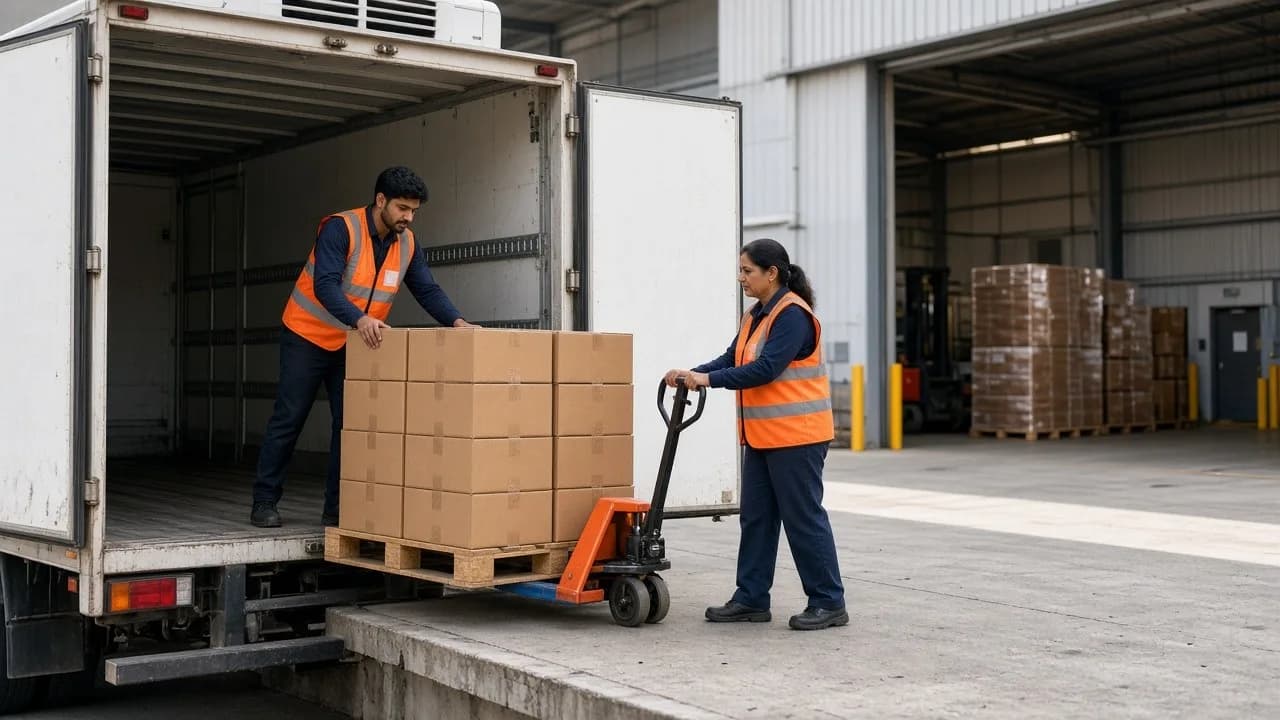

Receiving
Receiving
Products can arrive from processors, farms, manufacturers or other distribution centres under different temperature conditions. The receiving layout should support quick identification and movement into the correct refrigerated area. The time products spend around loading docks should also be considered during warehouse planning.

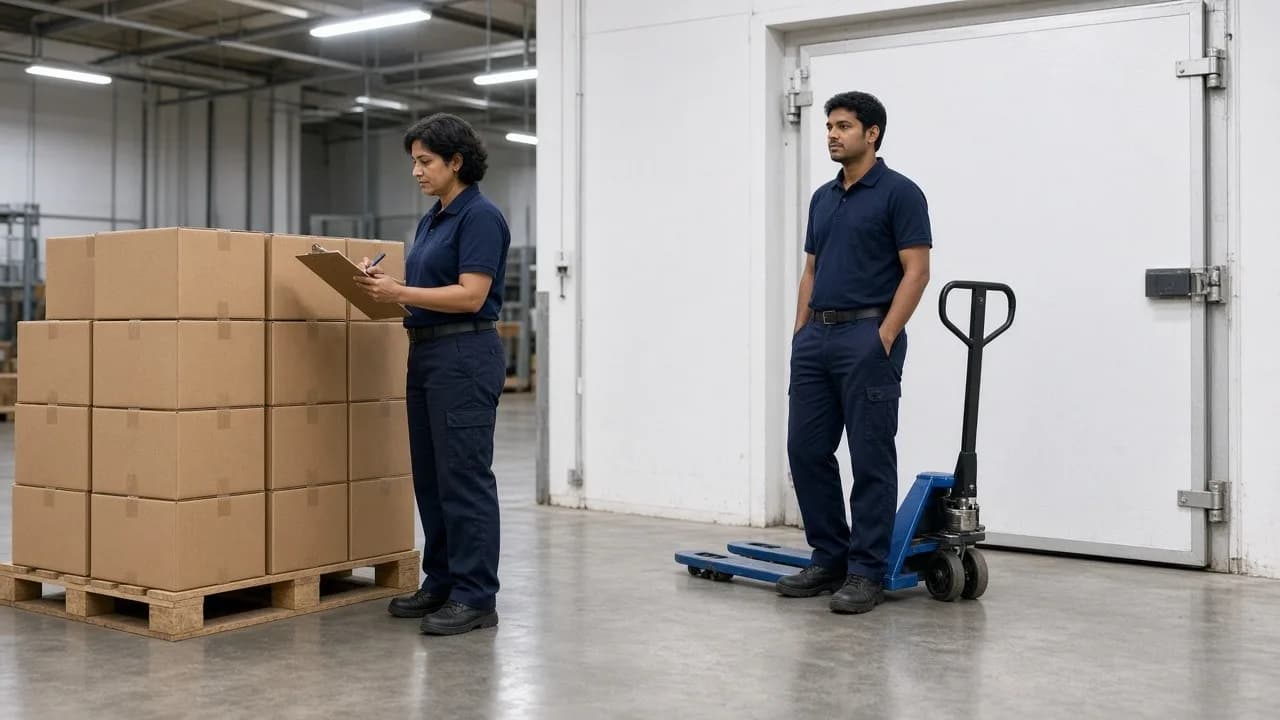

Inbound Verification
Products may require quantity checks, condition checks or allocation before being moved into storage. This process should be organised to avoid unnecessary delays outside controlled areas. Clear routes between receiving and storage can support faster inbound movement.
Chilled Storage
Products requiring refrigerated holding can move into dedicated chilled chambers. These rooms should maintain the selected product condition while supporting high pallet density and regular stock movement. Rack positions and aisle widths should also support the intended airflow path.

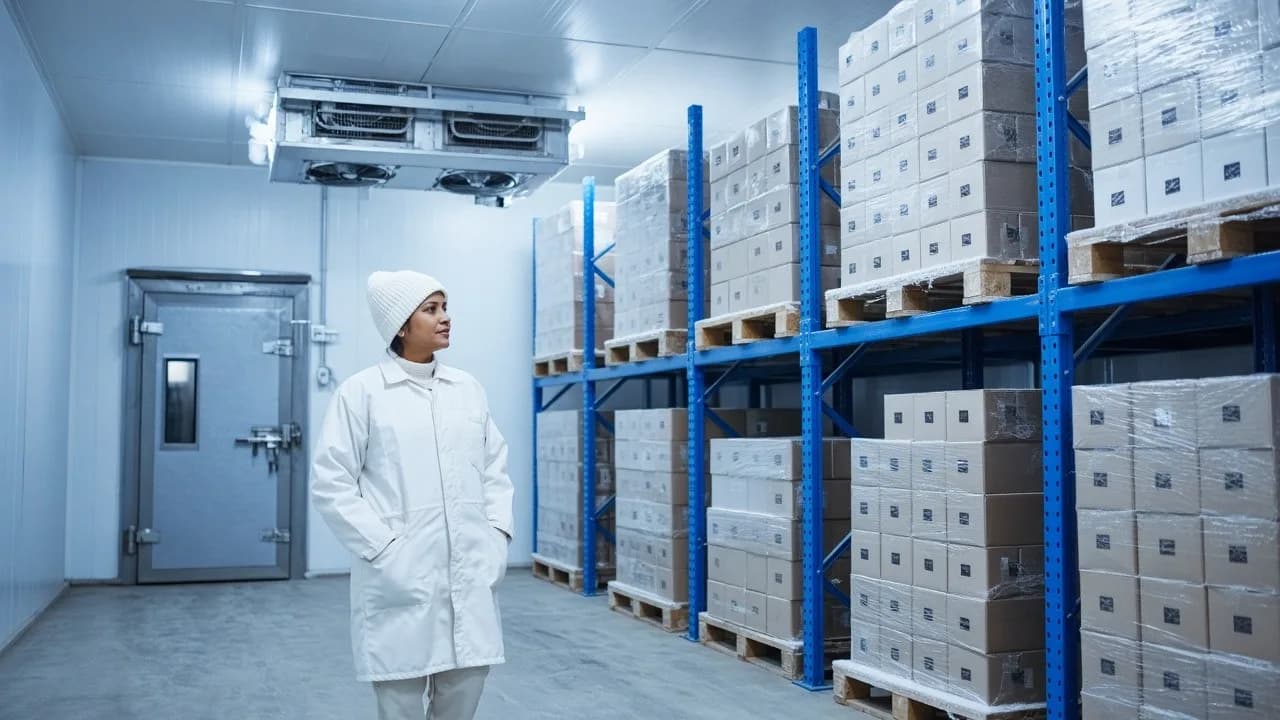

Frozen Storage
Frozen goods move into freezer rooms designed for low temperature holding. The refrigeration system must maintain the selected condition while handling pallet movement and repeated door activity. Low temperature construction, defrost and drainage become especially important in this duty.

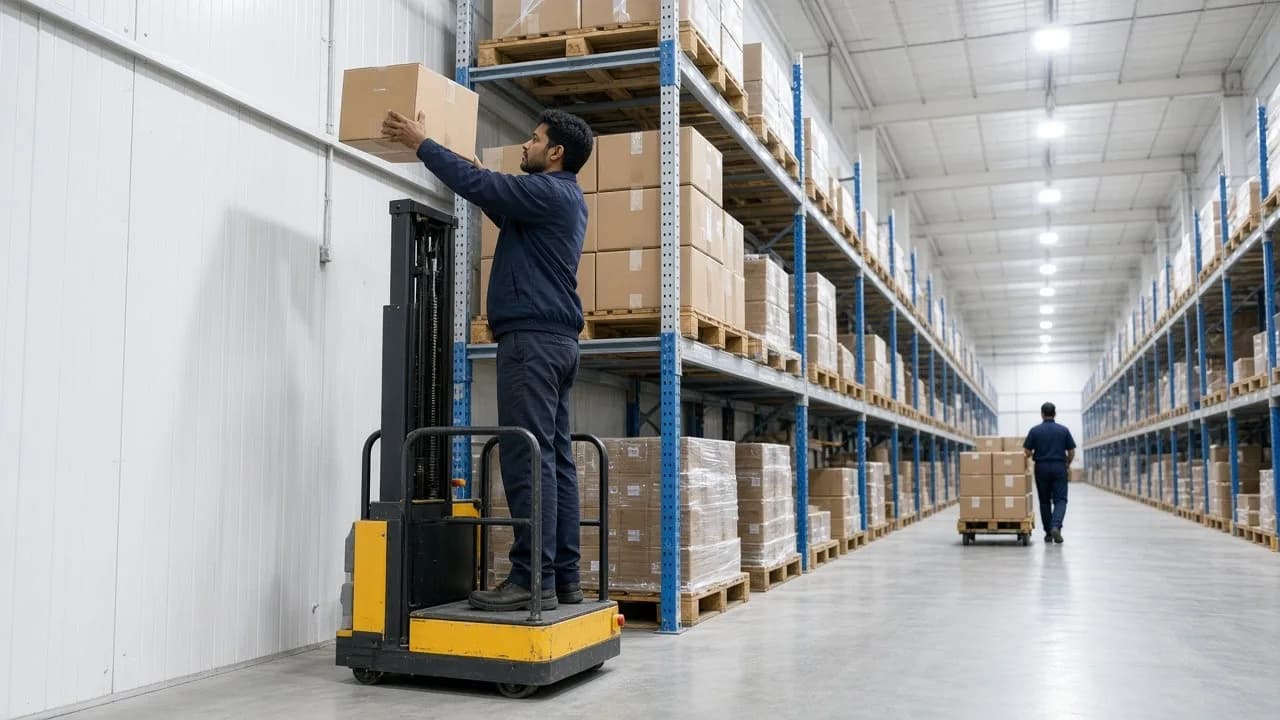

Order Picking
Picking can create concentrated movement inside refrigerated areas. Forklifts, people and door openings add operational heat and can interrupt airflow. The layout should support efficient access without requiring unnecessary travel through the entire chamber.

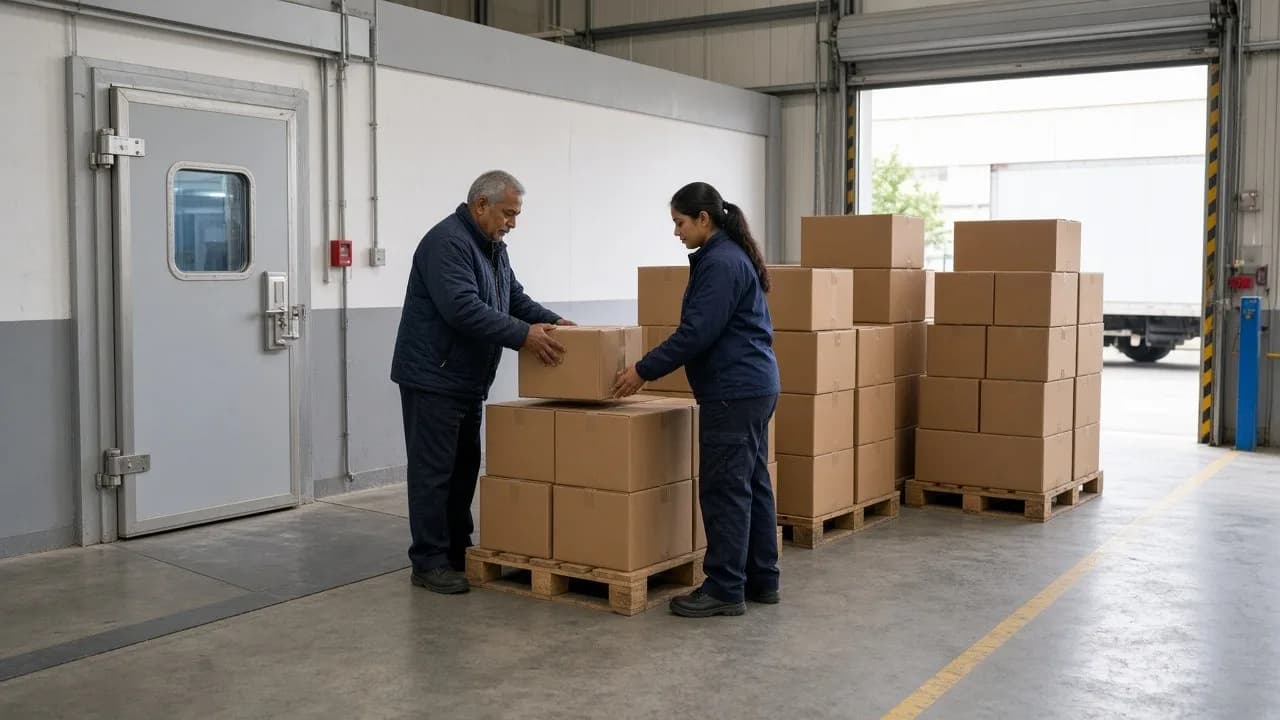

Consolidation and Staging
Orders may need to be consolidated before dispatch. Staging areas should be planned so products do not remain unnecessarily exposed to warmer surroundings. Controlled staging or ante rooms can be considered where the logistics model requires them.

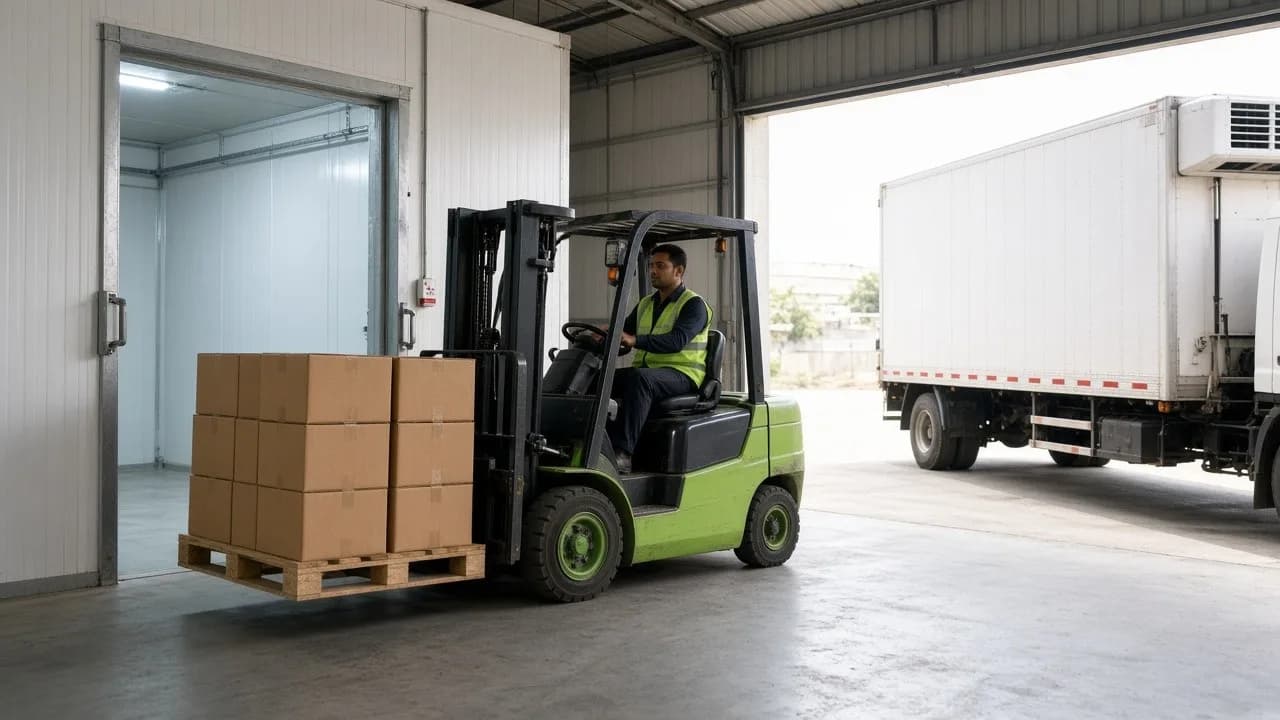

Dispatch
Finished orders move through loading areas before entering refrigerated vehicles. The route should be direct and practical. Door placement, traffic flow and dock organisation can help reduce unnecessary exposure between storage and transportation.

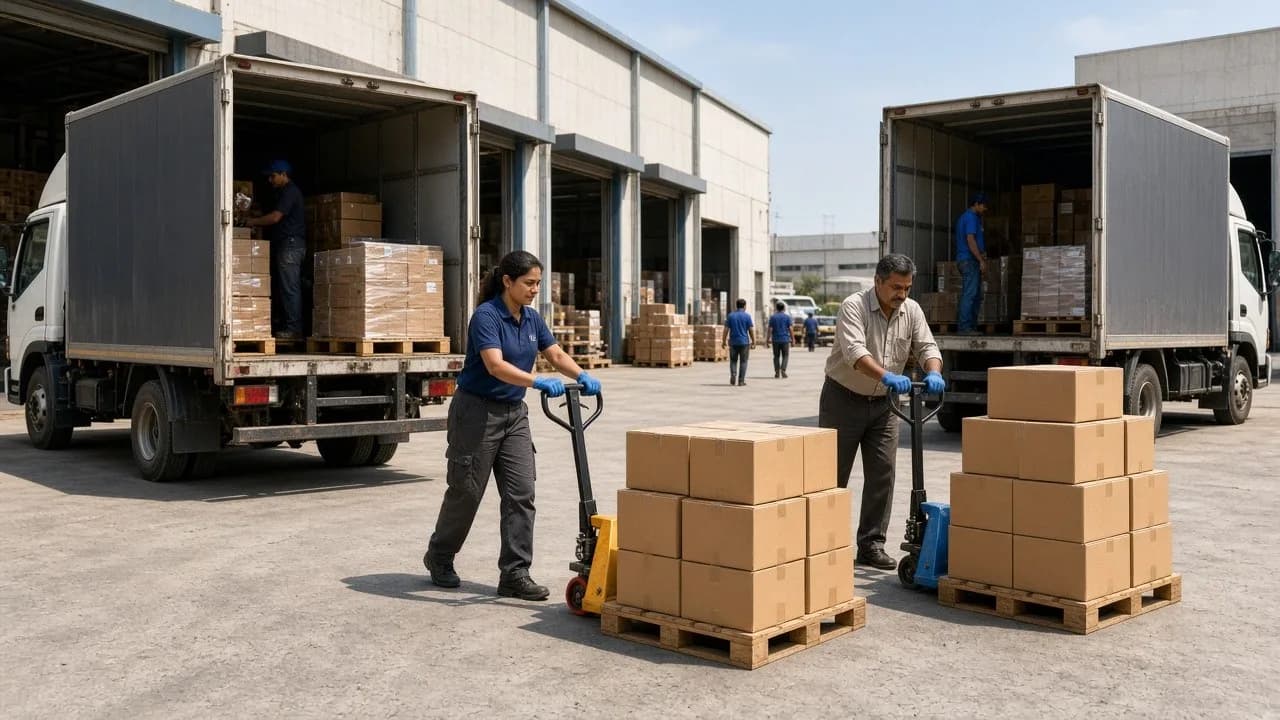

Cross Dock Movement
Some cold chain facilities move products from inbound vehicles to outbound routes with limited storage time. This operation creates concentrated product and door movement. Refrigeration and staging design should support fast handling without disrupting the main cold storage operation.
Refrigerated Transport
Temperature control may continue after products leave the warehouse. Dispatch planning should support efficient transfer into suitable refrigerated vehicles. This helps connect the cold storage facility with the next stage of the supply chain.
Swipe to move the product along the cold chain.
Storage by Product Requirement
Cold Storage Designed Around Your Logistics Mix
Cold chain warehouses often handle several product categories with different storage requirements, packaging formats and stock turnover rates. Uniref therefore starts with the actual product mix, pallet profile, storage density and operational flow before selecting the refrigeration system.

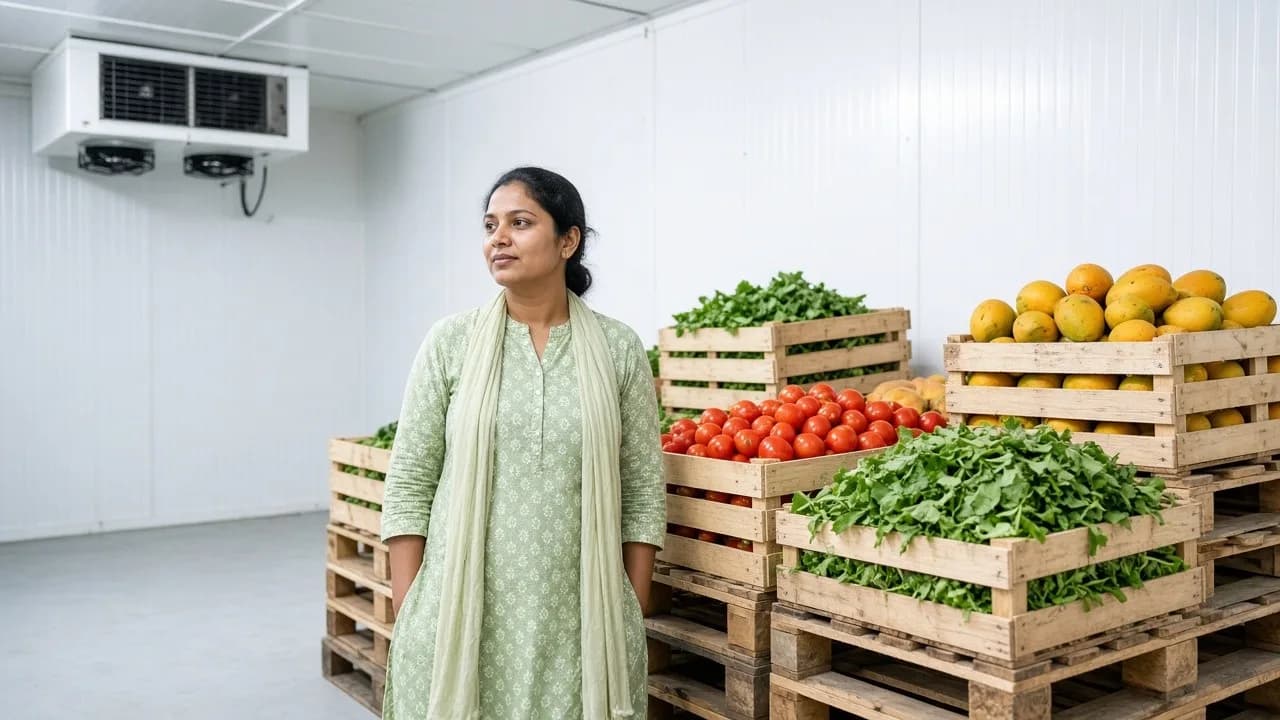

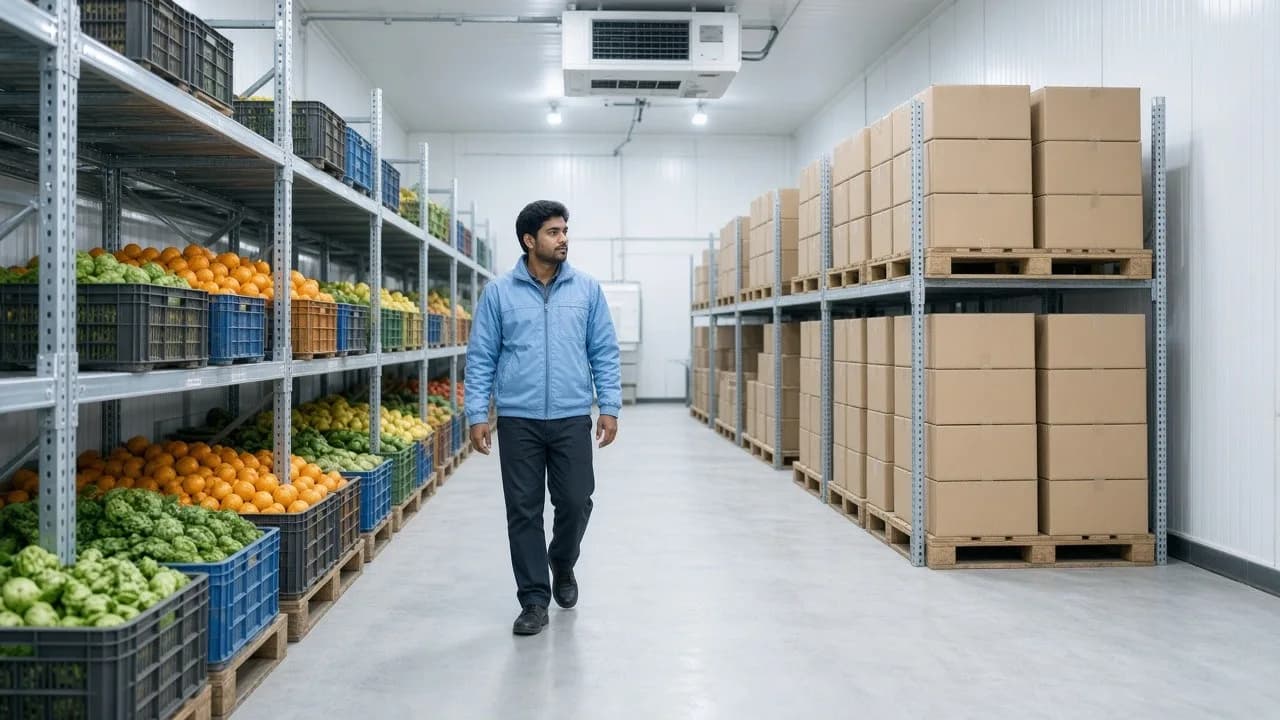

Fresh Produce
- Typical storage condition
- Fresh produce requires storage conditions based on the particular fruit or vegetable. One chilled room condition should not automatically be assigned to every produce category.
- Room type
- A chilled cold room may be used where controlled refrigerated storage is required.
- Airflow
- Conditioned air should circulate around crates, cartons and pallets without major obstruction.
- Product loading
- Stock rotation and frequent movement should guide rack and aisle planning.
- Suggested configuration
- A product specific chilled room with suitable airflow, controls and access.
The product specification, incoming condition, packaging, storage period and loading pattern determine the final room configuration.
Inside the Refrigeration System
Engineering Behind Reliable Cold Chain Storage
A logistics cold room is more than an insulated warehouse with cooling equipment. Panels, doors, refrigeration machinery, floors, piping, airflow and controls must work together according to the actual storage and traffic duty.
01 / 11
Insulated PUF and PIR Panels
01
Insulated PUF and PIR Panels
PUF panels and PIR panels create the insulated enclosure separating refrigerated space from warmer warehouse areas. Panel selection and thickness should match the required room condition and operating environment.
02

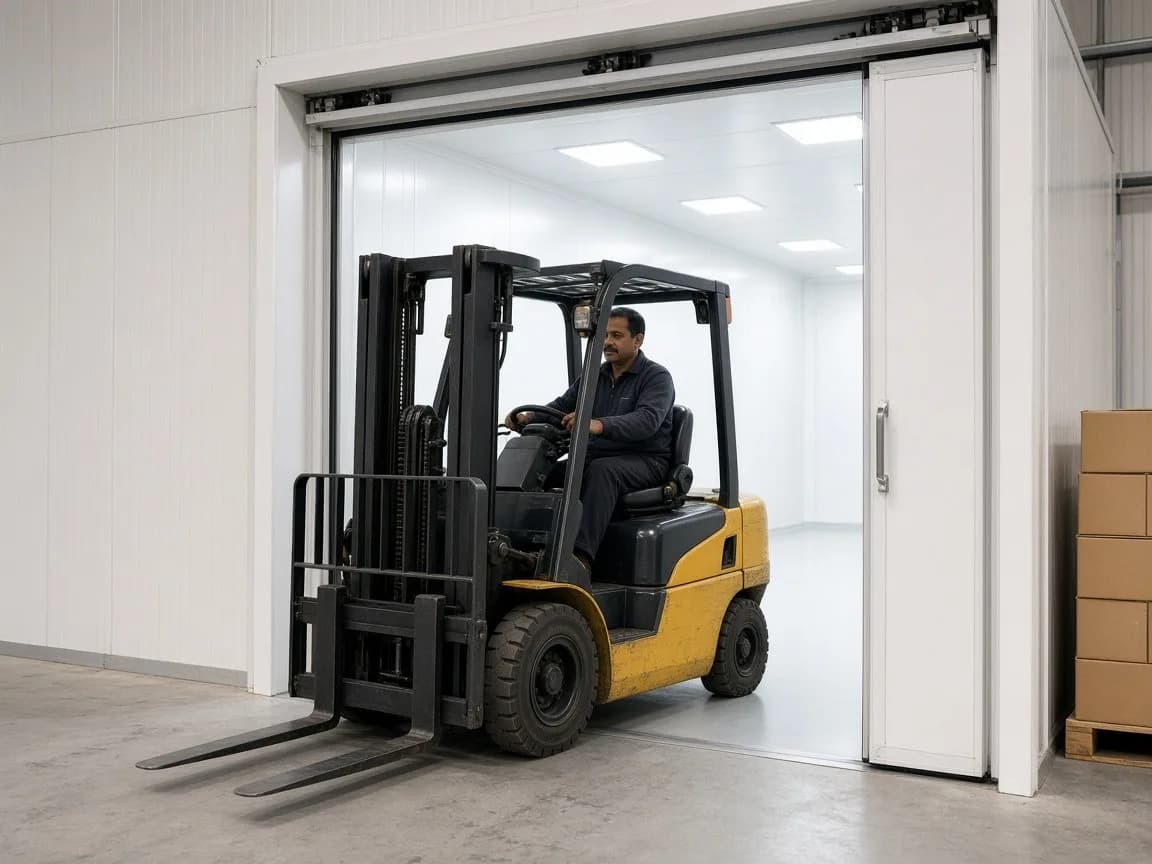

Cold Room Doors
Doors must support frequent pallet and personnel movement while limiting unnecessary heat and moisture entry. Dimensions should suit forklifts, pallet trucks and normal warehouse traffic.
03
Freezer Grade Doors
Low temperature logistics chambers require doors selected for freezer duty. Door construction and sealing should suit the room condition and usage frequency.
04

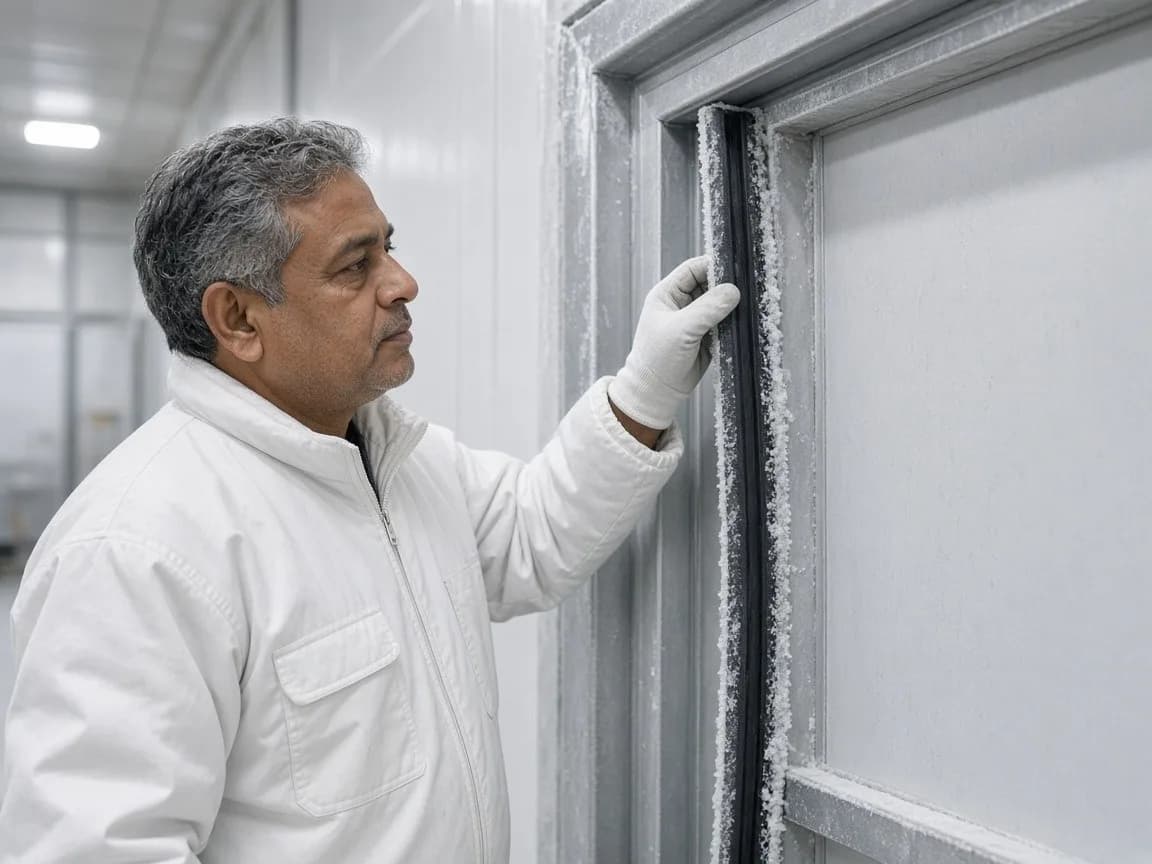

Door Frame Heating Where Required
Freezer doors can require frame heating where low temperature conditions create a risk of freezing around openings. This requirement should be assessed during engineering.
05

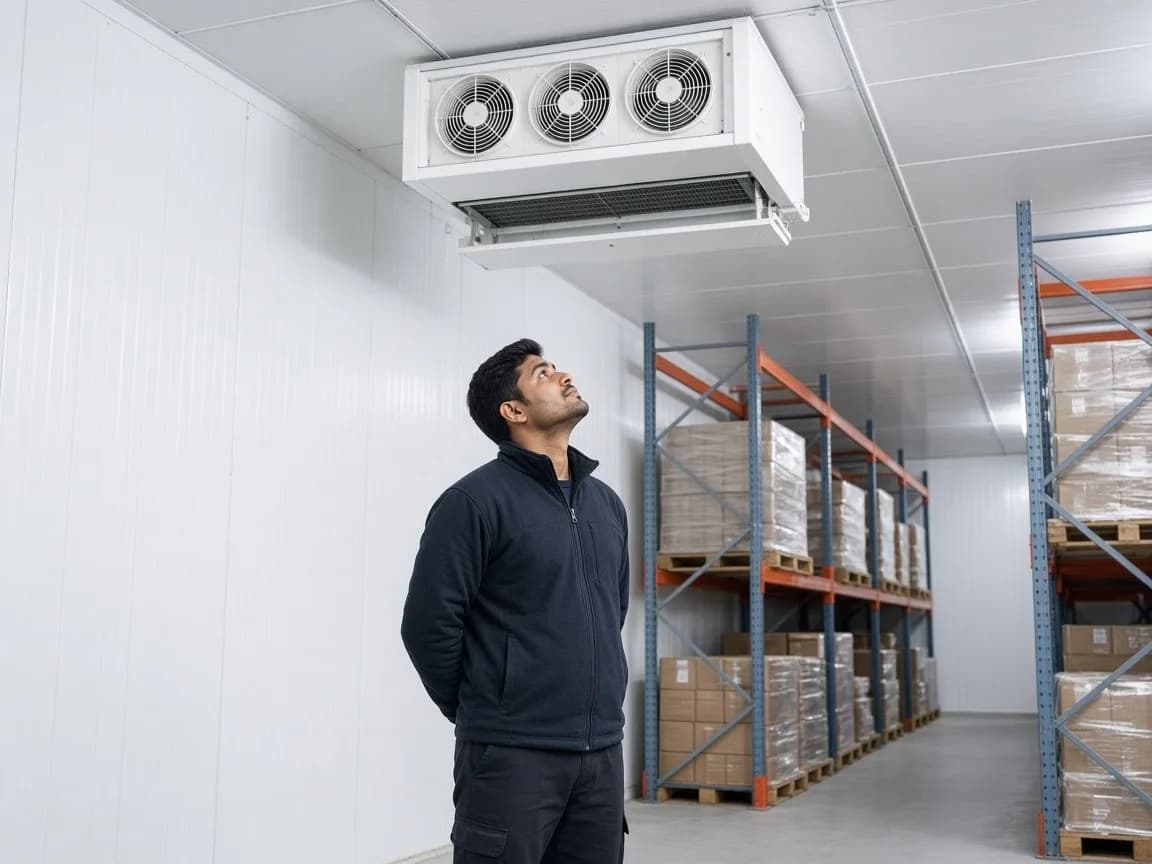

Evaporator
The evaporator removes heat and circulates conditioned air through the storage space. Capacity, fan arrangement and position should suit the room load, rack layout and warehouse geometry.
06

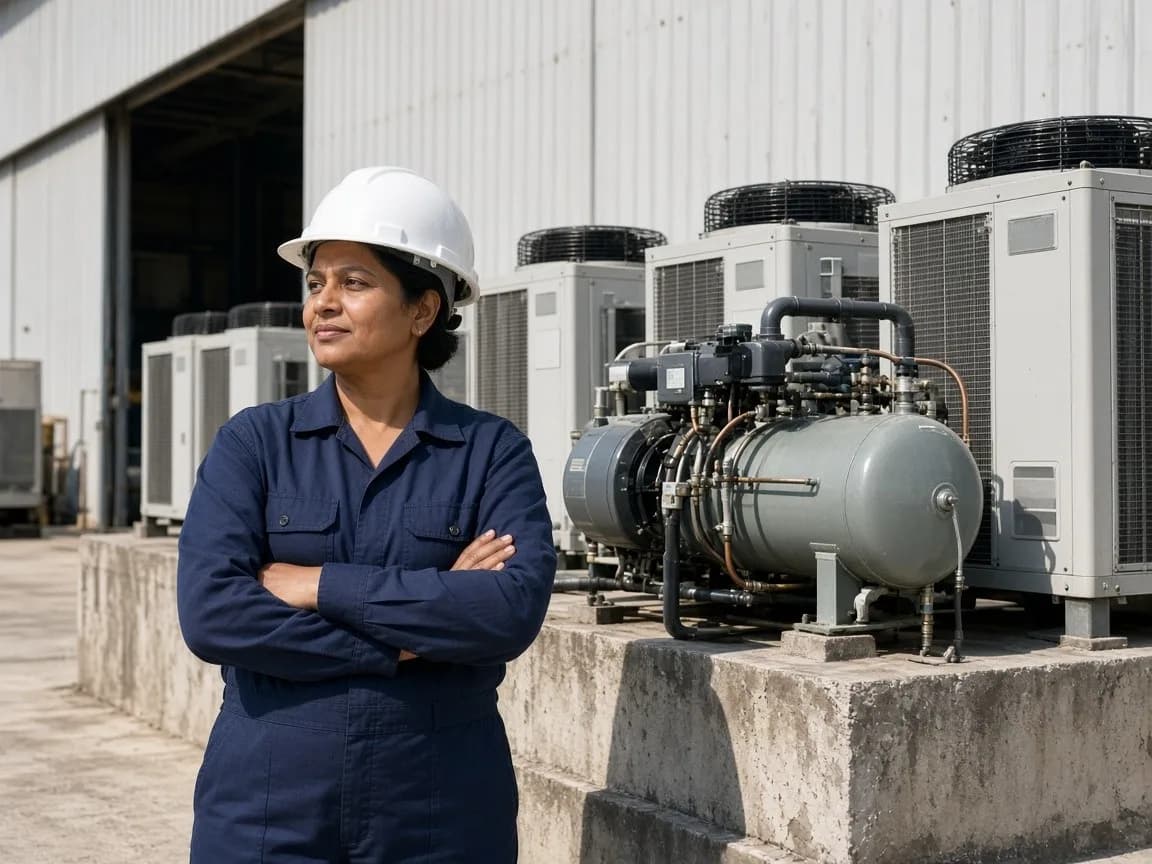

Condensing Unit and Compressor
The condensing unit and compressor provide the refrigeration duty required by the room. Chilled and frozen logistics chambers can place different demands on this equipment.
07

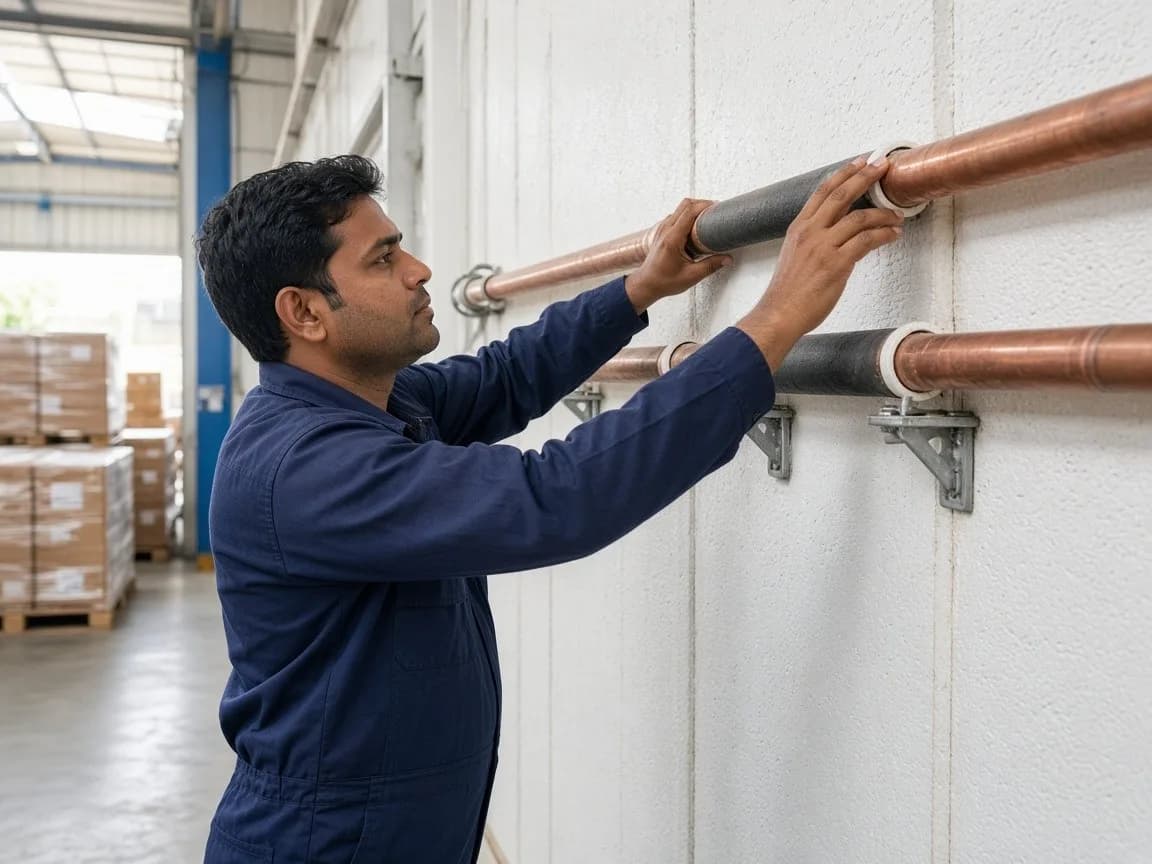

Refrigeration Piping
Correct piping supports refrigerant movement between system components. Pipe sizing, routing and insulation should follow the approved refrigeration design.
08

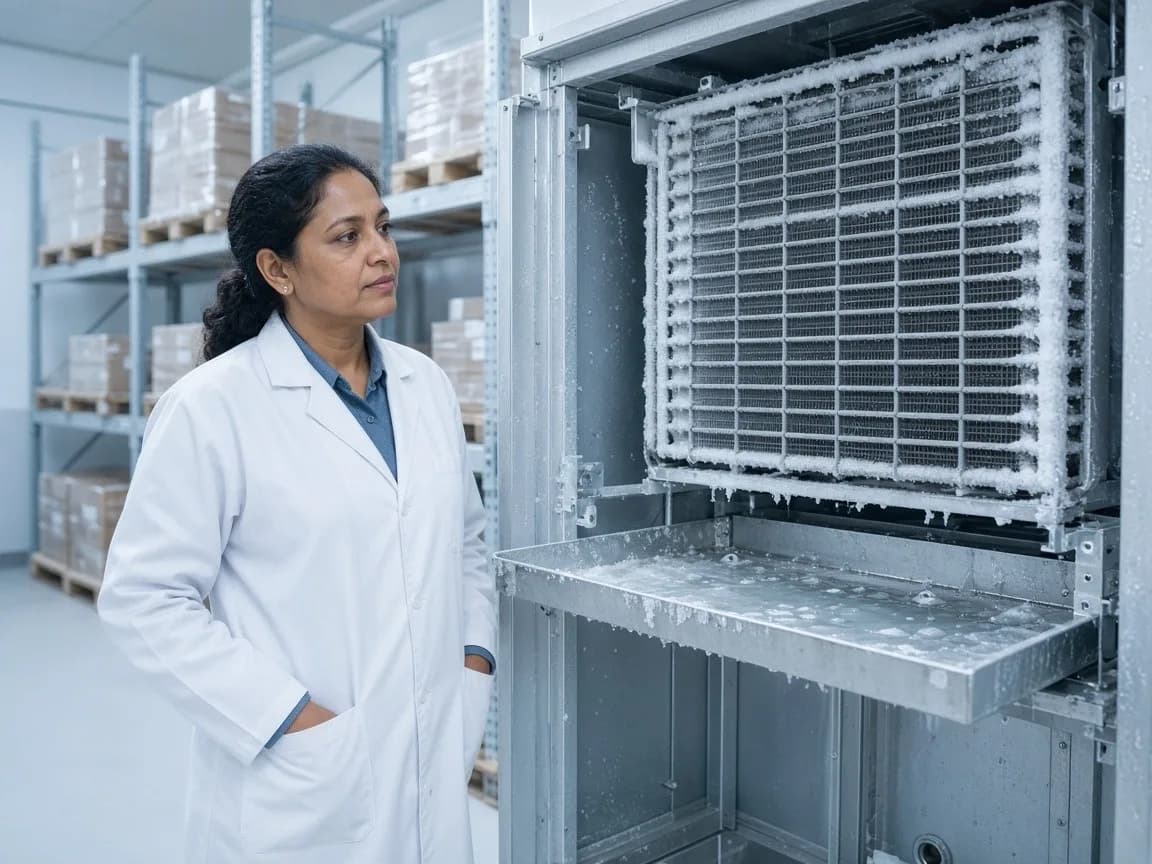

Defrost System
Moisture entering freezer rooms can freeze on evaporator coils. A suitable defrost strategy helps maintain airflow and heat transfer during operation.
09
Floor Insulation
Low temperature freezer chambers may require insulated floor construction. Floor requirements should be considered early during civil and refrigeration planning.
10

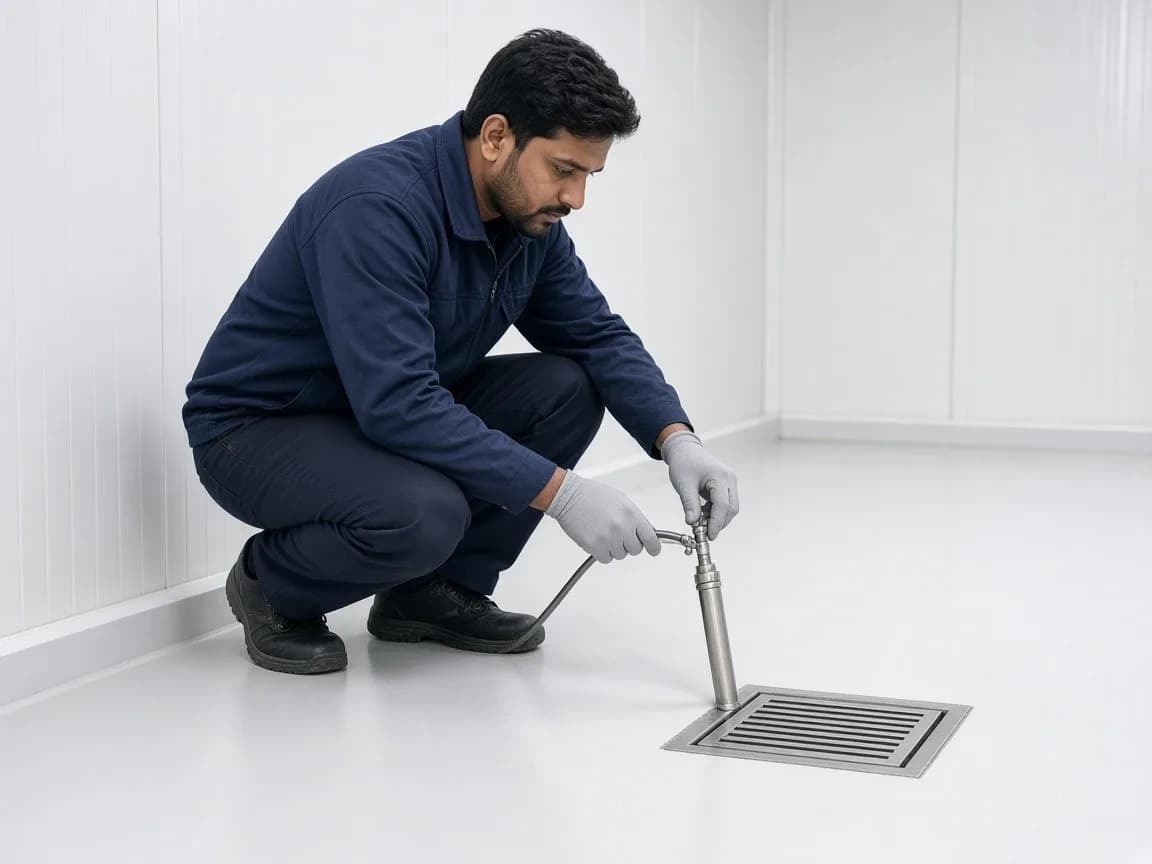

Drain Management
Water generated during defrost must leave the refrigeration area without creating freezing problems. Heated drains may be required where operating conditions call for them.
11

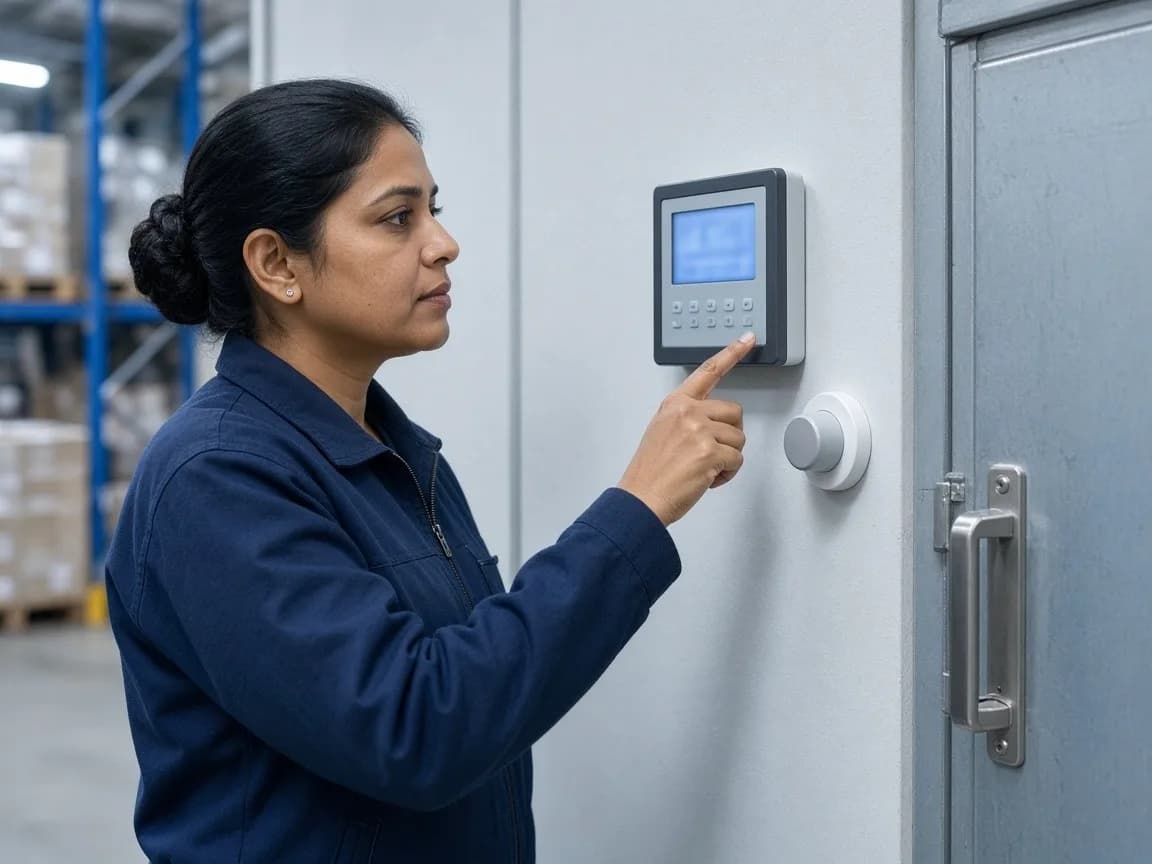

Temperature Controls, Sensors and Alarms
Controls help maintain selected room conditions. Sensors and alarms provide operators with visibility when configured limits are crossed.

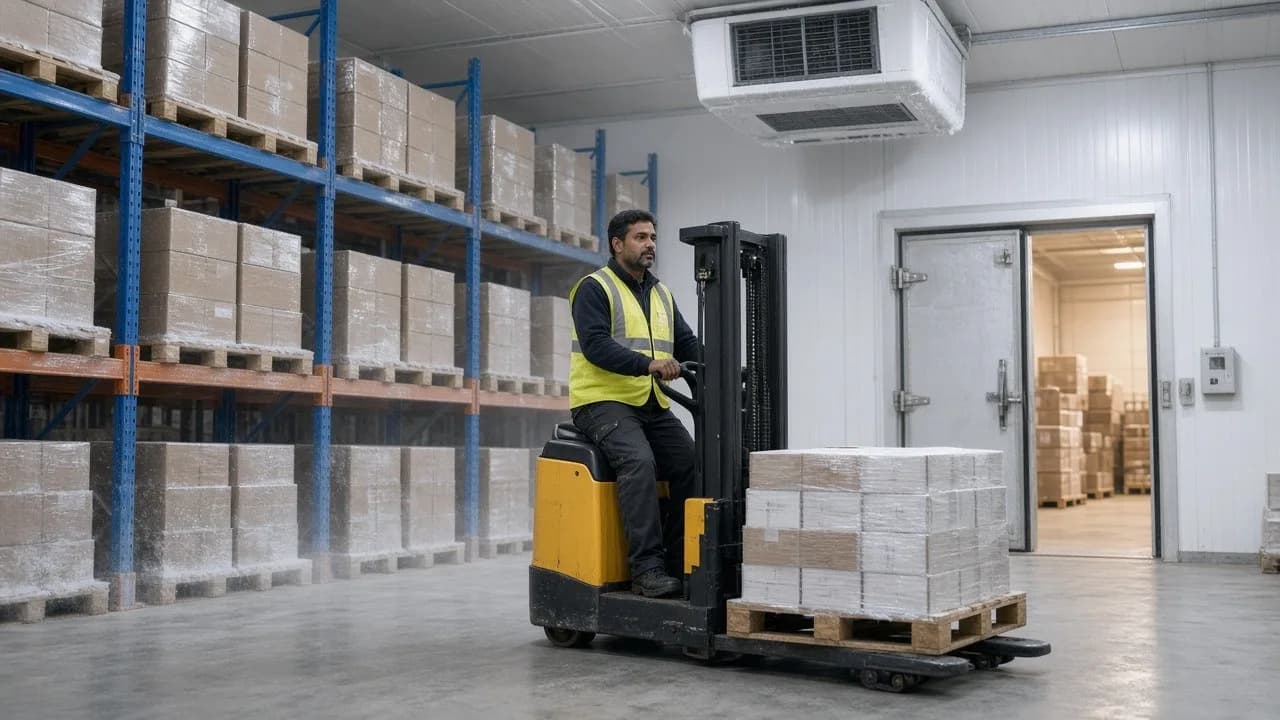

Airflow Through the Warehouse Load
Cooling Every Pallet, Not Just the Room
A room sensor can indicate the expected condition while a pallet behind a restricted airflow path experiences something different. Logistics cold room planning must therefore consider how conditioned air moves through racks and high density pallet storage.

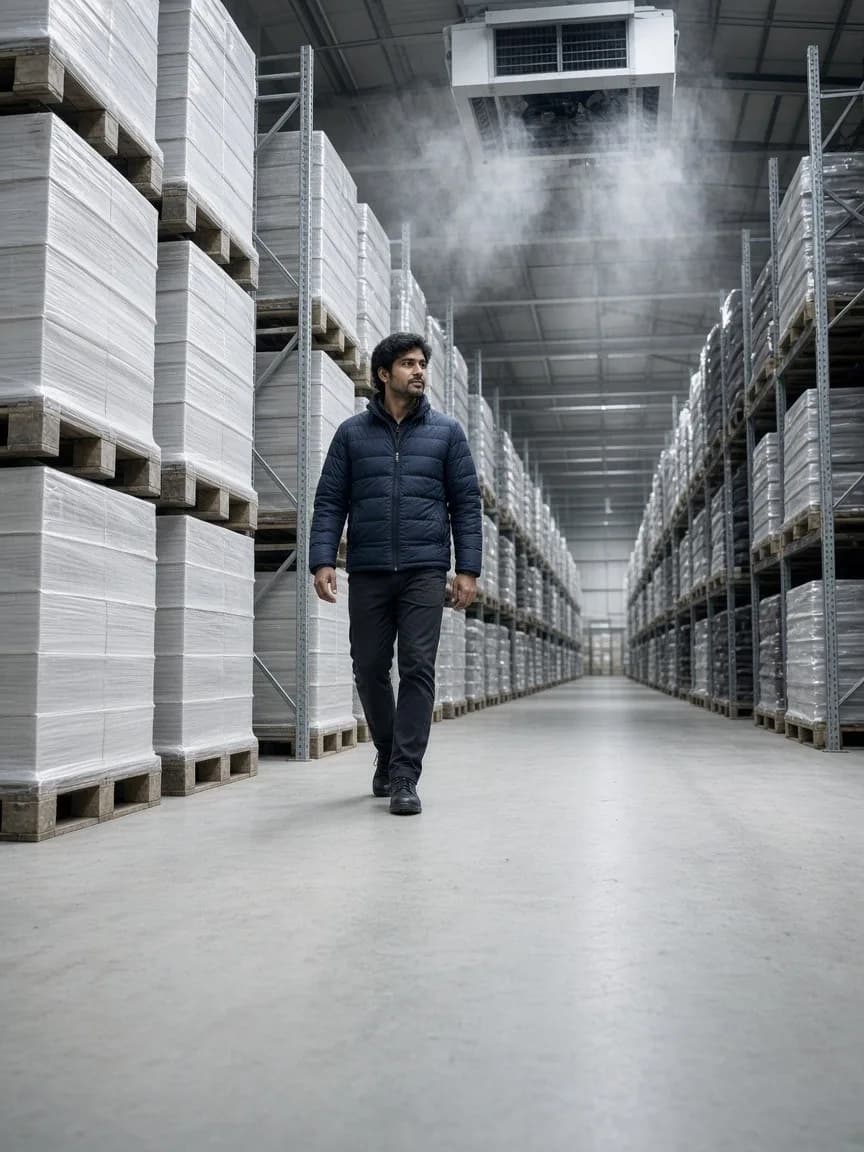

Pallet Spacing
Suitable spacing creates paths for conditioned air around stored goods. Pallets placed tightly together or directly against walls can restrict circulation.
Evaporator Placement
The evaporator should be positioned with room shape, racking and product load in mind. Poor placement can leave some warehouse areas with limited airflow.
Air Throw and Return
Conditioned air needs a clear route from the evaporator through the storage area and back toward the return side. Both directions matter during rack planning.
Blocked Airflow
Tall pallets, oversized cartons and poorly positioned racks can interrupt circulation. Layout planning should identify these barriers before operations begin.
Rack Height
High racking changes the available airflow path inside a warehouse. Evaporator placement and air throw should therefore be coordinated with rack height.
Loading Pattern
Warehouse occupancy changes as products arrive and leave. Refrigeration planning should consider normal and high storage conditions rather than only an empty facility.
Hot Spots
Areas behind dense loads, around structural columns or near doors can behave differently from open zones. These locations should be considered during sensor planning.
Door Movement
High traffic chambers can experience repeated door openings. Internal routes should support fast forklift movement while limiting unnecessary open time.
Built for Indian Logistics Operations
Designed for Indian Operating Conditions
Cold chain warehouses in India can operate through high outdoor temperatures, intense loading schedules and long distribution hours. Refrigeration design should consider both the internal product requirement and the wider logistics environment.
Outdoor and warehouse side conditions
The refrigeration system must reject heat removed from the room while operating under the ambient conditions expected at the project location.
Refrigerated storage conditions
Inside each chamber, insulation, refrigeration equipment and airflow work together to maintain the selected product environment.
Any temperature or door animation shown on the page is only a visual representation and does not indicate a measured recovery time.

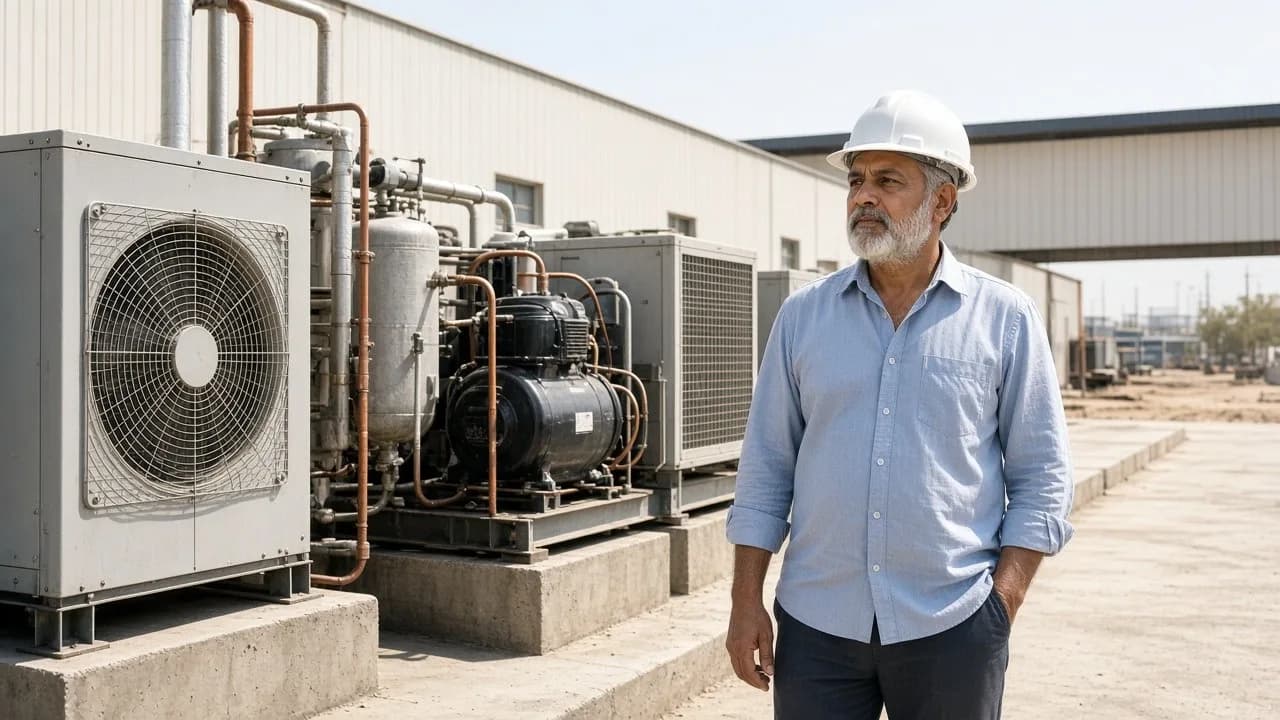

High Outdoor Ambient
High outdoor temperatures can increase the duty placed on refrigeration equipment. Equipment selection should consider the conditions expected at the installation site.
Frequent Loading and Unloading
Logistics facilities may operate with repeated truck arrivals throughout the day. Door positions and traffic flow should reflect this high movement pattern.
Long Compressor Hours
Cold chain warehouses can require extended refrigeration operation. Components should be selected for the calculated duty and expected operating schedule.
Indian Warehouse Layout
Existing columns, loading docks, ceiling heights and rack systems can influence room design. Engineering should fit the refrigeration system into the actual warehouse.
Seasonal Heat
Ambient conditions vary across seasons and regions in India. Refrigeration planning should consider relevant project conditions rather than only moderate weather.
Distribution Traffic
Forklifts and pallet trucks can create concentrated traffic around cold room entrances. Ante rooms and practical routes can help reduce direct exposure between spaces.
Dust and Industrial Conditions
Refrigeration equipment requires suitable installation and service access within warehouse environments. Surrounding dust and operational activity should be considered.
High Pallet Density
Large distribution centres may use dense or high rack storage. Refrigeration and airflow planning should account for the expected occupied condition.
Plan Your Requirement
What Does Your Cold Chain Facility Need?
The planner helps identify which type of refrigerated storage may suit your logistics operation. It suggests a room category based on products, pallet volumes and operating requirements but does not calculate a project price.
01 / 06
Why Work With Uniref
Cold Room Expertise Built Around Your Logistics Operation
Uniref designs, manufactures, supplies, installs and commissions custom cold rooms and refrigeration systems. Panel manufacturing is carried out in Bengaluru and Mumbai, engineering coordination is from Jaipur, and installation is available across India.
Product Specific Design
The system starts with the products being handled rather than a standard warehouse package. Storage conditions, pallet volumes, access and distribution patterns are considered during planning.
Chilled and Frozen Engineering
Cold chain operations can require both chilled and frozen chambers. Uniref considers insulation, doors, equipment, floors, airflow and defrost according to each duty.
Complete System Integration
A refrigerated warehouse includes more than insulated panels. Uniref coordinates the enclosure, refrigeration equipment, piping, controls and installation as one complete solution.
Indian Operating Experience
The design process considers local ambient conditions, warehouse layouts and the way Indian logistics businesses receive, store, pick and dispatch products.
Flexible Facility Planning
Cold chain businesses may require chilled rooms, freezer rooms, multi temperature storage, ante rooms and staging areas. These spaces can be planned around the wider logistics flow.
After Sales Support
Refrigeration systems require inspection, maintenance and technical attention throughout their operating life. Uniref provides after sales support according to the installed system and requirement.
Cold Chain and Logistics Cold Room FAQs
The correct room depends on the products and their required storage conditions. A logistics facility may need chilled rooms, freezer rooms or several separate chambers. The final configuration should follow the actual product mix.
