Door openings
Frequent movement between processing, storage and dispatch allows warm air and moisture to enter refrigerated areas.
Dairy and Ice Cream Refrigeration Solutions
Cold Room Manufacturer for Dairy & Ice Cream
Uniref designs and installs chilled rooms, freezer rooms, cold storage systems and refrigeration solutions for dairies, ice cream manufacturers, processors, distributors, warehouses and cold chain operators across India. As a cold room manufacturer for dairy & ice cream operations, we engineer each system around the product, required condition, storage load, processing flow and operating environment.
Room temperature
+32°C
The visual represents a refrigerated room moving toward its required operating condition, while the final setpoint is confirmed from the dairy or ice cream product specification.
The Dairy Refrigeration Challenge
Dairy and Ice Cream Need More Than Just a Cold Room
Dairy and ice cream facilities handle products at different stages of processing, cooling, freezing, storage and dispatch. Incoming product temperature, frequent door openings, stock movement and long operating hours can all change the refrigeration load inside the facility.
01
Product heat entering
Milk based products, ingredients or packaged goods can enter the refrigerated space above their required holding condition. The refrigeration system must remove this additional heat while maintaining the condition of products already stored inside.
02
Temperature rise
Door movement, people, lights, pallets and regular loading activity add heat to refrigerated spaces. Equipment selection should therefore consider the actual operating load rather than only the empty room volume.
03
Moisture and frost risk
Warm humid air can enter through doors and connected working areas. In low temperature ice cream storage, this moisture may contribute to frost on coils, doors and other cold surfaces.
04
Cooling system compensating
The refrigeration system must respond to changing loads throughout production and distribution. Correct evaporator, condensing unit, compressor, airflow and control selection helps maintain suitable conditions during regular operation.
Product load
The quantity, packaging and incoming condition of dairy or ice cream products influence the refrigeration duty.
Airflow path
Closely packed cartons, crates and pallets can restrict conditioned air from reaching the complete stored load.
Low temperature duty
Ice cream storage requires refrigeration equipment and room construction selected specifically for low temperature operation.
Rooms for Dairy and Ice Cream Operations
Choose the Right Refrigeration System for Each Duty
Dairy and ice cream facilities can require different rooms for ingredient storage, chilled products, frozen products, staging and distribution. Uniref configures each space according to its actual refrigeration duty instead of applying one specification throughout the facility.

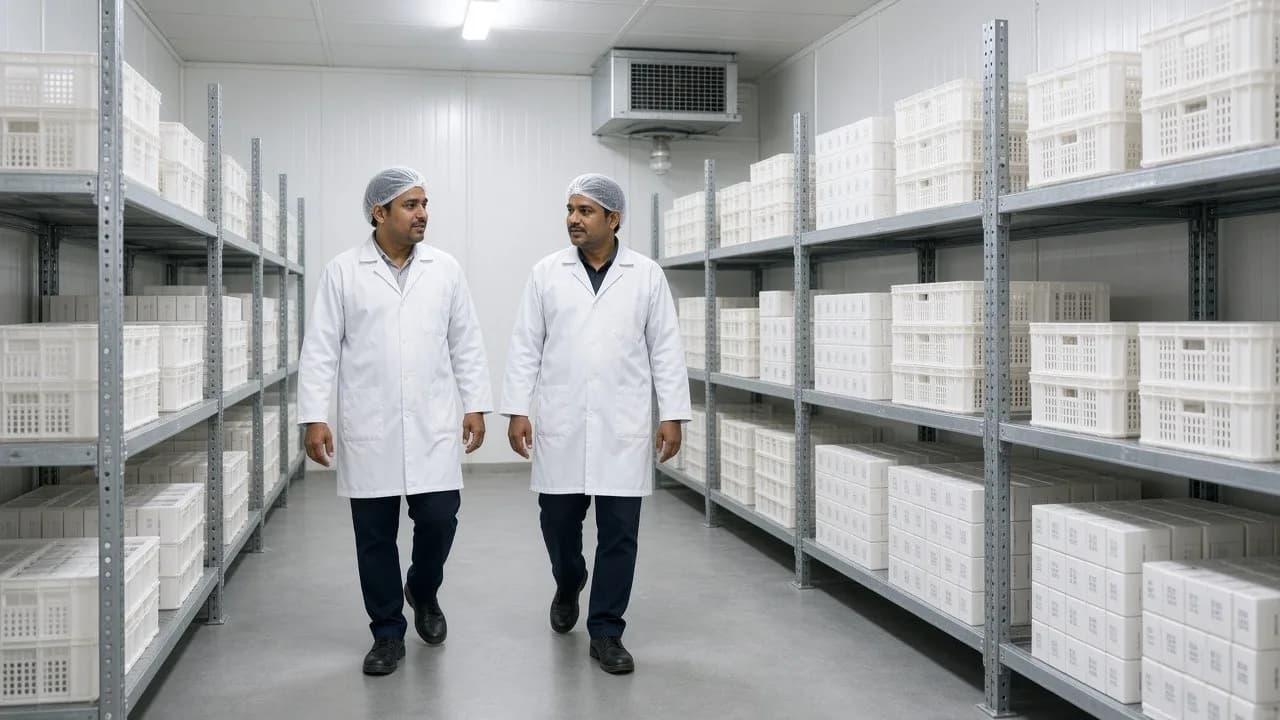

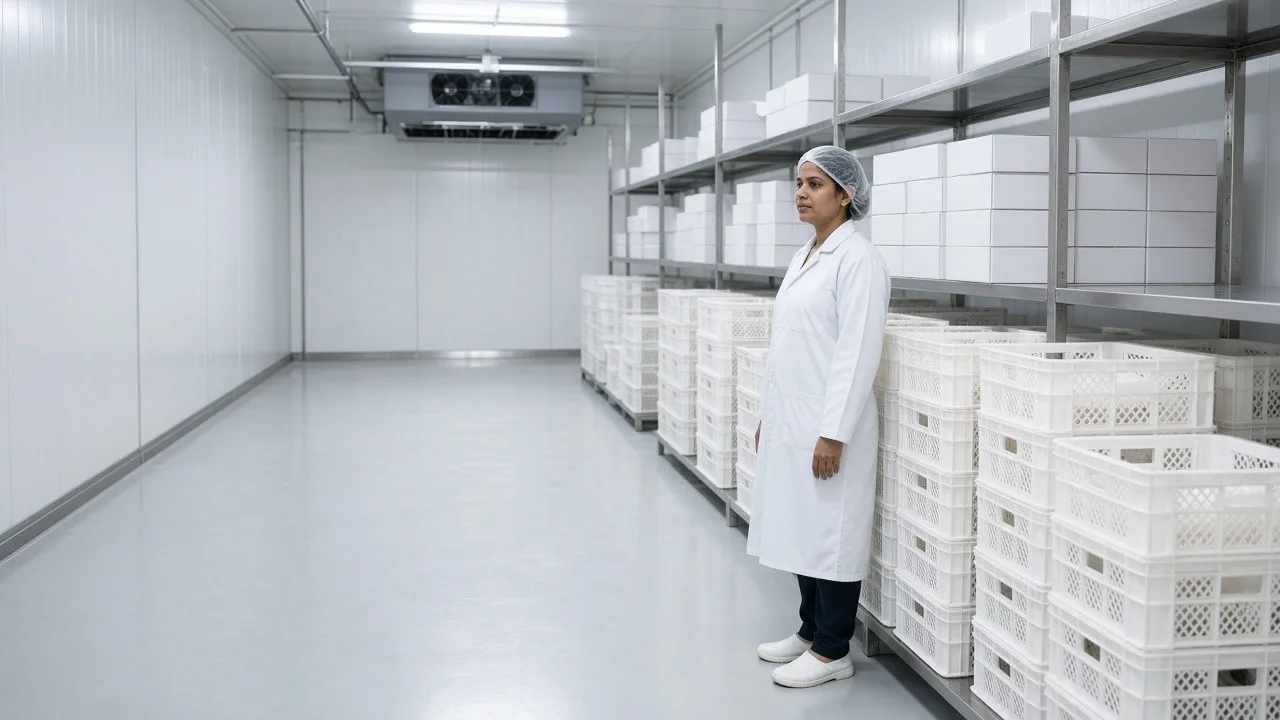

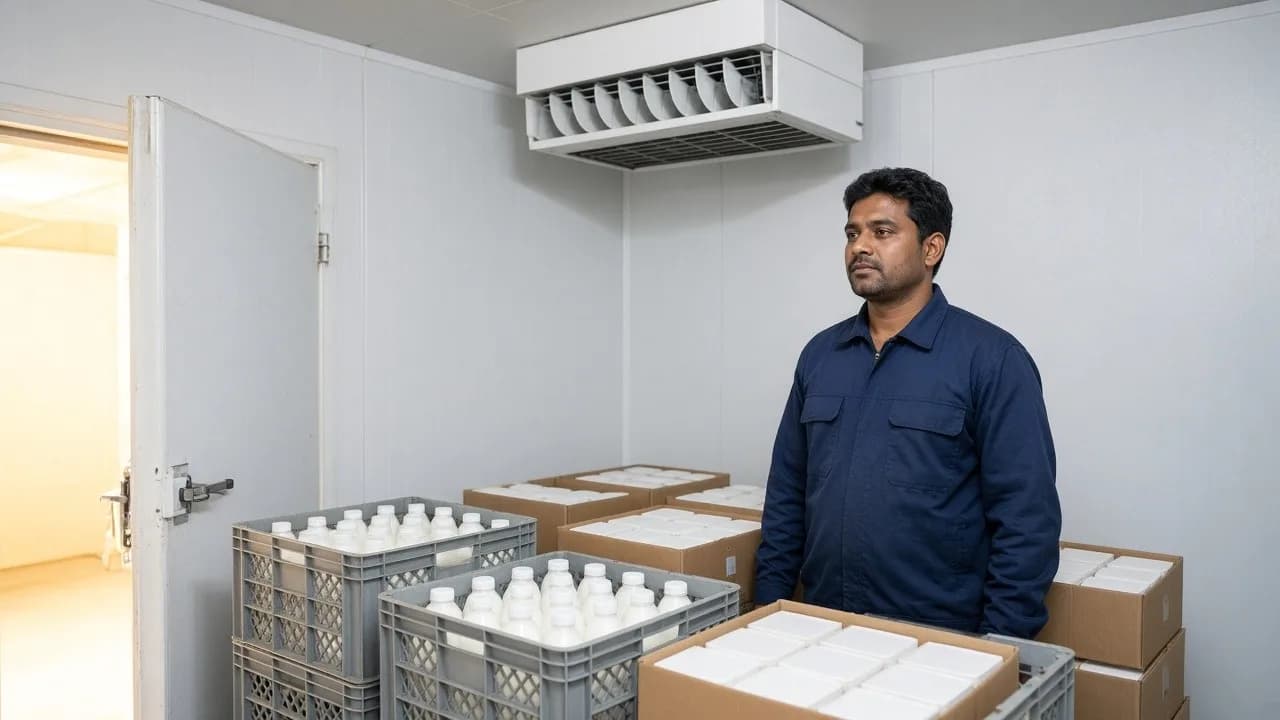

Chilled Cold Rooms
- Typical use
- Controlled storage of dairy products, ingredients and packaged goods that require refrigeration without frozen holding.
- Temperature
- The required condition depends on the specific dairy product and approved storage specification. One generic chilled setpoint should not be assigned to every product.
- Suitable operation
- Suitable for dairy processors, milk product manufacturers, distribution centres and refrigerated warehouses.

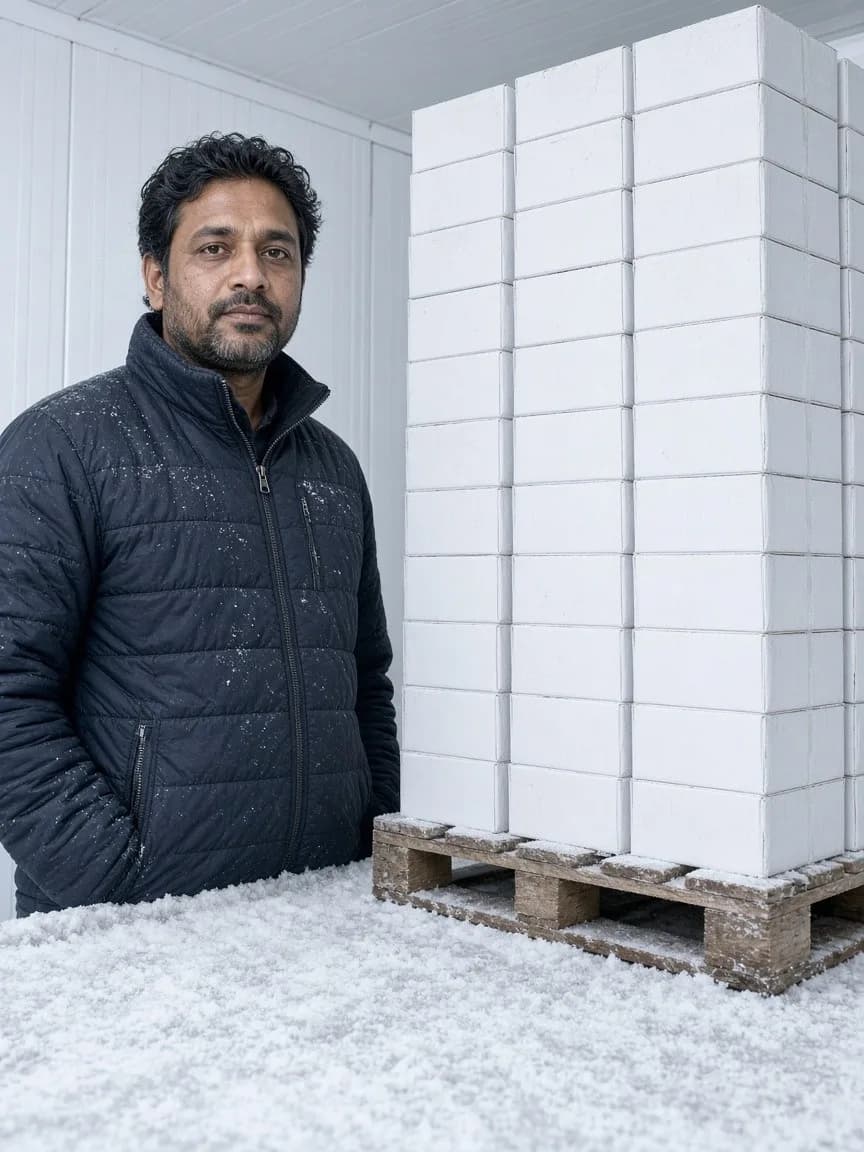

Ice Cream Freezer Rooms
- Typical use
- Low temperature holding of packaged ice cream after production and freezing are complete.
- Temperature
- Ice cream requires a frozen room and equipment selected for low temperature duty. The final setpoint must come from the product specification rather than one generic value.
- Suitable operation
- Suitable for ice cream manufacturers, distributors, cold stores and frozen dessert businesses.

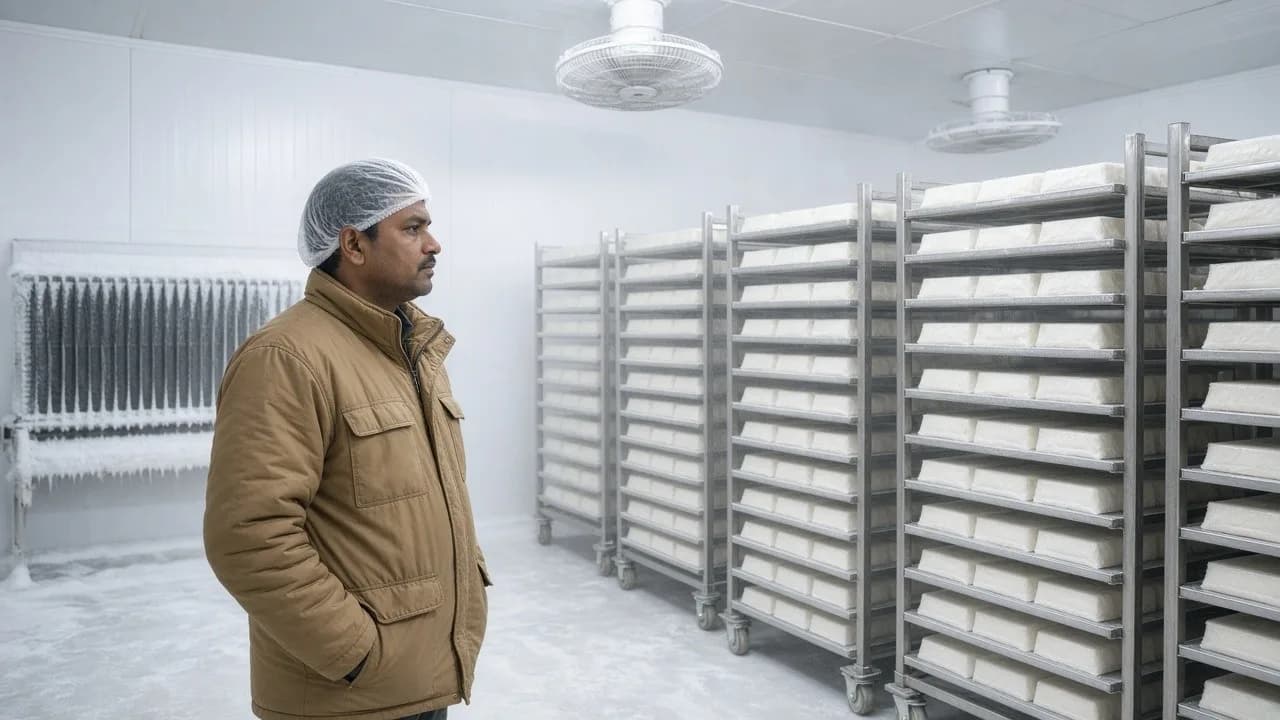

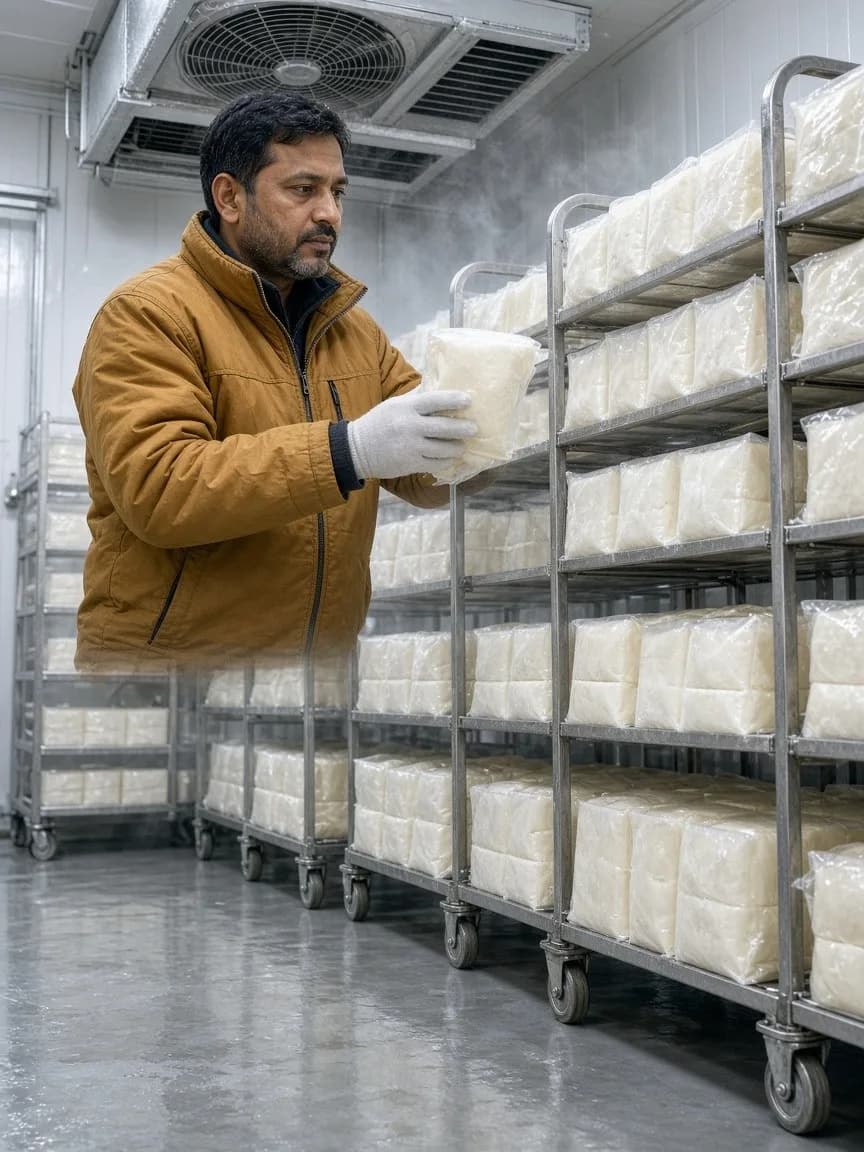

Blast Freezers
- Typical use
- Rapid removal of product heat where the production process requires a dedicated freezing stage.
- Temperature
- Blast freezing conditions depend on the product, thickness, packaging and batch. Blast duty should be calculated separately from later frozen holding.
- Suitable operation
- Suitable for manufacturers that need rapid freezing before products move into low temperature storage.

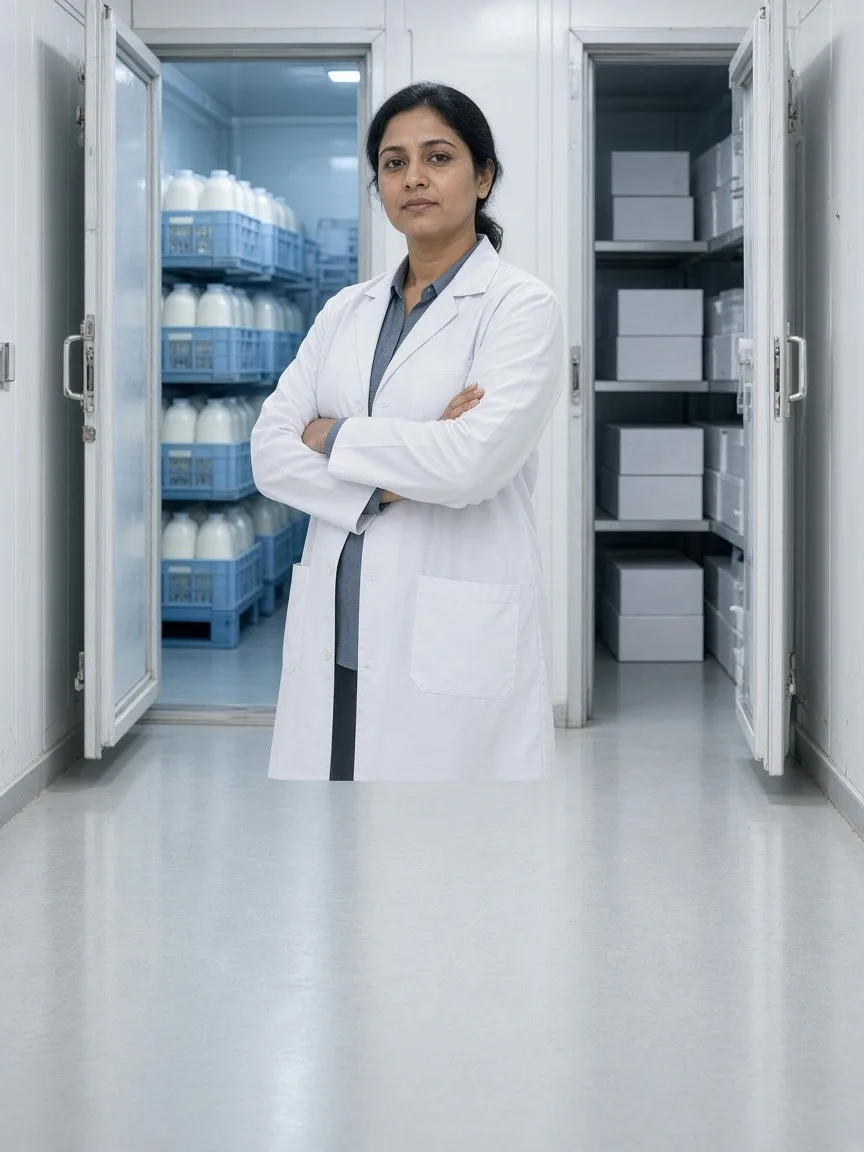

Multi Temperature Cold Rooms
- Typical use
- Facilities handling chilled dairy products and frozen ice cream within the same wider operation.
- Temperature
- Each chamber receives its own design condition according to the product stored inside it. A chilled chamber and freezer chamber should not share one refrigeration specification.
- Suitable operation
- Suitable for dairies, distributors, multi product warehouses and food processing facilities.

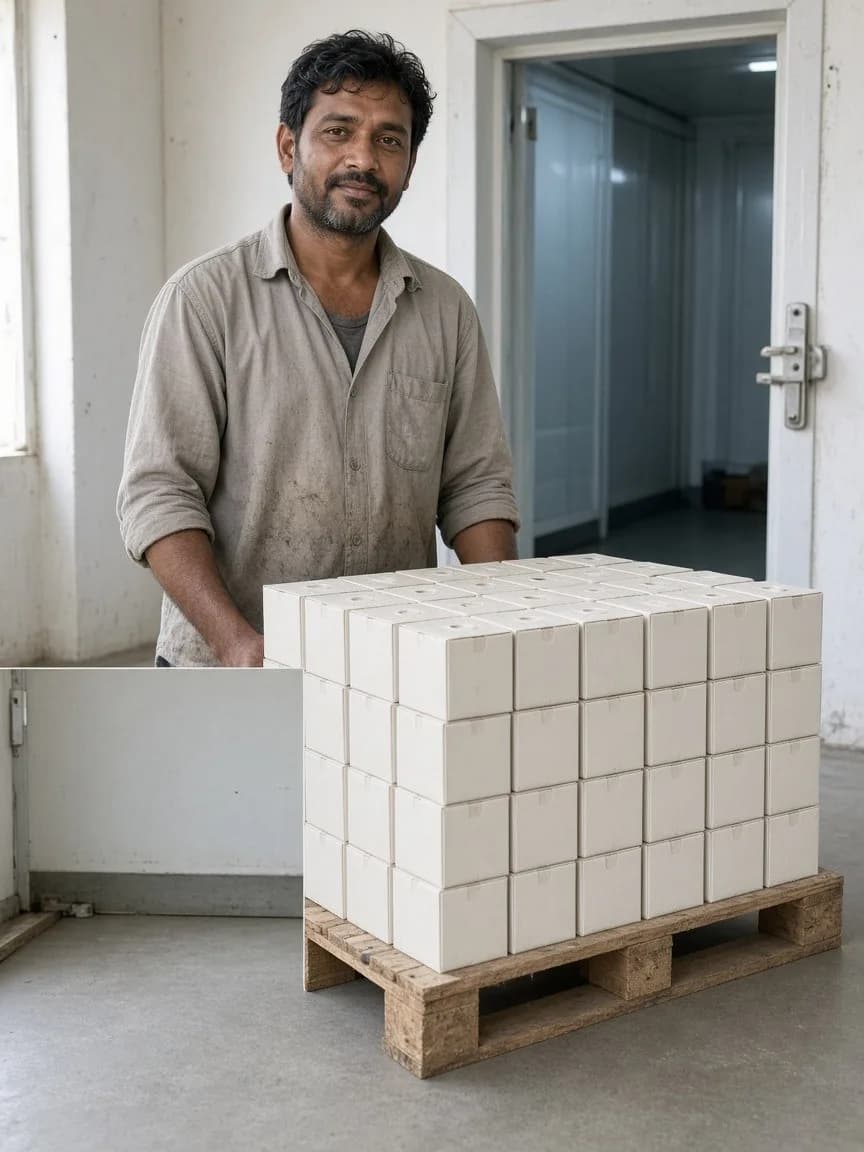

Ante Rooms
- Typical use
- A controlled transition space between processing, loading or warehouse areas and the main chilled or freezer room.
- Temperature
- An ante room acts as a buffer between spaces. It should not automatically be treated as another product storage temperature.
- Suitable operation
- Suitable for facilities with frequent receiving, picking, pallet movement and dispatch.
From Processing to Dispatch
Cooling at Every Stage of the Dairy and Ice Cream Journey
Dairy and ice cream products can move through several refrigerated stages before reaching distribution. Refrigeration planning should therefore consider processing, cooling, freezing, storage, picking and dispatch as connected parts of one cold chain.

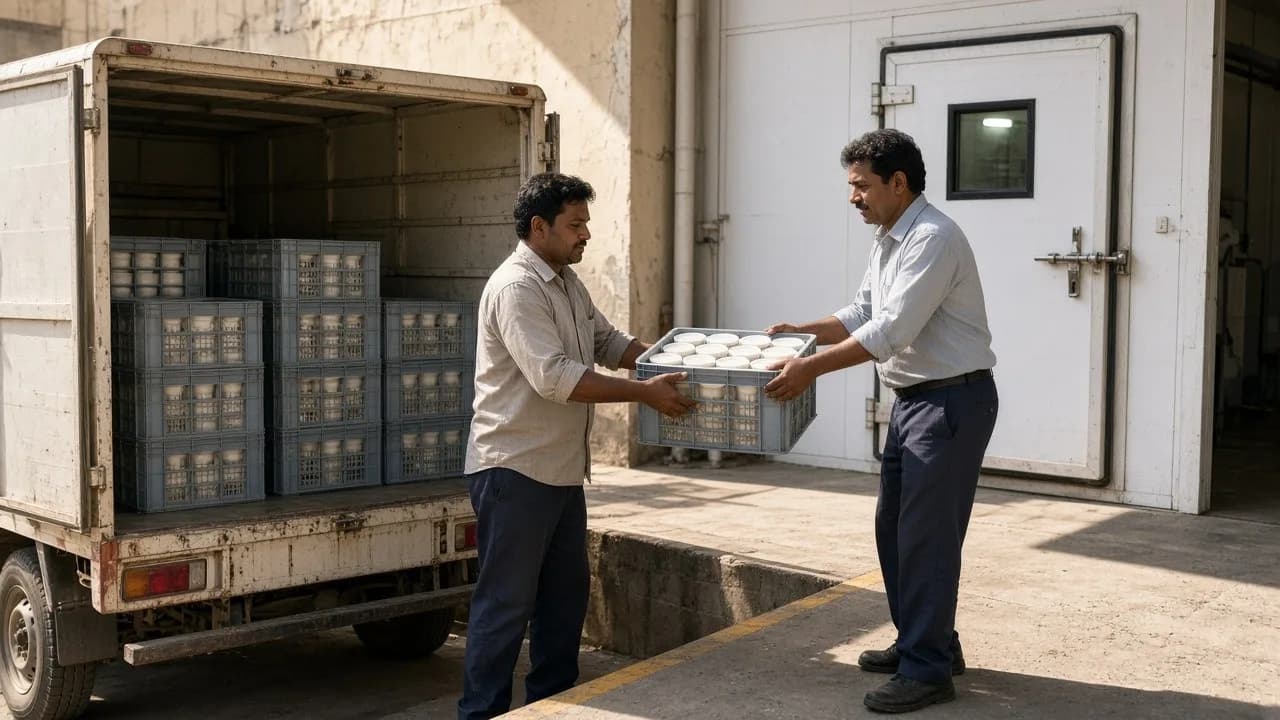

Ingredient Receiving
Ingredient Receiving
Ingredients can enter the facility under different storage conditions depending on the product. The receiving process should support quick movement into the appropriate chilled, frozen or processing area. The incoming condition also influences how much heat the refrigeration system may need to remove.

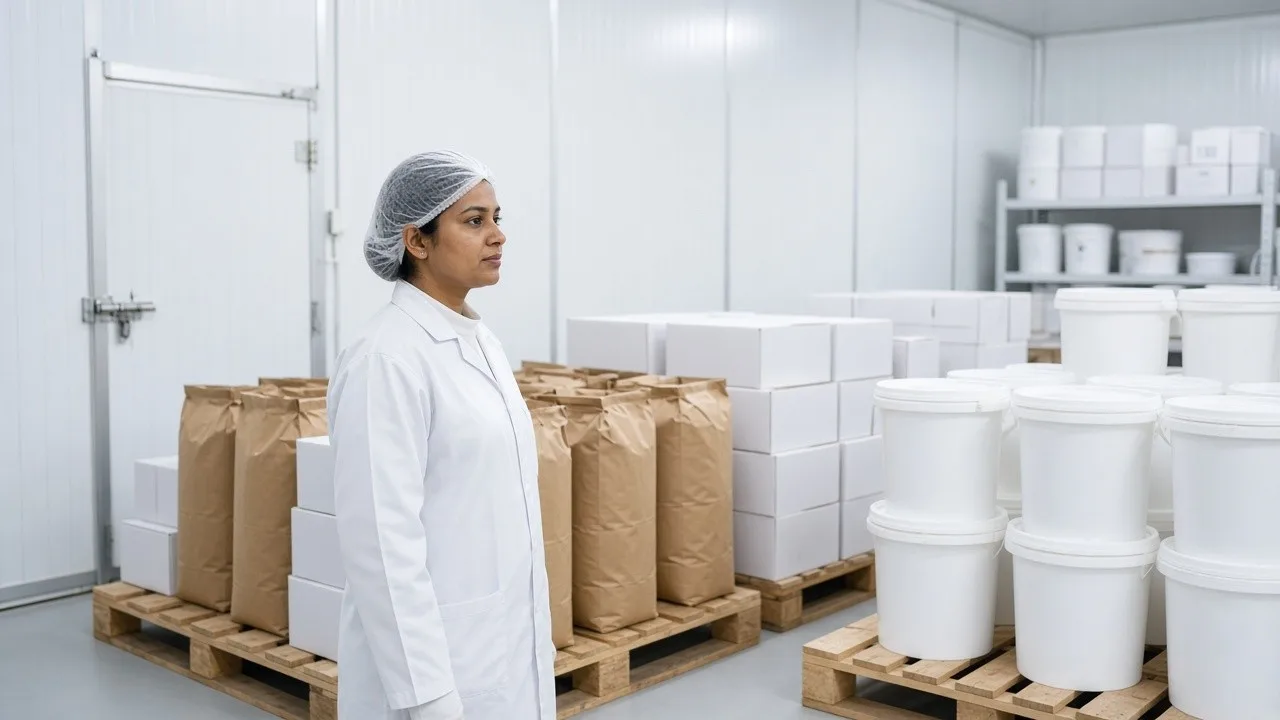

Ingredient Storage
Some dairy and ice cream ingredients require controlled refrigeration before production. Their storage area should be planned around the product specification, packaging and frequency of access. Ingredient storage may perform a different duty from finished product holding and should be designed separately where required.

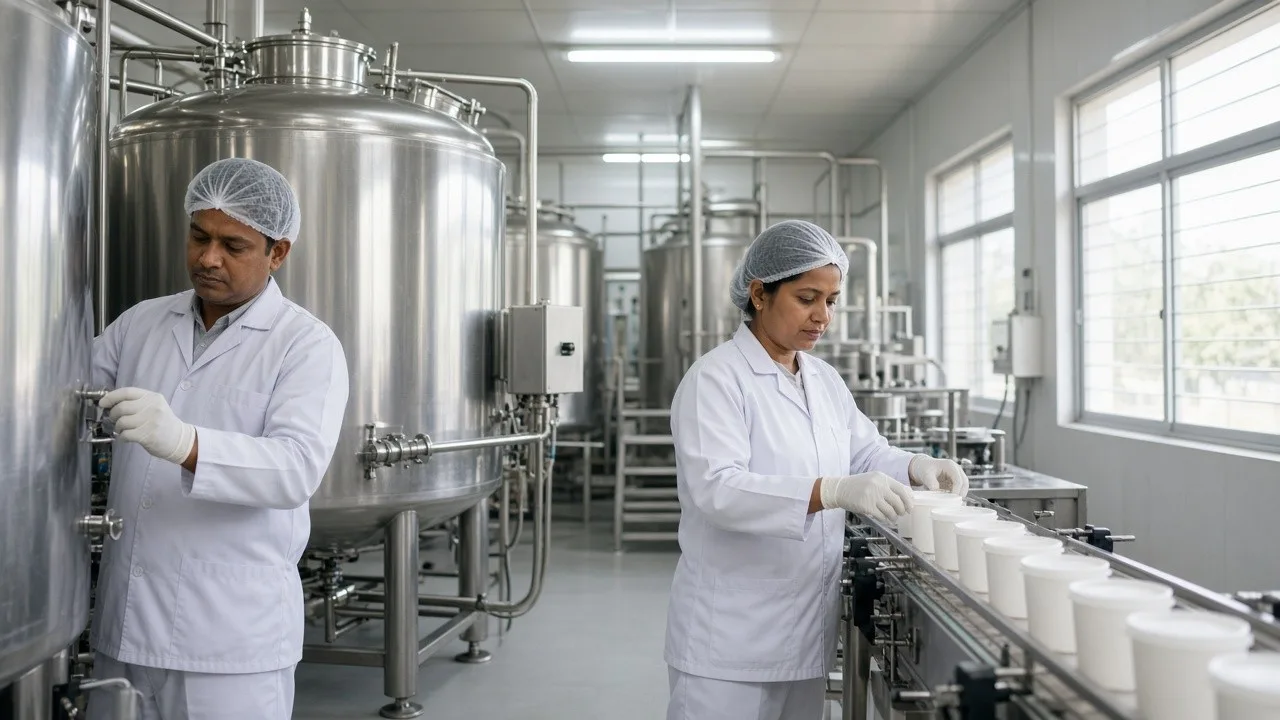

Processing
Dairy processing areas can involve people, equipment and continuous product movement. These factors can introduce additional heat into controlled production spaces. The refrigeration requirement should therefore reflect the real process rather than simply copying a finished goods room specification.

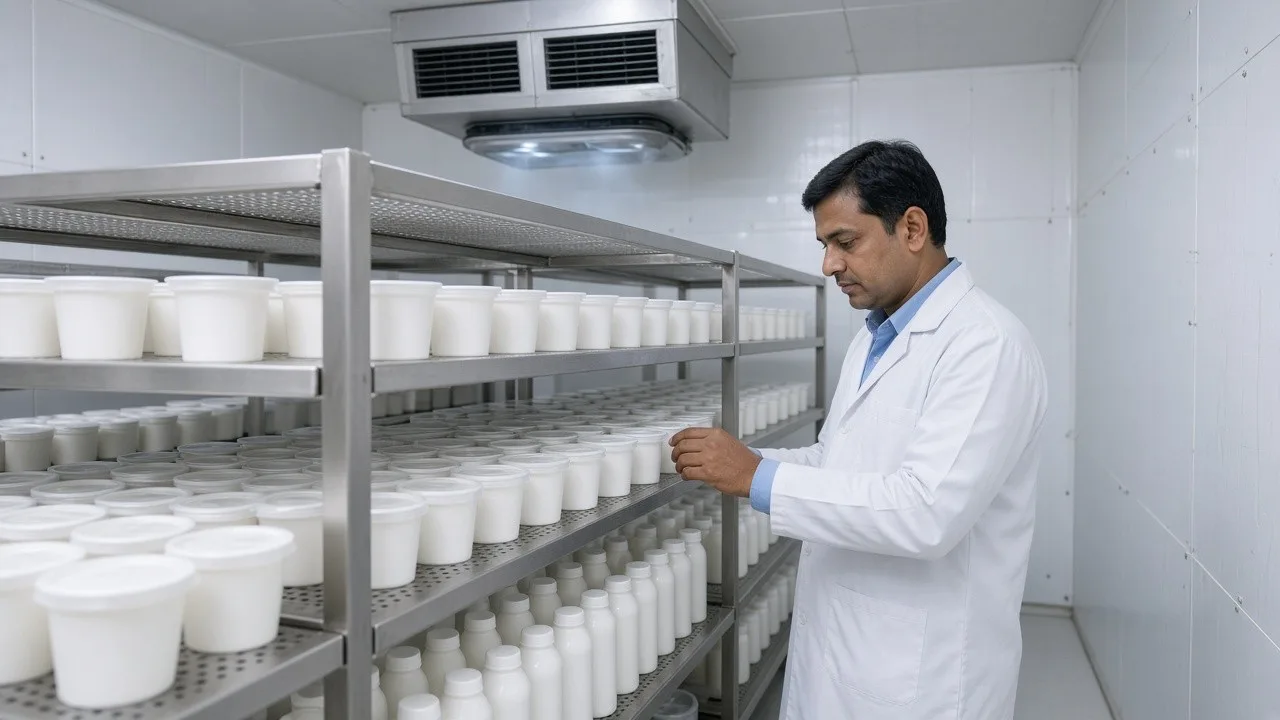

Cooling
Products may need controlled cooling before packaging or further processing. The required process depends on the dairy product, production stage and incoming condition. This cooling duty should be assessed separately from long term storage.
Freezing
Ice cream and other frozen dairy products require a freezing process before final storage. The refrigeration requirement at this stage is different from maintaining already frozen products. Product format, packaging, production flow and batch conditions should be considered during system design.

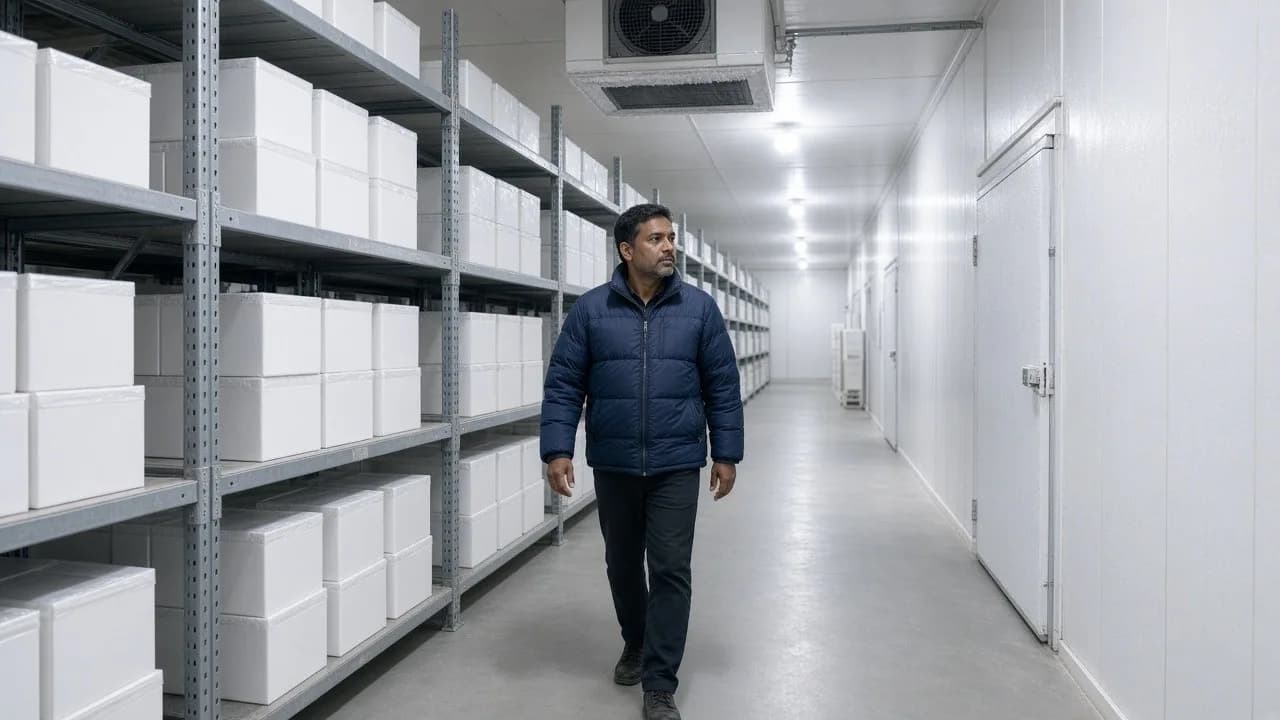

Frozen Storage
Once ice cream reaches its required frozen condition, it can move into a purpose designed freezer room. The room and refrigeration equipment should be selected specifically for low temperature duty. Storage planning must also consider carton arrangement, pallet density, airflow and regular door access.

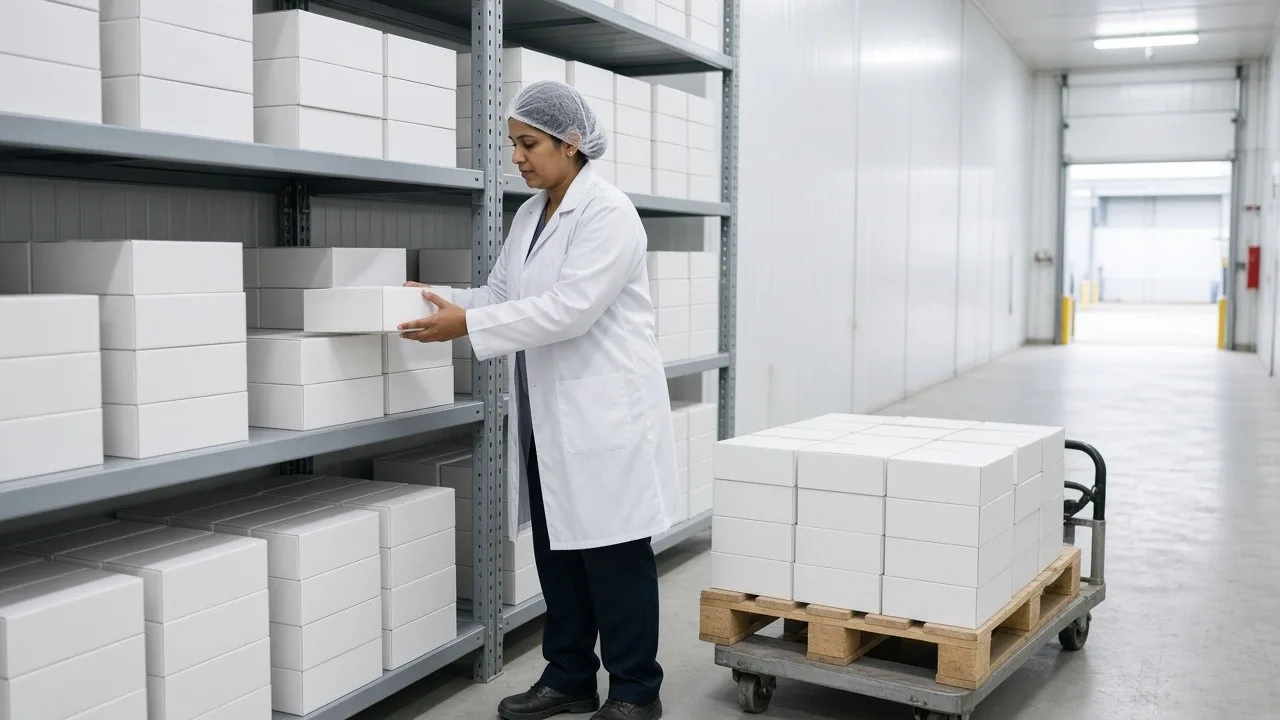

Order Picking
Picking introduces people, pallet movement and repeated door activity into refrigerated areas. High traffic periods can increase heat and moisture entering the room. The layout should allow efficient order preparation while reducing unnecessary exposure to surrounding warmer spaces.

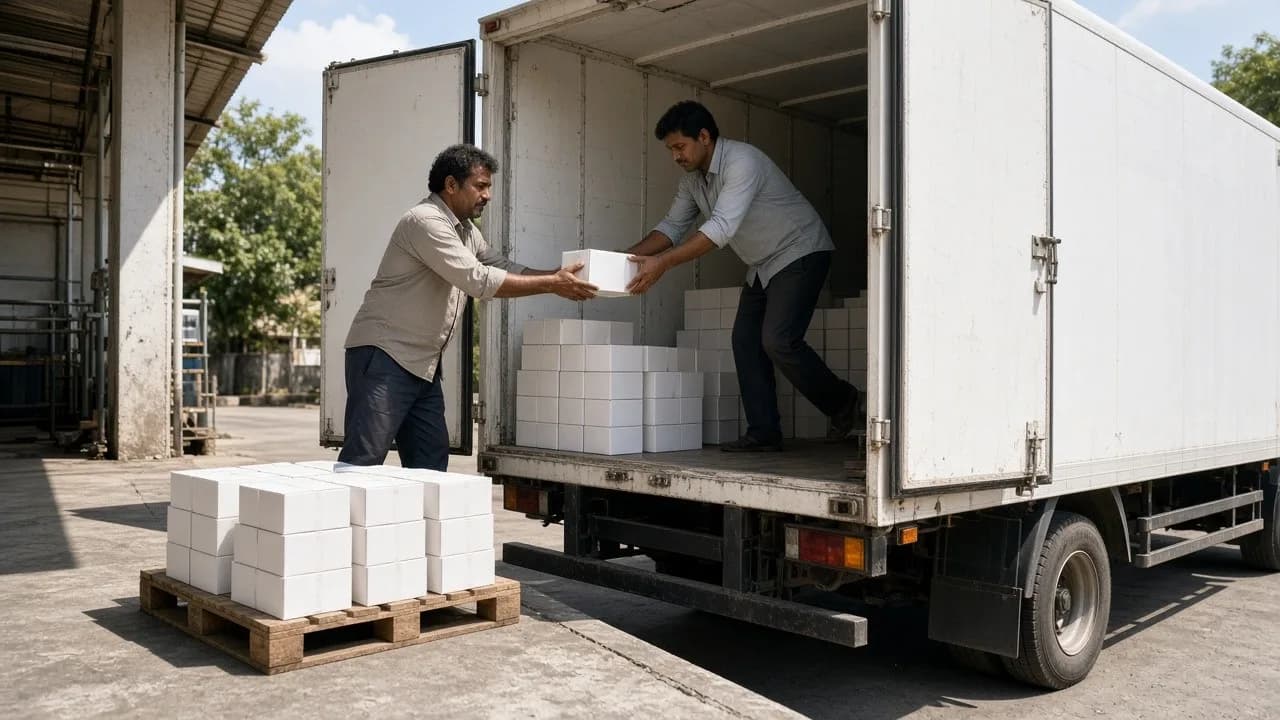

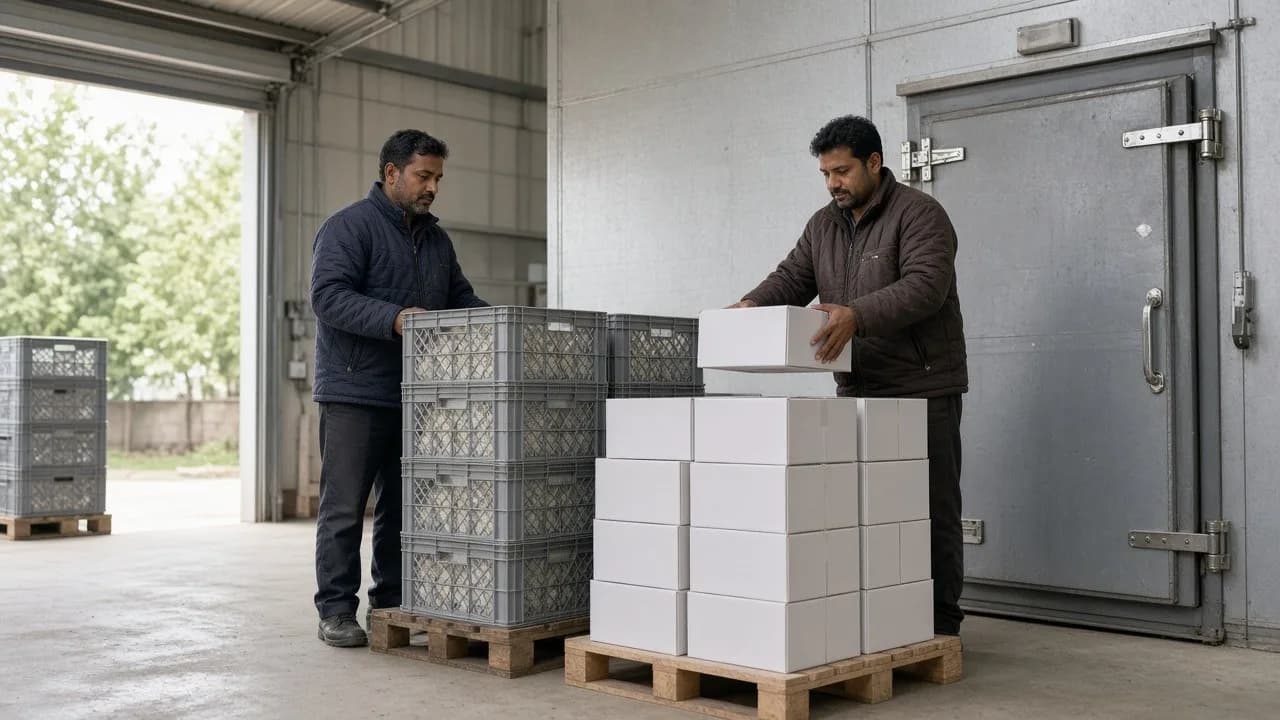

Dispatch
Chilled dairy products and frozen ice cream often pass through staging and loading areas before transportation. These movements should be organised to reduce unnecessary time outside controlled storage. Ante rooms and suitable door placement can support a more practical transition between storage and loading.
Refrigerated Transport
Temperature control may need to continue after products leave the facility. The dispatch area should support efficient transfer into suitable refrigerated vehicles. This helps connect the storage environment with the next stage of the dairy cold chain.
Swipe to move the product along the cold chain.
Storage by Product Requirement
Cold Storage Designed Around Dairy and Ice Cream Products
Dairy and ice cream products can have very different refrigeration requirements depending on ingredients, processing stage, packaging and distribution method. Uniref therefore starts with the actual product requirement before selecting the room and refrigeration equipment.

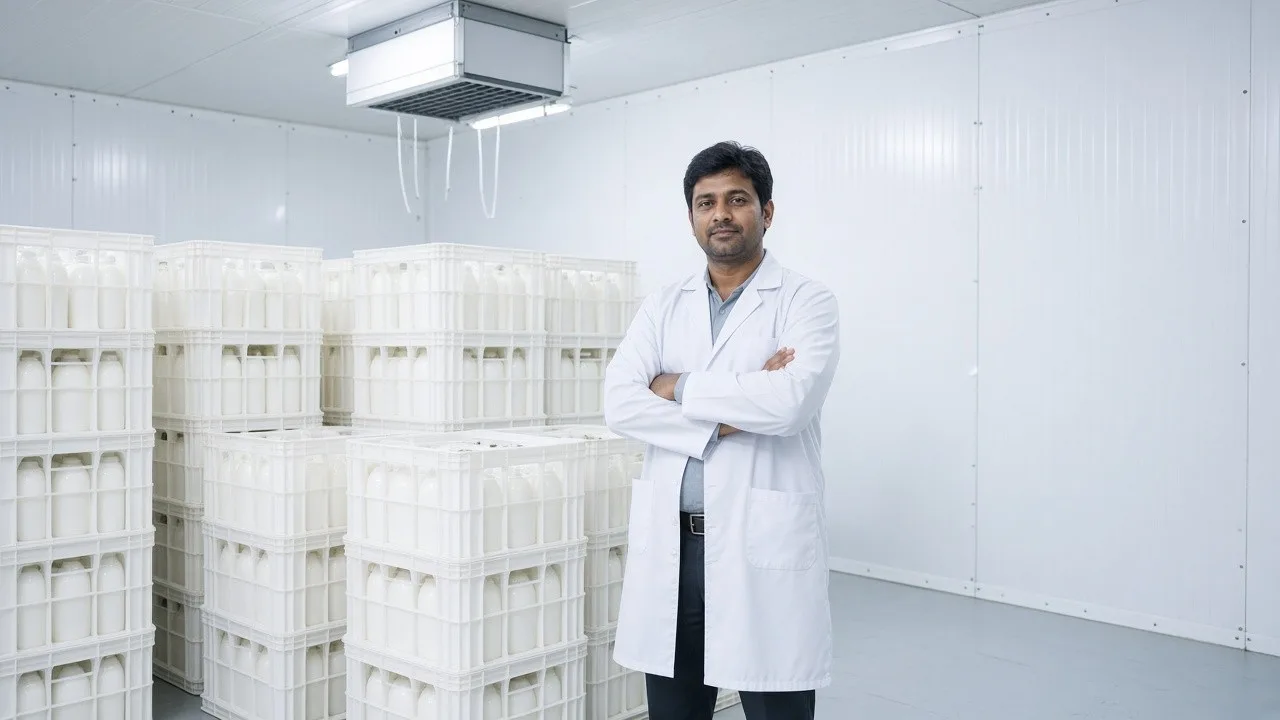

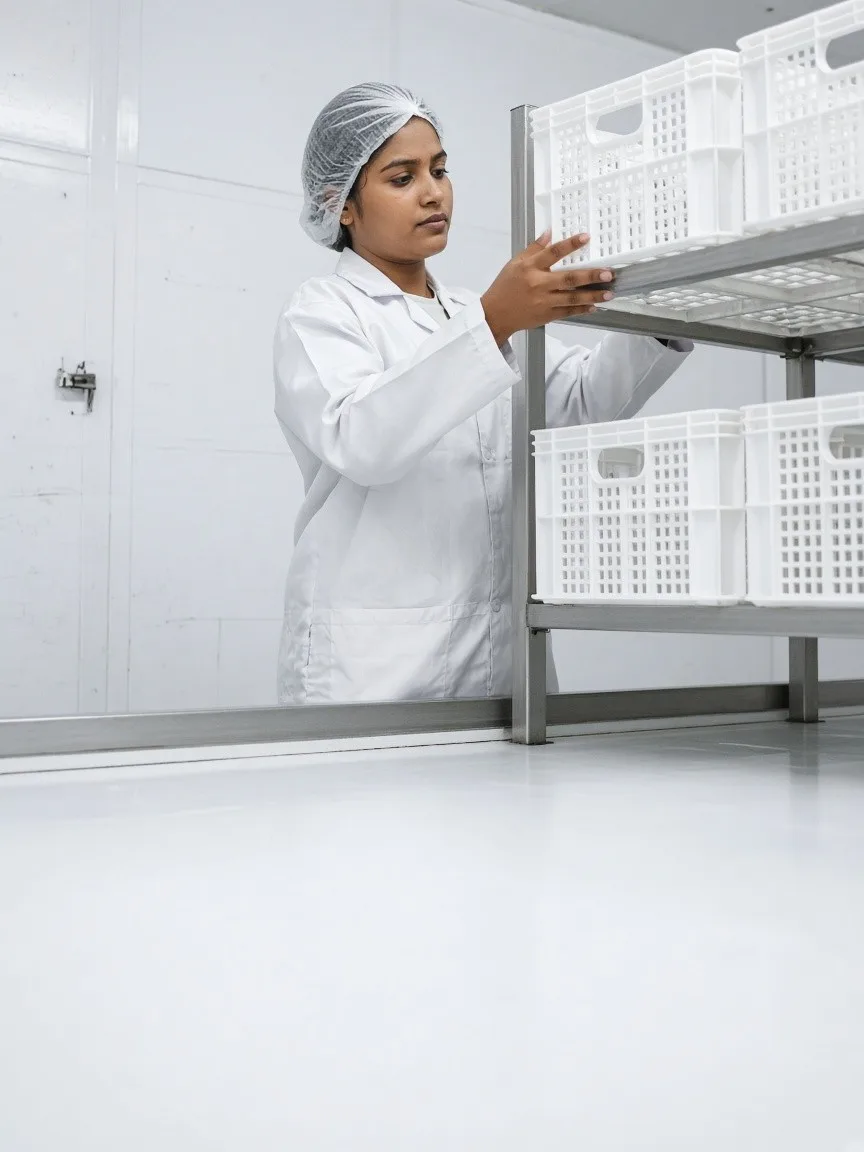

Milk and Dairy Beverages
- Typical storage condition
- Milk and dairy beverages can require controlled chilled conditions based on the product and production process. The final room condition should follow the approved product specification.
- Room type
- A chilled cold room is commonly used where products require refrigeration without freezing.
- Airflow
- Conditioned air should circulate around crates, cartons and pallets without being blocked by dense stacking.
- Product loading
- High turnover products should be positioned to support stock rotation and regular dispatch.
- Suggested configuration
- A chilled room with suitable insulation, refrigeration equipment, controls and practical loading access.
The product specification, packaging, incoming temperature, storage duration and production process determine the final room condition.
Inside the Refrigeration System
Engineering Behind Reliable Dairy and Ice Cream Storage
A dairy cold room or ice cream freezer is more than an insulated enclosure with cooling equipment. Panels, doors, refrigeration equipment, floors, piping, defrost and controls must work together according to the actual refrigeration duty.
01 / 11

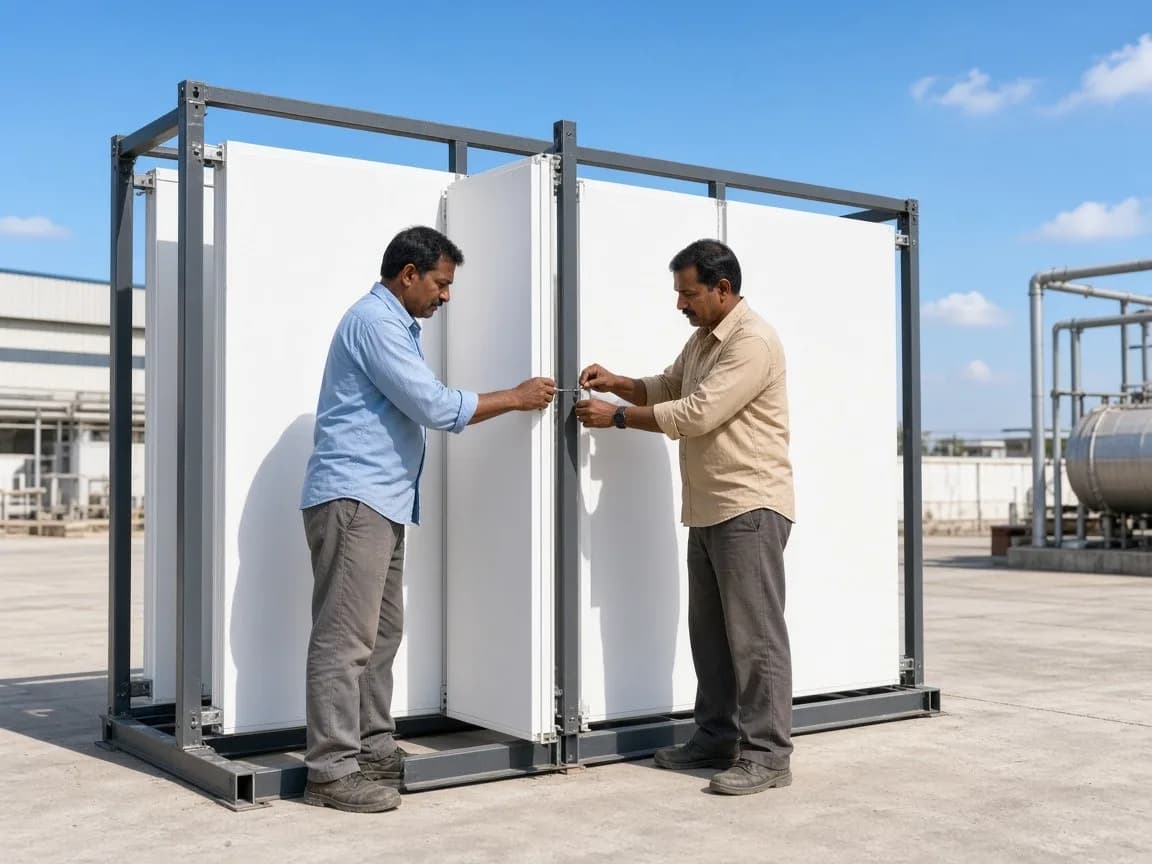

Insulated PUF and PIR Panels
01
Insulated PUF and PIR Panels
PUF panels and PIR panels create the insulated enclosure separating the refrigerated room from warmer surroundings. Panel selection and thickness should suit the required operating condition and room size.
02

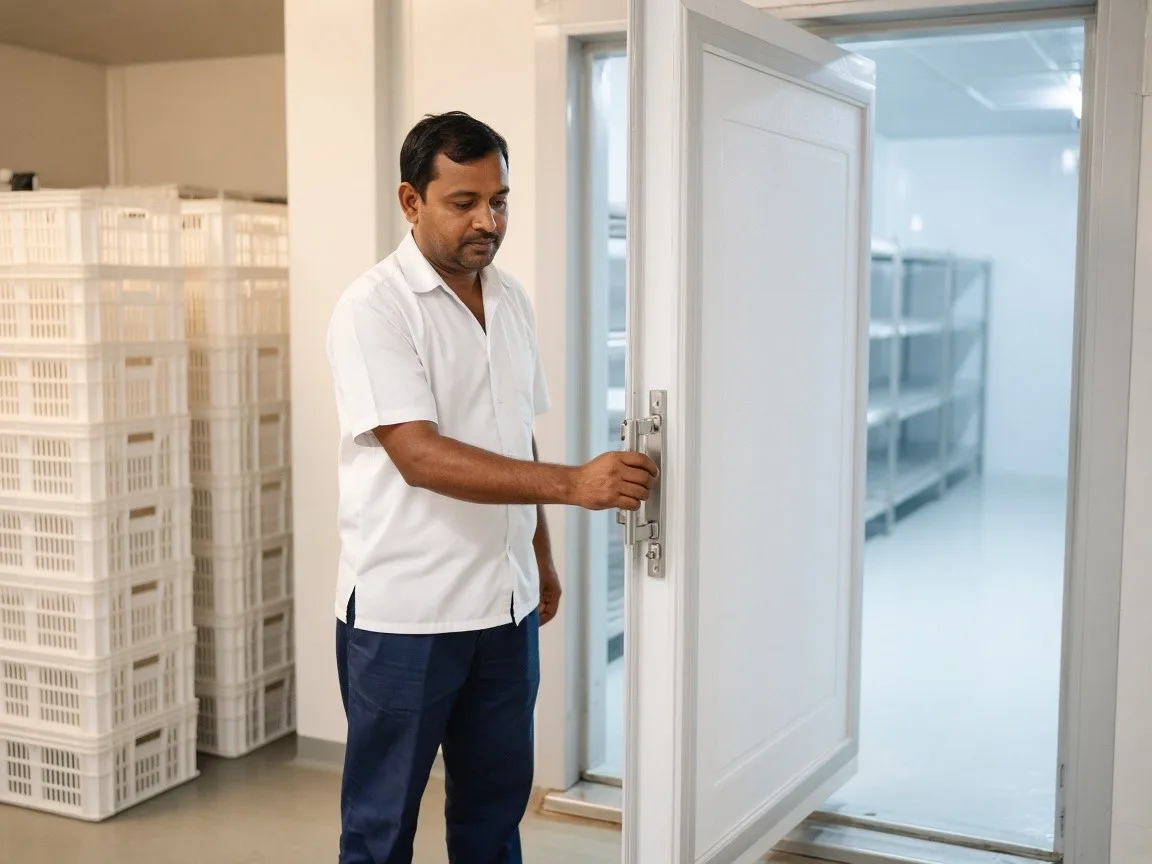

Cold Room Doors
Doors must support regular movement while limiting unwanted heat and moisture entry. Their dimensions should match the crates, pallets and handling equipment used inside the facility.
03

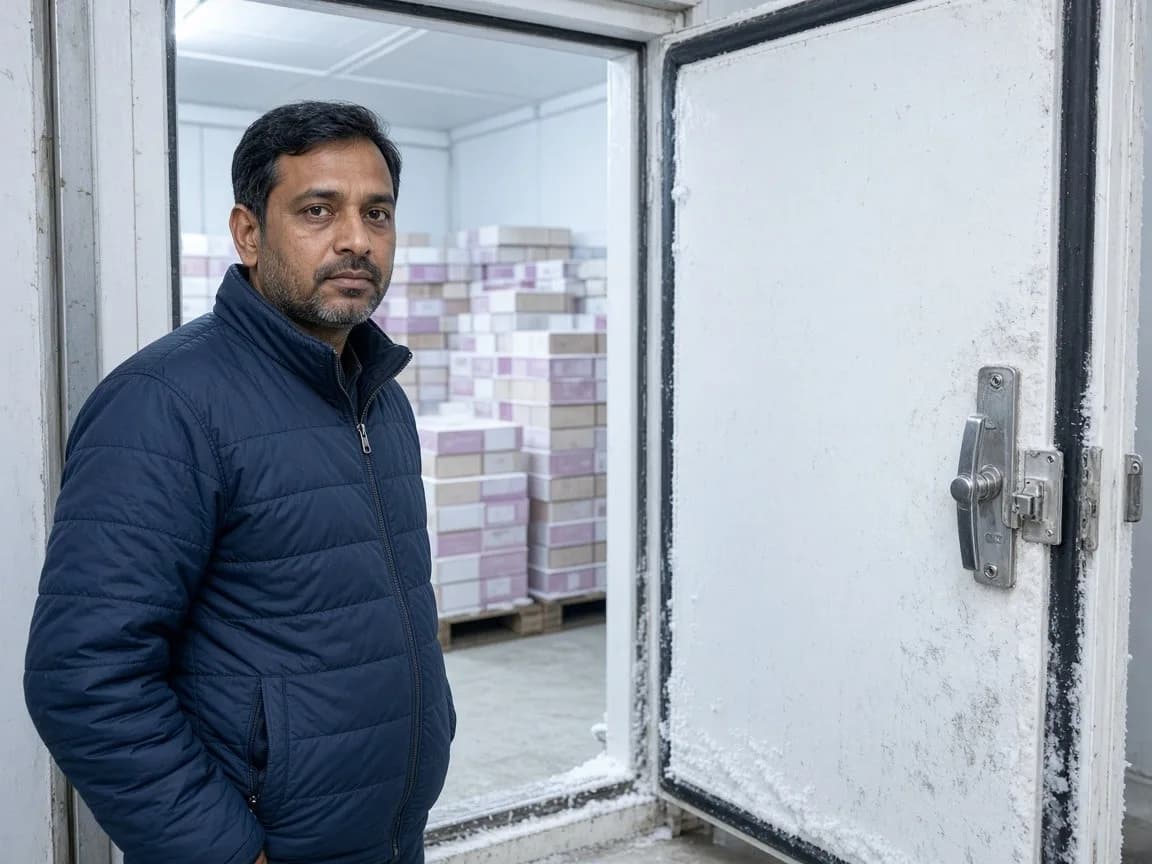

Freezer Grade Doors
Ice cream freezer rooms require doors designed for low temperature duty. Door construction and sealing should suit the operating conditions and frequency of use.
04

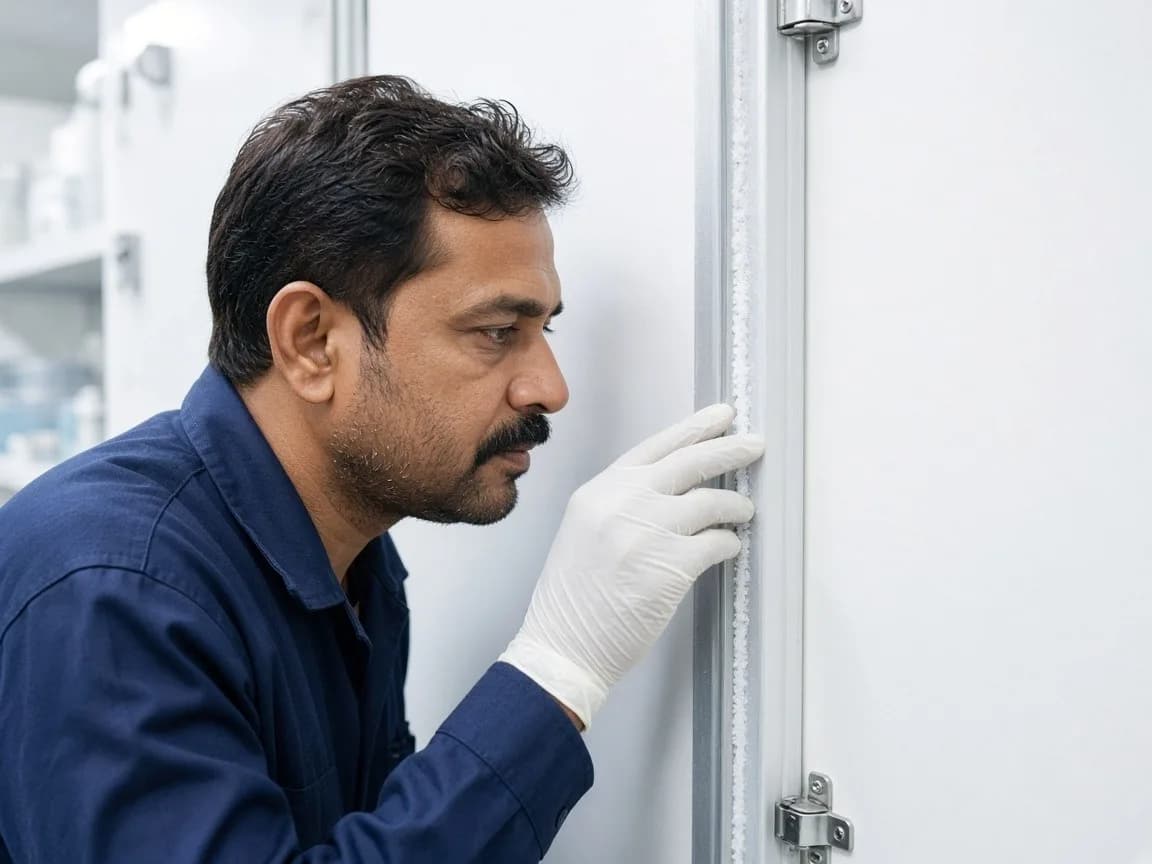

Door Frame Heating Where Required
Low temperature doors can require frame heating where freezing around the opening may occur. This requirement should be assessed during engineering rather than applied automatically.
05

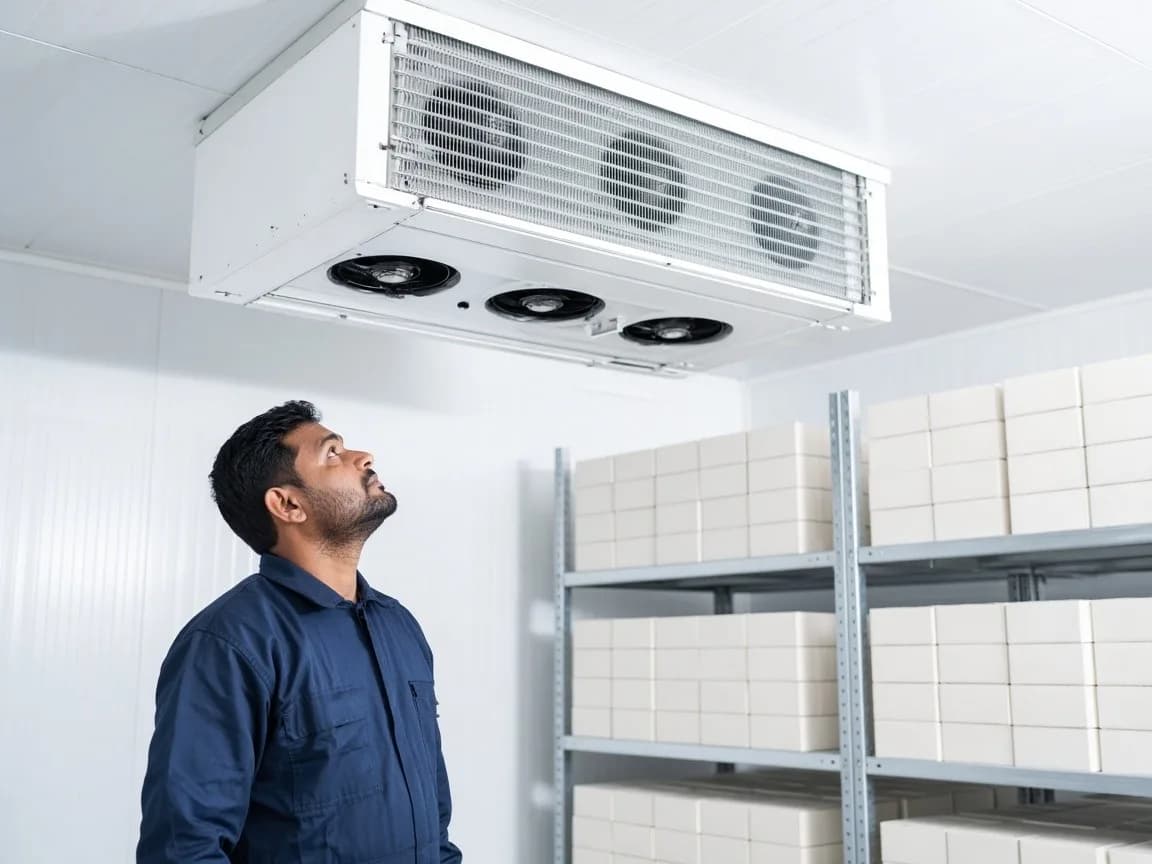

Evaporator
The evaporator removes heat and circulates conditioned air through the room. Capacity, fan arrangement and placement should suit the calculated refrigeration load and room geometry.
06
Condensing Unit and Compressor
The condensing unit and compressor must be selected for the required duty. A low temperature ice cream freezer places different demands on equipment compared with a normal chilled dairy room.
07

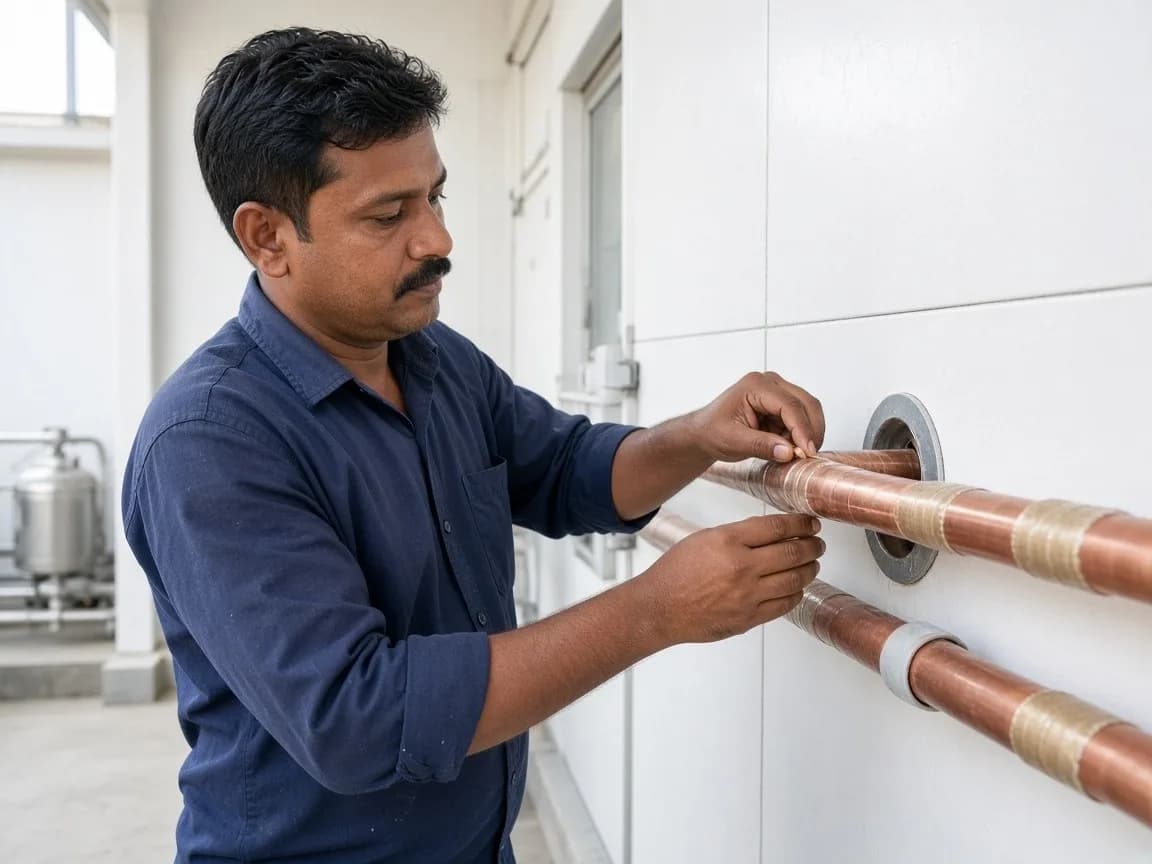

Refrigeration Piping
Correct piping supports refrigerant circulation between major components. Pipe sizing, routing and insulation should follow the approved refrigeration system design.
08

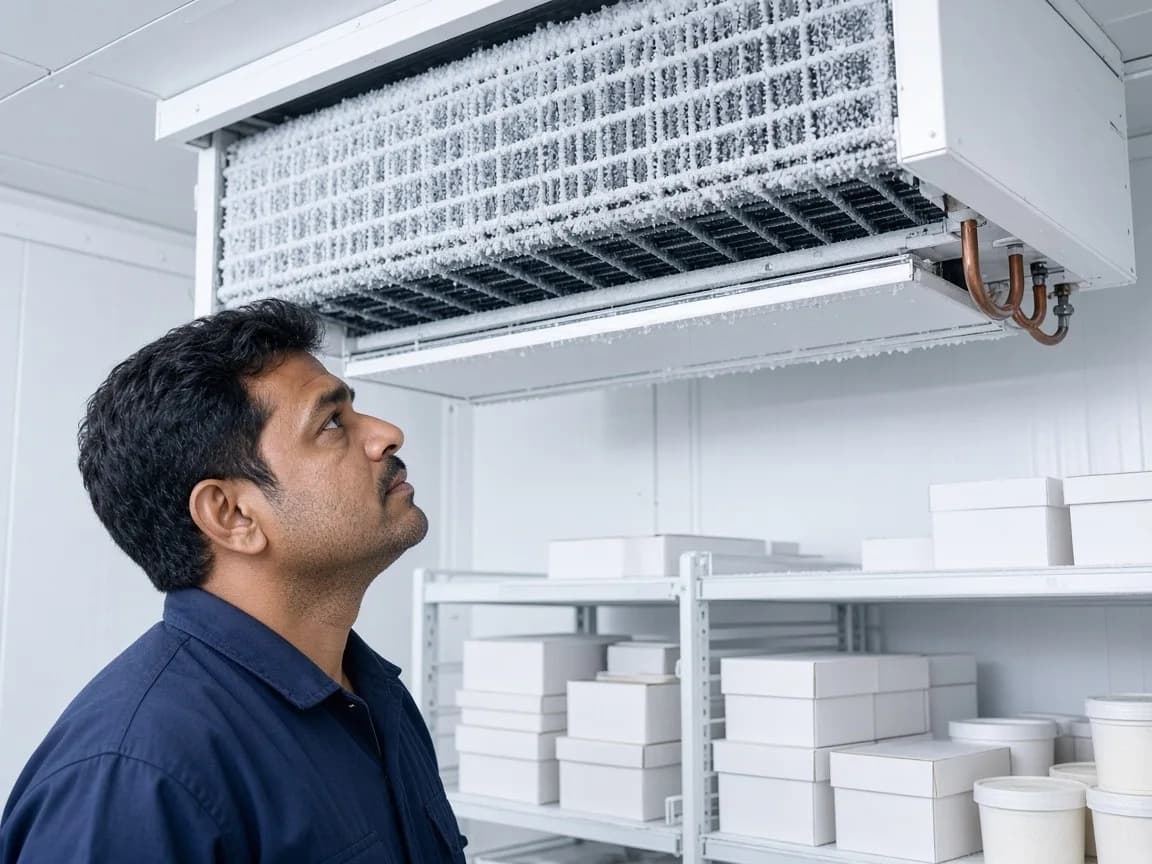

Defrost System
Moisture entering low temperature rooms can freeze on the evaporator coil. A suitable defrost strategy helps restore airflow and heat transfer when frost develops.
09

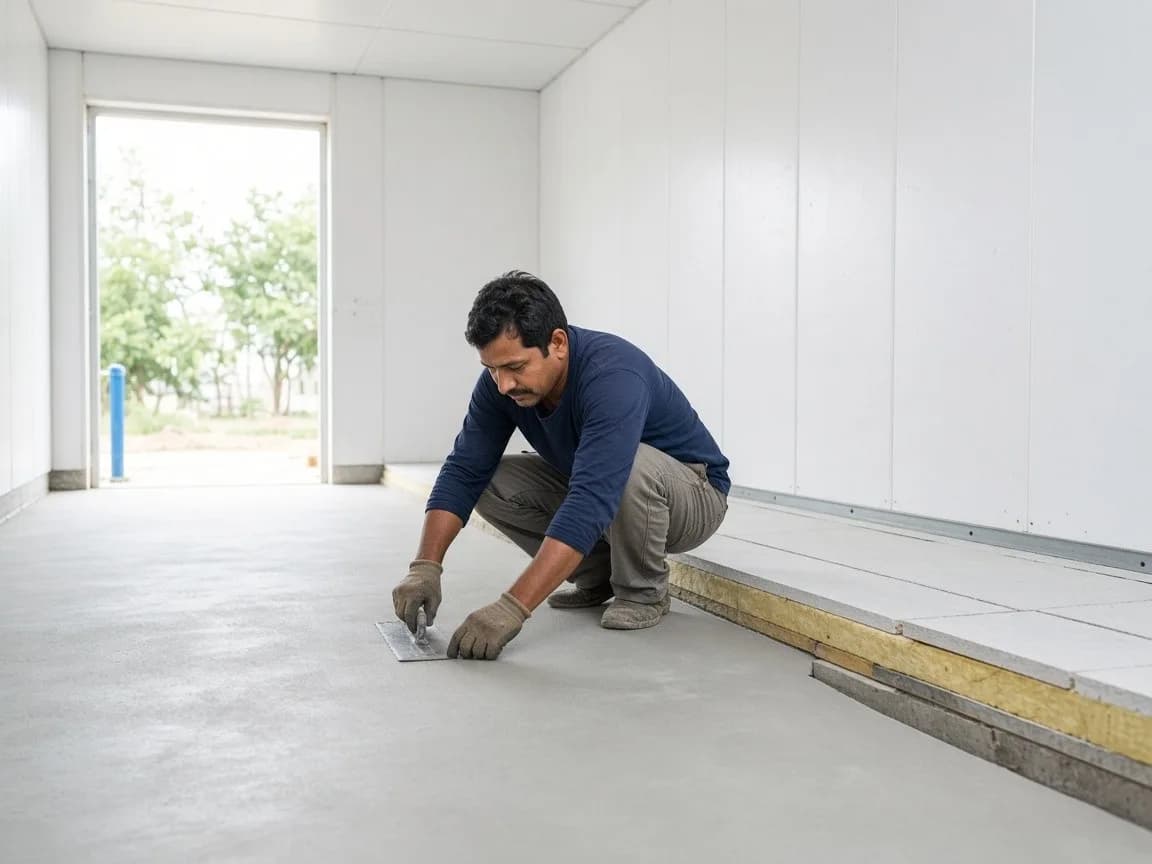

Floor Insulation
Freezer rooms may require floor insulation suited to low temperature operation. Floor requirements should be considered during civil and refrigeration planning.
10

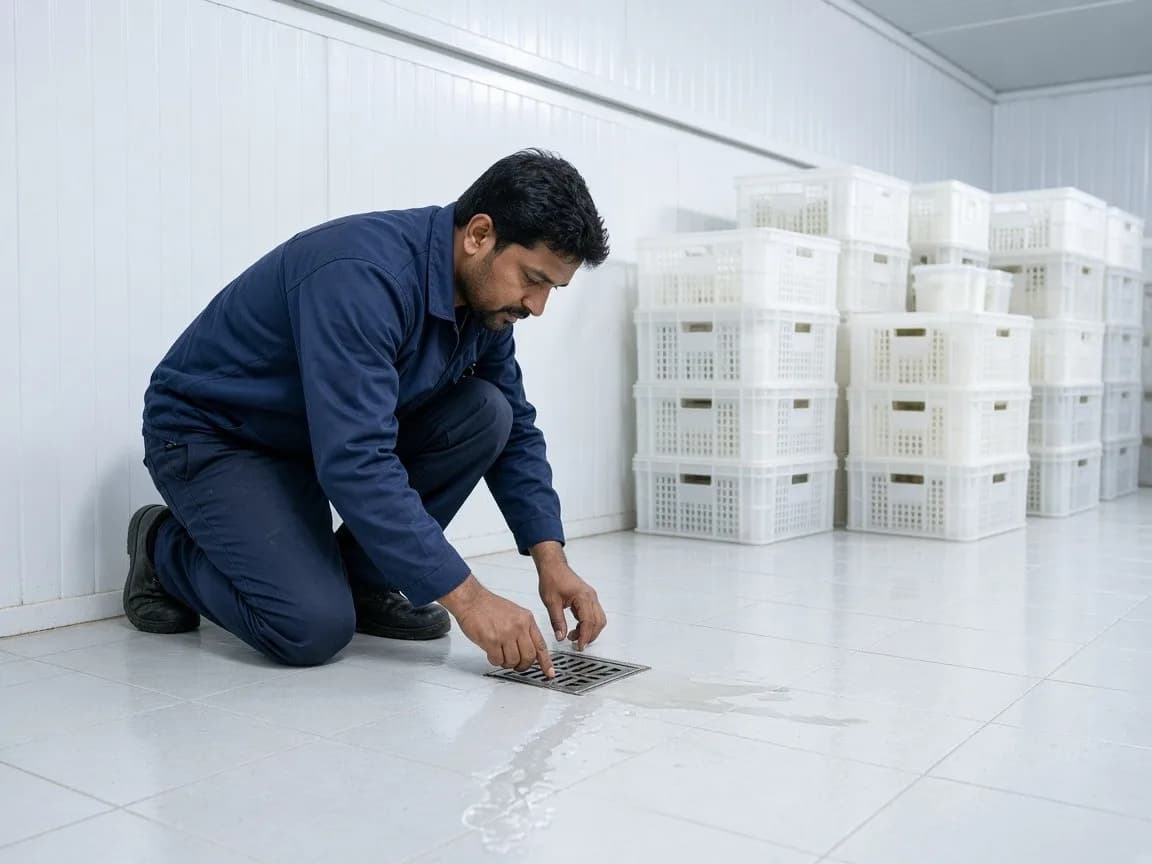

Drain Management
Water produced during defrost or cleaning must leave the refrigerated area without creating operational problems. Heated drains may be required where low temperature conditions call for them.
11

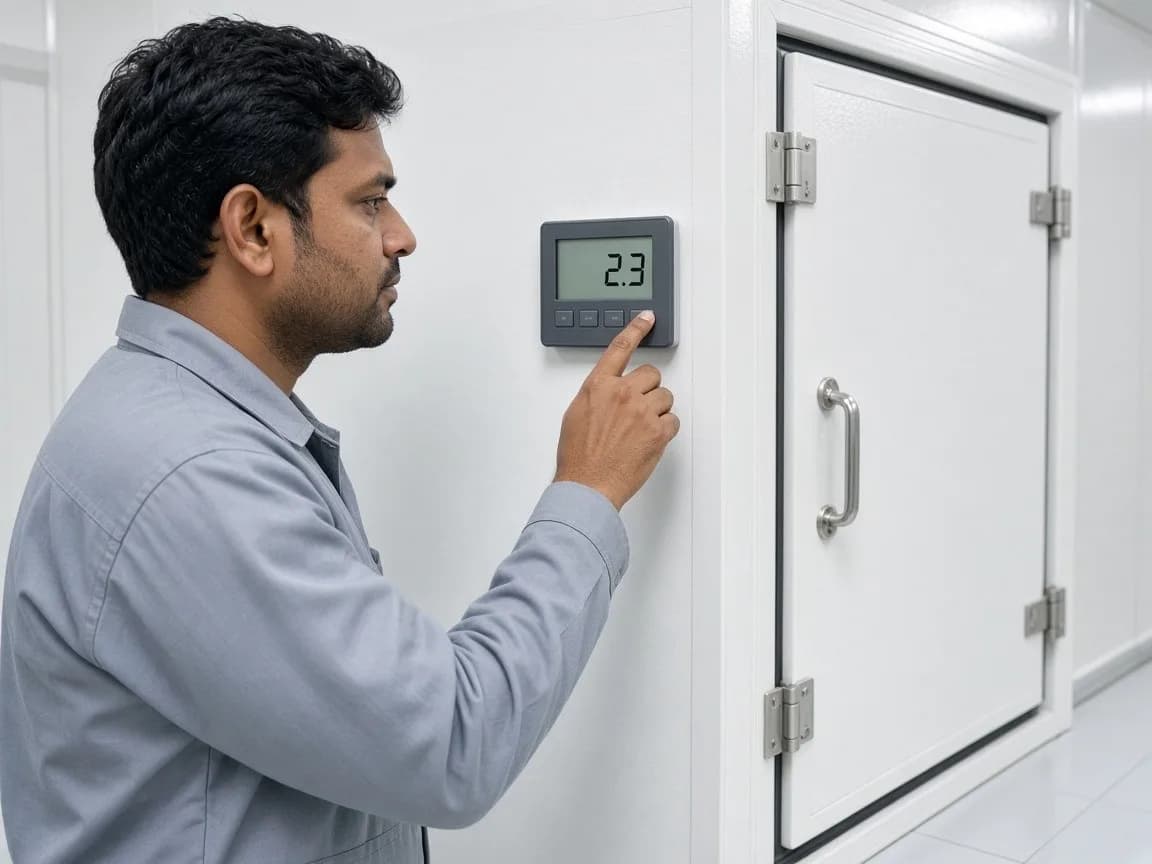

Temperature Controls, Sensors and Alarms
Controls help maintain the selected operating condition. Sensors and alarms provide operators with visibility when room conditions move outside configured limits.
Airflow Through the Product Load
Cooling Every Carton and Pallet, Not Just the Room
A room sensor can show the expected condition while products behind a restricted airflow path experience something different. Refrigeration design must therefore consider how conditioned air moves through cartons, crates, racks and pallets.

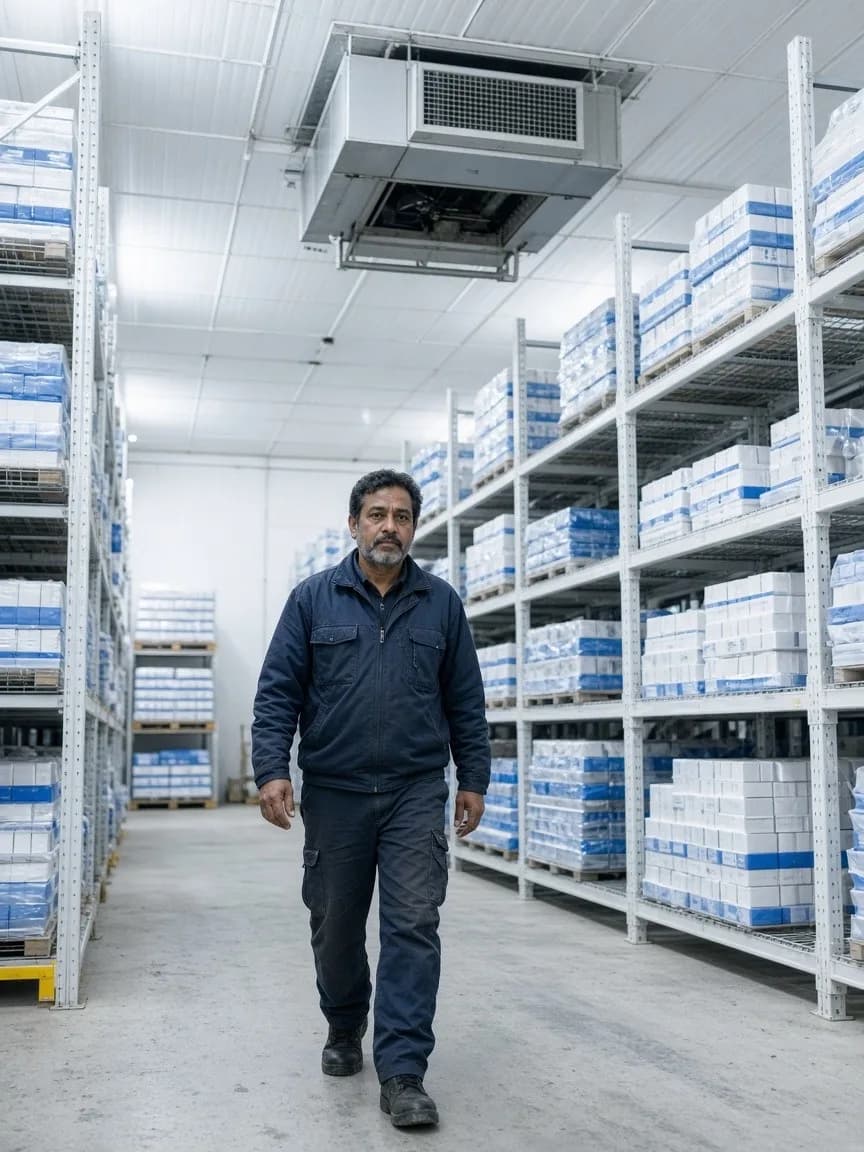

Pallet Spacing
Suitable spacing creates paths for conditioned air around stored products. Pallets pushed tightly together can restrict circulation.
Evaporator Placement
The evaporator should be positioned with room shape, racking and expected product load in mind. Poor placement can leave some areas with limited air movement.
Air Throw and Return
Conditioned air needs a clear route from the evaporator across the room and back toward the return side. Both directions matter during storage planning.
Blocked Airflow
Tall stacks, cartons and unsuitable rack positions can interrupt circulation. Storage layout should identify these risks before regular operations begin.
Loading Pattern
The way products enter, leave and occupy the room changes available airflow paths. Refrigeration planning should consider the normal operating load rather than only an empty room.
Hot Spots
Areas behind dense loads, near doors or in corners can behave differently from open storage areas. These locations should be considered when planning sensors and airflow.
Rack Layout
Rack height, orientation and depth influence air movement. Storage planning should therefore be coordinated with evaporator selection and room layout.
Door Movement
Door openings affect conditions near loading and picking zones. The layout should support quick product movement with limited unnecessary open time.
Built for Local Operating Reality
Designed for Indian Operating Conditions
Dairy and ice cream cold rooms in India may operate through high outdoor temperatures, frequent loading activity and long production schedules. Refrigeration design should consider local operating conditions together with the required product environment.

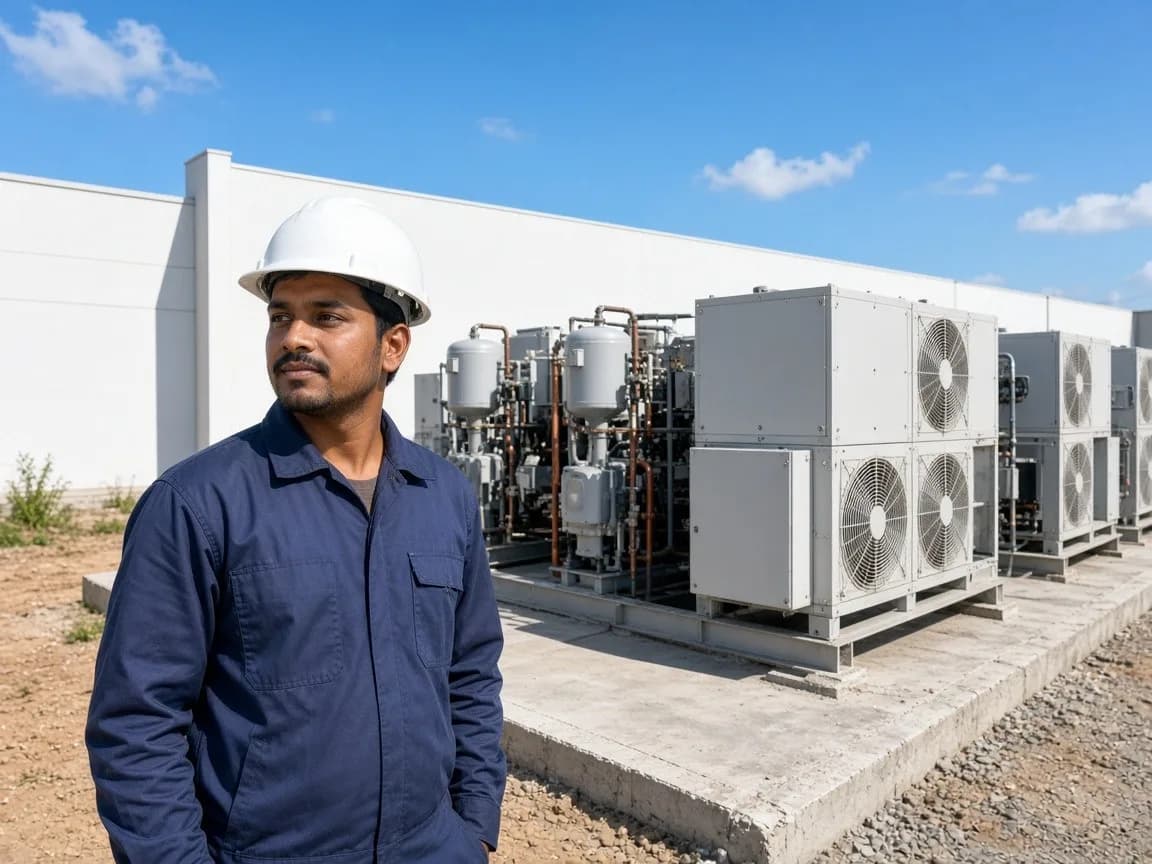

Outdoor and plant side conditions
The refrigeration system must reject the heat removed from the room while operating under the ambient conditions expected at the project site.
Dairy and frozen storage conditions
Inside the room, insulation, refrigeration equipment and airflow work together to maintain the product specific storage condition.
Any door or temperature animation shown on the page is only a visual representation and does not indicate a measured recovery time.

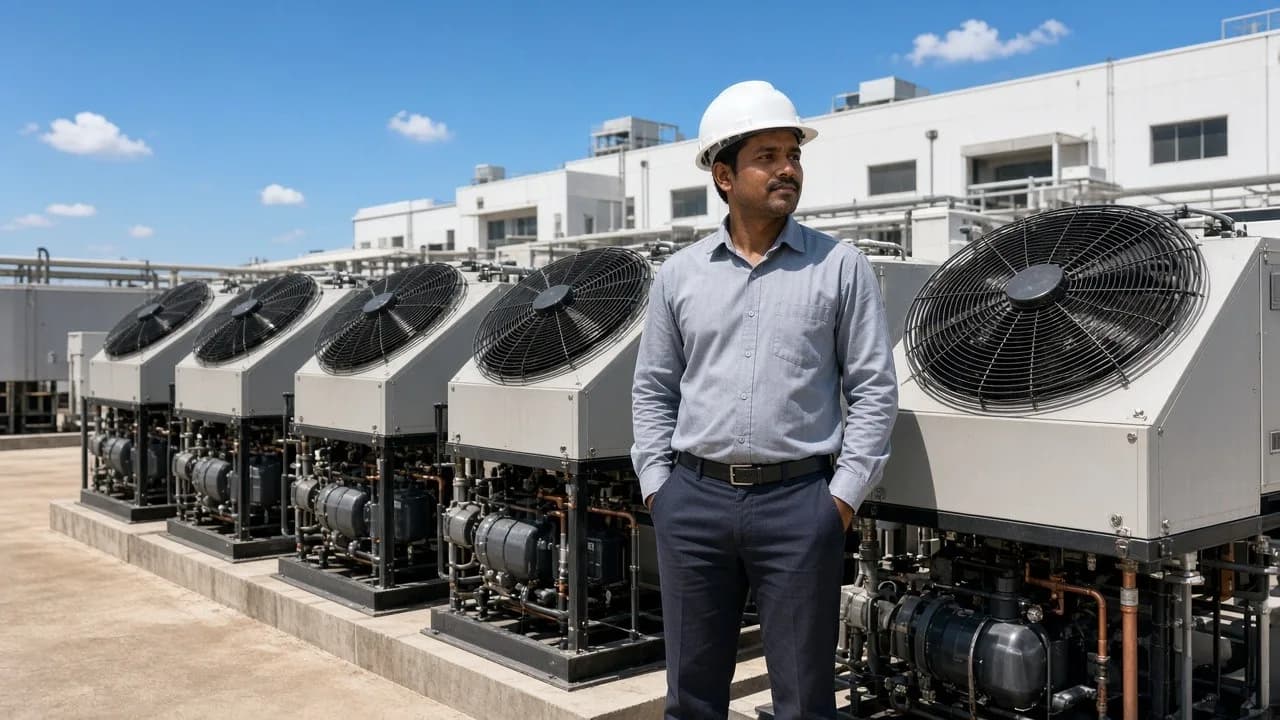

High Outdoor Ambient
High outdoor temperatures can increase the load placed on refrigeration equipment. Equipment selection should therefore consider the conditions expected at the installation site.
Frequent Loading and Unloading
Dairy distribution facilities may open cold room doors repeatedly during receiving, picking and dispatch. Door size and traffic flow should reflect this activity.
Long Compressor Hours
Processing and storage operations may require refrigeration for extended periods. Components should be selected for the calculated duty and expected operating schedule.
Indian Warehouse Layout
Existing columns, docks, ceiling height, racks and movement paths can influence room design. Engineering should fit the refrigeration system into the actual facility.
Seasonal Heat
Ambient conditions can vary across seasons. Refrigeration planning should consider the relevant design conditions for the project location.
Distribution Traffic
Fast moving dairy products can create concentrated periods of order picking and loading. Ante rooms and practical movement routes can help reduce exposure to warmer surrounding air.
Dust and Industrial Conditions
Equipment installed around processing and warehouse environments needs suitable placement and service access. Site conditions should be reviewed before finalising equipment locations.
Production Activity
Dairy and ice cream plants can contain processing equipment and people that add heat to controlled areas. These loads should be considered where they affect refrigeration duty.
Plan Your Requirement
What Does Your Dairy and Ice Cream Facility Need?
The planner helps identify which type of refrigerated room may suit your operation. It suggests a room category based on the product and process requirement but does not calculate a project price.
01 / 06
Why Work With Uniref
Cold Room Expertise Built Around Your Dairy Operation
Uniref designs, manufactures, supplies, installs and commissions custom cold rooms and refrigeration systems. Panel manufacturing is carried out in Bengaluru and Mumbai, engineering coordination is from Jaipur, and installation is available across India.
Product Specific Design
The room starts with the dairy or ice cream product requirement rather than a standard equipment package. Product condition, packaging, storage volume, access and workflow are considered during planning.
Chilled and Frozen Engineering
Chilled dairy storage and low temperature ice cream holding perform different duties. Uniref considers insulation, doors, evaporators, equipment, floors and defrost according to the application.
Complete System Integration
A cold room includes more than insulated panels. Uniref coordinates the enclosure, refrigeration equipment, piping, controls and installation as one complete solution.
Indian Operating Experience
The design process considers local ambient conditions, warehouse layouts and the way Indian dairy businesses receive, process, store and dispatch products.
Flexible Facility Planning
Dairy and ice cream businesses may require chilled rooms, freezer rooms, ingredient storage and transition areas within one facility. These spaces can be planned around the wider production flow.
After Sales Support
Refrigeration systems require inspection, maintenance and technical support throughout their operating life. Uniref provides after sales assistance according to the installed system and requirement.
Dairy and Ice Cream Cold Room FAQs
The correct room depends on the dairy product and required storage condition. Many products use chilled storage, while frozen dairy products require freezer rooms. The final specification should come from the actual product and process requirement.
Discuss Your Dairy Refrigeration Project
Planning Cold Storage for Your Dairy or Ice Cream Business?
Share your dairy or ice cream product, required storage condition, expected capacity, incoming product condition and project location with Uniref. Our team can review the requirement and recommend a suitable chilled room, freezer room, blast freezer or multi chamber refrigeration configuration.
Discuss Your Dairy Refrigeration Project
Planning Cold Storage for Your Dairy or Ice Cream Business?
Share your dairy or ice cream product, required storage condition, expected capacity, incoming product condition and project location with Uniref. Our team can review the requirement and recommend a suitable chilled room, freezer room, blast freezer or multi chamber refrigeration configuration.
